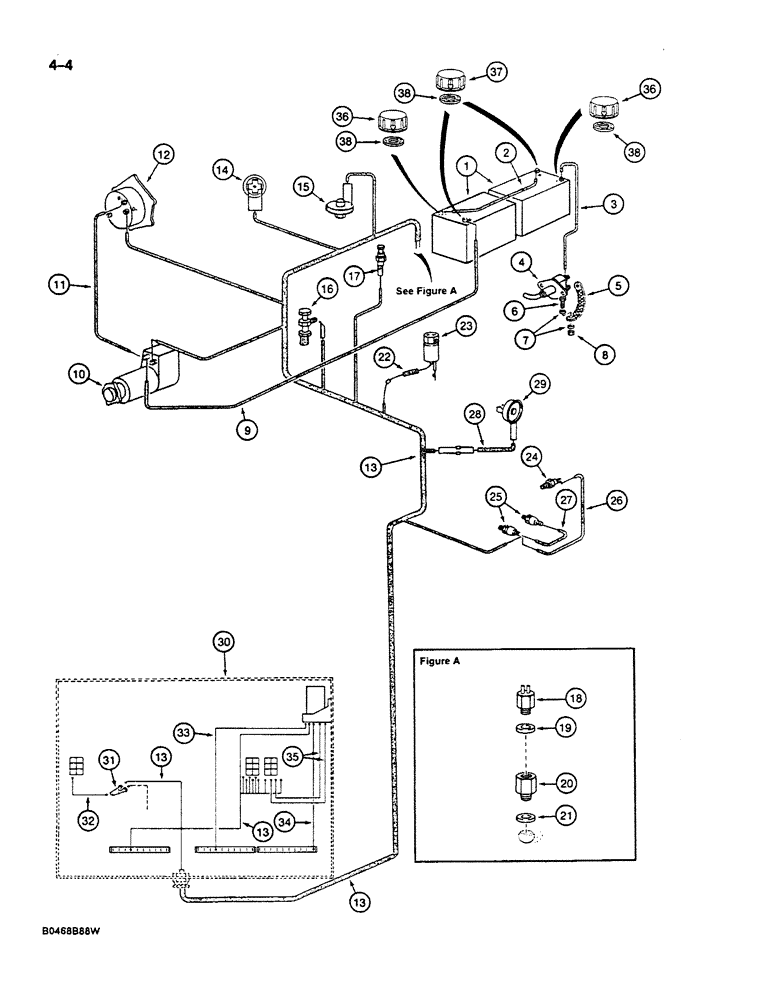

Запчасти Case 125B (4-04) - ENGINE ELECTRICAL SYSTEM, P.I.N. 74880 THROUGH 74963, 21801 THRU 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BATTERY - electrical, see Figure 4-54

2шт.

2

P8547245

CABLE

-, Serial Range: battery-battery

1шт.

3

P7447208

CABLE

- battery to battery disconnect switch

1шт.

4

REF

INSTRUCTION

SWITCH - battery disconnect, see Figure 4-54

1шт.

5

P41824

NEG BATTERY CABLE

STRAP - ground, battery disconnect switch

1шт.

6

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- ground strap Hex, M10 x 35, 8.8, Full Thd

1шт.

7

P3528795

WASHER

SPACER - bolt

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

1шт.

9

P14047273

CABLE -, Serial Range: battery-starter

1шт.

10

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-6 and 4-8, for mounting parts see Figure 2-14

1шт.

11

P7447277

CABLE

WIRE -, Serial Range: starter-alternator

1шт.

12

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-10, for mounting parts see Figure 2-14

1шт.

13

P9547293

HARNESS

- engine

1шт.

14

REF

INSTRUCTION

CONNECTOR - belt warning switch, for warning switch and related parts, see Figure 2-14

1шт.

15

REF

INSTRUCTION

SENDER - air filter restriction indicator, see Figures 2-2 and 2-4 for correct sender and related parts

1шт.

16

P41506

DEUTZ PART

PLUG - preheater

1шт.

17

P641516

IGNITION SWITCH

THERMOSTAT - engine temperature

1шт.

18

P1241856

SWITCH

SENDER - engine oil pressure, see Figure 2-14

1шт.

19

P344419

WASHER, SEALING

SEAL -, Serial Range: sender-adapter

1шт.

20

P637315

RESTRICTOR

ADAPTER -, Serial Range: sender-engine

1шт.

21

P28424

COMPOSITE SEAL

SEAL - adapter

1шт.

22

P8647250

CABLE

HARNESS - to preheater switch

1шт.

23

P2143357

SOLENOID

SWITCH - preheater

1шт.

24

P641661

PROBE

SENDER - hydraulic oil temperature

1шт.

25

P841828

ELECTRO/HYD CONTACT

SENDER - hydraulic oil restriction indicator

2шт.

26

P4847221

CABLE

WIRE - jumper, connects Ref. 24 and 25

1шт.

27

P7247229

CABLE

WIRE - jumper, connects senders, Ref. 25

1шт.

28

P8647259

CABLE

HARNESS - to low fuel level sender

1шт.

29

P2141665

GAUGE

SENDER - low fuel level

1шт.

30

REF

INSTRUCTION

BOX - electrical, see Figures 4-68 and 4-70

1шт.

31

REF

INSTRUCTION

CONNECTOR - electrical, two wire, see Figure 4-24

1шт.

32

P8647280

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

33

P9547270

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

34

P9547269

ELECTRICAL WIRE

WIRE - ground, electrical box

1шт.

35

REF

INSTRUCTION

WIRE - connector, electrical box, 11-7/8" (300 mm) long, cut from P31253

2шт.

36

P2340451

DOOR COVER

CAP - terminal protector, black, negative post

2шт.

37

P2340452

DOOR COVER

CAP - terminal protector, red, positive post

2шт.

38

P2340487

HOLE PLUG BUTTON

WASHER - treated, corrosion protective

4шт.
