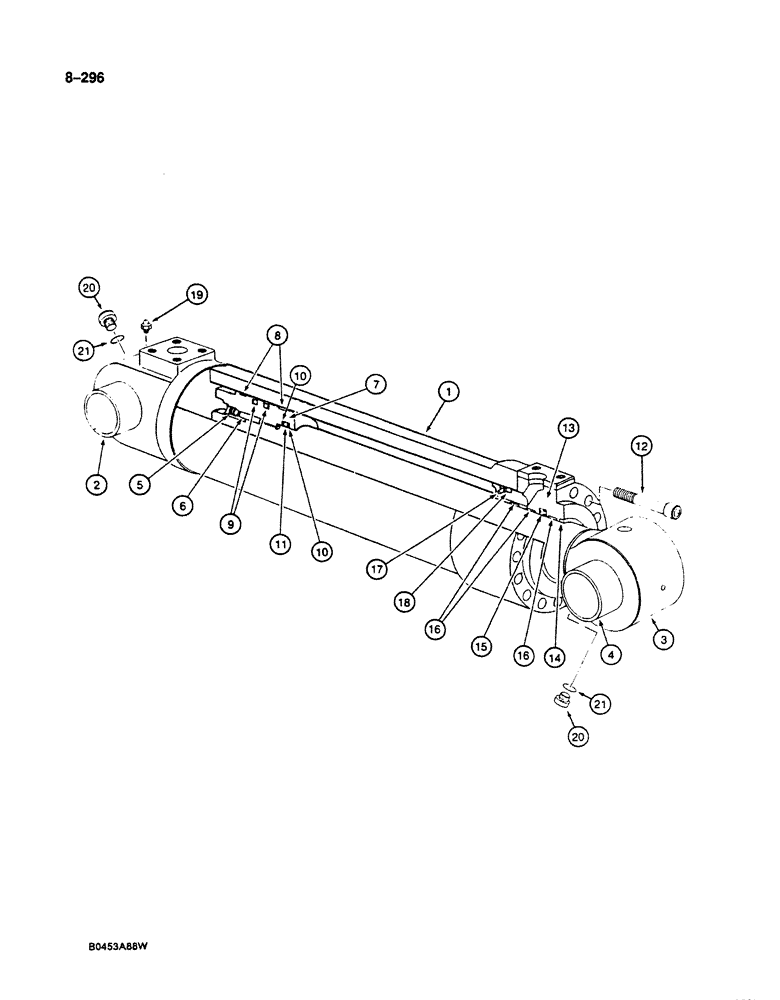

Запчасти Case 125B (8-296) - ARM CYLINDER - P6546738, IF USED, CYLINDERS WITH LETTER "M" IDENTIFICATION (08) - HYDRAULICS

P6546738

CYLINDER

ASSEMBLY - arm, cylinders with letter "M" identification (Order P8346710, see Figure 8-302), Includes: Ref. 1 - 19

1шт.

Check cylinder tube for proper identification letter following cylinder part number.

1шт.

P1052479

JACK BODY

TUBE ASSEMBLY - cylinder, no longer available order P1652401 tube assembly and reference numbers 20 and 21, Includes: Ref. 1 and 2

1шт.

P1652401

JACK BODY

TUBE ASSEMBLY - cylinder, replaces P1052479 tube assembly, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1728699

BUSHING

- tube

1шт.

P6849478

PISTON ROD

ROD ASSEMBLY - piston, no longer available order P8449458 rod assembly and Refs. number 20 and 21, Includes: Ref. 3 and 4

1шт.

P8449458

PISTON ROD

ROD ASSEMBLY - piston, replaces P6849478 rod assembly, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1728699

BUSHING

- piston rod

1шт.

5

P1432953

SCREW

SET SCREW - pin

1шт.

Part of Seal Kit, P/N P4249678

1шт.

6

P827733

PIN

- locking

1шт.

Part of Seal Kit, P/N P4249678

1шт.

7

P1729168

PISTON - cylinder

1шт.

8

P6846053

BAND

RING - wear

2шт.

Part of Seal Kit, P/N P4249678

1шт.

9

P646038

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of Seal Kit, P/N P4249678

1шт.

10

P1846069

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

Part of Seal Kit, P/N P4249678

1шт.

11

P30347

O-RING

- piston rod

1шт.

Part of Seal Kit, P/N P4249678

1шт.

12

P732922

SCREW

BOLT - gland

16шт.

13

P8130108

CYLINDER END CAP

GLAND - cylinder

1шт.

14

P246073

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N P4249678

1шт.

15

P1351219

SEAL

U-CUP SEAL - piston rod

1шт.

Part of Seal Kit, P/N P4249678

1шт.

16

P2046091

SEGMENT

RING - wear

3шт.

Part of Seal Kit, P/N P4249678

1шт.

17

P1730426

O-RING

- gland

1шт.

Part of Seal Kit, P/N P4249678

1шт.

18

P6846017

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N P4249678

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

20

P1437456

PLUG

- cylinder, if used, Includes: Ref. 21

1-2шт.

21

P945295

SEAL

O-RING - plug

1шт.

P4249678

KIT

- seal, includes Refs. 5, 6, 8 thru 11 and 14 thru 18

1шт.
