Артикул
Название
Примечание
Количество

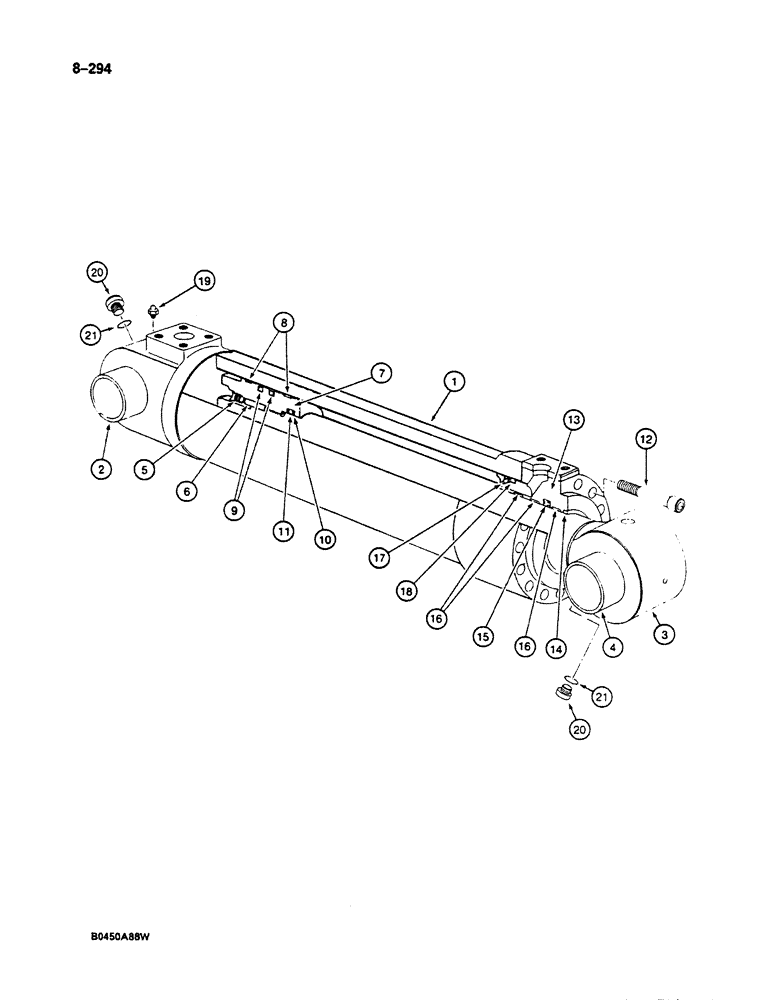

P6546738
CYLINDER
ASSEMBLY - arm, cylinders with letter "I" through "L" identification, (Order P8346710, see Figure 8-302), Includes: Ref. 1 - 19
1шт.
Check cylinder tube for proper identification letter following cylinder part number.
1шт.
P1052479
JACK BODY
TUBE ASSEMBLY - cylinder, no longer available order P1652401 tube assembly, Includes: Ref. 20 and 21, Includes: Ref. 1 and 2
1шт.
P1652401
JACK BODY
TUBE ASSEMBLY - cylinder, replaces P1052479 tube assembly, Includes: Ref. 1 and 2
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
P1728699
BUSHING
- tube
1шт.
P6849478
PISTON ROD
ROD ASSEMBLY - piston, no longer available order P8449458 rod assembly and Ref. number 20 and 21, Includes: Ref. 3 and 4
1шт.
P8449458
PISTON ROD
ROD ASSEMBLY - piston, replaces P6849478 rod assembly, Includes: Ref. 3 and 4
1шт.
3
NSS
NOT SOLD SEPARAT
ROD - piston
1шт.
4
P1728699
BUSHING
- piston rod
1шт.
5
P1432953
SCREW
SET SCREW - pin
1шт.
Part of Seal Kit, P/N P4249678
1шт.
6
P827733
PIN
- locking
1шт.
Part of Seal Kit, P/N P4249678
1шт.
7
P3729168
PISTON
- cylinder
1шт.
8
P6846053
BAND
RING - wear
2шт.
Part of Seal Kit, P/N P4249678
1шт.
9
P646038
SPECIAL MAT. SEAL
SEAL - piston
2шт.
Part of Seal Kit, P/N P4249678
1шт.
10
P1846069
BACK-UP RING
BACKUP RING - piston rod O-ring
2шт.
Part of Seal Kit, P/N P4249678
1шт.
11
P30347
O-RING
- piston rod
1шт.
Part of Seal Kit, P/N P4249678
1шт.
12
P732922
SCREW
BOLT - gland
16шт.
13
P8130108
CYLINDER END CAP
GLAND - cylinder
1шт.
14
P246073
WIPER SEAL
WIPER - piston rod
1шт.
Part of Seal Kit, P/N P4249678
1шт.
15
P1351219
SEAL
U-CUP SEAL - piston rod
1шт.
Part of Seal Kit, P/N P4249678
1шт.
16
P2046091
SEGMENT
RING - wear
3шт.
Part of Seal Kit, P/N P4249678
1шт.
17
P1730426
O-RING
- gland
1шт.
Part of Seal Kit, P/N P4249678
1шт.
18
P6846017
BACK-UP RING
BACKUP RING - gland O-ring
1шт.
Part of Seal Kit, P/N P4249678
1шт.
19
J45801
LUBE NIPPLE,M8 x 1.25
- lubrication M8 x 1.25
2шт.
20
P1437456
PLUG
- cylinder, if used, Includes: Ref. 21
1-2шт.
21
P945295
SEAL
O-RING - plug
1шт.
P4249678
KIT
- seal, includes Refs. 5, 6, 8 thru 11 and 14 thru 18
1шт.
Выбрано товаров: 39
