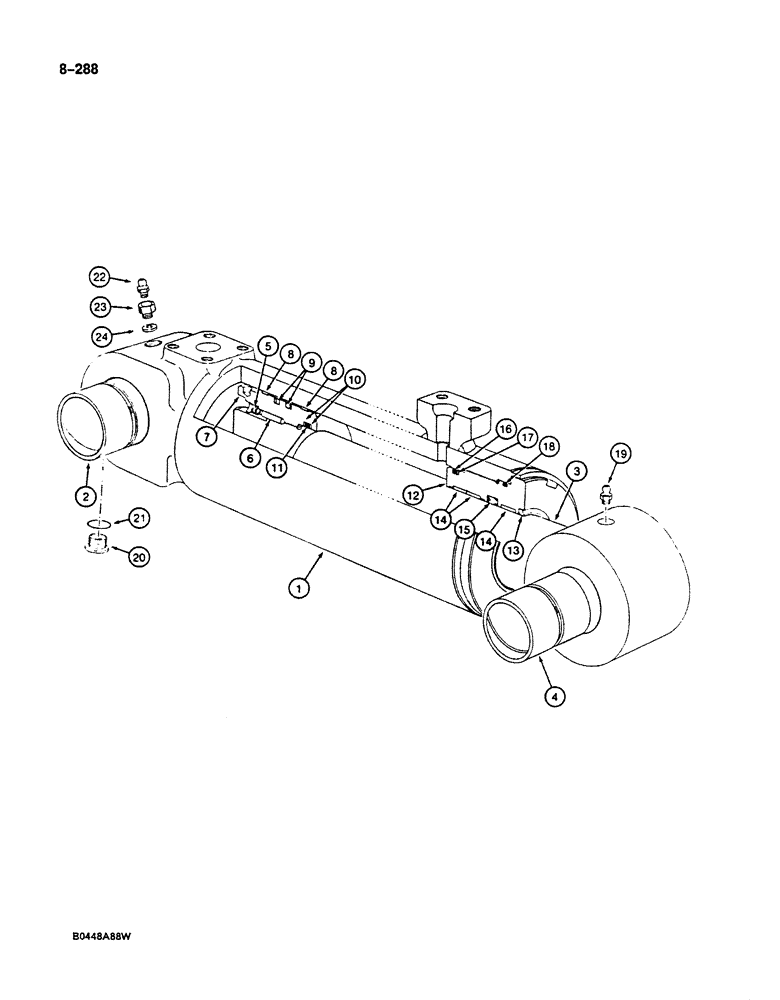

Запчасти Case 125B (8-288) - BOOM CYLINDER - P6946790, IF USED, CYLINDERS WITH LETTER "H" OR "I" IDENTIFICATION (08) - HYDRAULICS

P6946790

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, cylinders with letter "H" or "I" identification,(Order P8346704 see Figure 8-292), Includes: Ref. 1 - 24

2шт.

Check cylinder tube for proper identification letter following cylinder part number.

1шт.

P552462

CYLINDER

TUBE ASSEMBLY - cylinder, no longer available order P1452412 tube assembly and reference numbers 20-24, Includes: Ref. 1 and 2

1шт.

P1452412

JACK BODY

TUBE ASSEMBLY - cylinder, replaces P552462 tube assembly, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928603

BUSHING

- tube

1шт.

P7749419

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928603

BUSHING

- piston rod

1шт.

5

P1432952

SCREW

SET SCREW - pin

1шт.

Part of Seal Kit, P/N P4249685

1шт.

6

P827734

PIN

- locking

1шт.

Part of Seal Kit, P/N P4249685

1шт.

7

P3729166

NUT

PISTON - cylinder

1шт.

8

P1845221

BAND

RING - wear

2шт.

Part of Seal Kit, P/N P4249685

1шт.

9

P1451298

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of Seal Kit, P/N P4249685

1шт.

10

P5946025

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

Part of Seal Kit, P/N P4249685

1шт.

11

P30341

O-RING

- piston rod

1шт.

Part of Seal Kit, P/N P4249685

1шт.

12

P1829062

CYLINDER END CAP

GLAND - cylinder

1шт.

13

P2046009

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N P4249685

1шт.

14

P1228721

SEGMENT

RING - wear

3шт.

Part of Seal Kit, P/N P4249685

1шт.

15

P1451299

GASKET

U-CUP SEAL - piston rod

1шт.

Part of Seal Kit, P/N P4249685

1шт.

16

P30352

O-RING

- gland, small

1шт.

17

P545202

BACK-UP RING

BACKUP RING - gland, small O-ring

1шт.

Part of Seal Kit, P/N P4249685

1шт.

18

P1230415

O-RING

- gland, large

1шт.

Part of Seal Kit, P/N P4249685

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

20

P1437456

PLUG

ASSEMBLY - cylinder, Includes: Ref. 21

1шт.

21

P945295

SEAL

O-RING - plug

1шт.

22

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication, if used M8 x 1.25

1шт.

23

P837590

END FITTING

ADAPTER - grease fitting, if used

1шт.

24

P45202

WASHER, SEALING

SEAL - grease fitting adapter, if used

1шт.

P4249685

KIT

- seal, includes Refs. 5, 6, 8, 9, 10, 11, and 13 thru 18

1шт.
