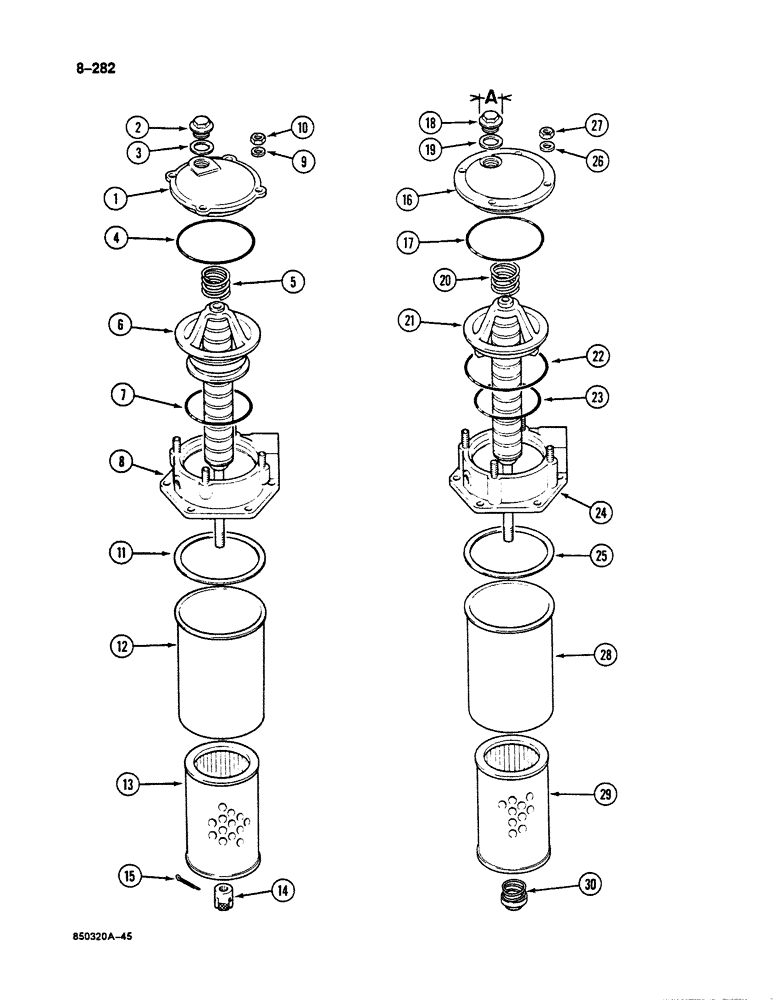

Запчасти Case 125B (8-282) - HYD. OIL FILTER, MAIN RETURN LINES TO RESERVOIR, P.I.N. 74251 THRU 74963, 21801-21868, 26801 & AFT (08) - HYDRAULICS

P1050568

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, check filter head identification before ordering components, Includes: Ref. 1 - 15

1шт.

1

P3840389

COVER

HEAD - filter

1шт.

2

P1337409

PLUG

- filter head

1шт.

3

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL - plug

1шт.

4

P30364

O-RING

- head

1шт.

5

P38257

SPRING

- filter

1шт.

6

NSS

NOT SOLD SEPARAT

CORE - magnetic, filter

1шт.

7

P1430496

O-RING

- magnetic core

1шт.

8

P1350513

BODY

BASE - filter

1шт.

9

P35047

WASHER

- head

4шт.

10

P34177

DEUTZ PART

NUT - head retaining

4шт.

11

P945264

WASHER, SEALING

SEAL - element

1шт.

12

P250535

FILTER COVER

HOUSING - element, filter

1шт.

13

P1050527

CARTRIDGE

ELEMENT - filter

1шт.

14

P834558

NUT

- special, magnetic core retaining

1шт.

15

P35513

SPLIT PIN

PIN - cotter, special, magnetic core

1шт.

P1050568

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, check filter head identification before ordering components, Includes: Ref. 16 - 34

1шт.

P1350545

COVER

HEAD ASSEMBLY - filter, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

17

P30363

O-RING

- filter head

1шт.

18

P1737431

PLUG

- filter head, "A" dimension is 2" (52 mm) diameter, if used

1шт.

18

P1337409

PLUG

- filter head, "A" dimension is 2" (52 mm) diameter, if used

1шт.

19

P146079

SEAL

- plug, used with 2" (52 mm) dimension plug

1шт.

19

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL - plug, used with 1-3/4" (45 mm) dimension plug

1шт.

20

P738116

COMPRESSION SPRING

SPRING - filter head

1шт.

21

NSS

NOT SOLD SEPARAT

CORE - magnetic, filter

1шт.

22

P130474

O-RING

- magnetic core, large

1шт.

23

P1630425

O-RING

- magnetic core, small

1шт.

P1350546

BODY

BASE ASSEMBLY - filter, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

BASE - filter

1шт.

25

P945264

WASHER, SEALING

SEAL -, Serial Range: base-housing

1шт.

26

P35047

WASHER

- filter head

4шт.

27

P34177

DEUTZ PART

NUT - filter head

4шт.

28

P250535

FILTER COVER

HOUSING - filter element

1шт.

29

P1050527

CARTRIDGE

ELEMENT - filter

1шт.

30

P1950529

SET OF PARTS

BYPASS ASSEMBLY - filter, one piece, if used

1шт.

31

P1338149

COMPRESSION SPRING

SPRING - bypass, if used

1шт.

32

P427078

SUPPORT

RETAINER - spring, if used

1шт.

33

P34305

NUT

- hex, slotted, retainer, if used

1шт.

34

P35512

SPLIT PIN

PIN - cotter, retainer, if used

1шт.
