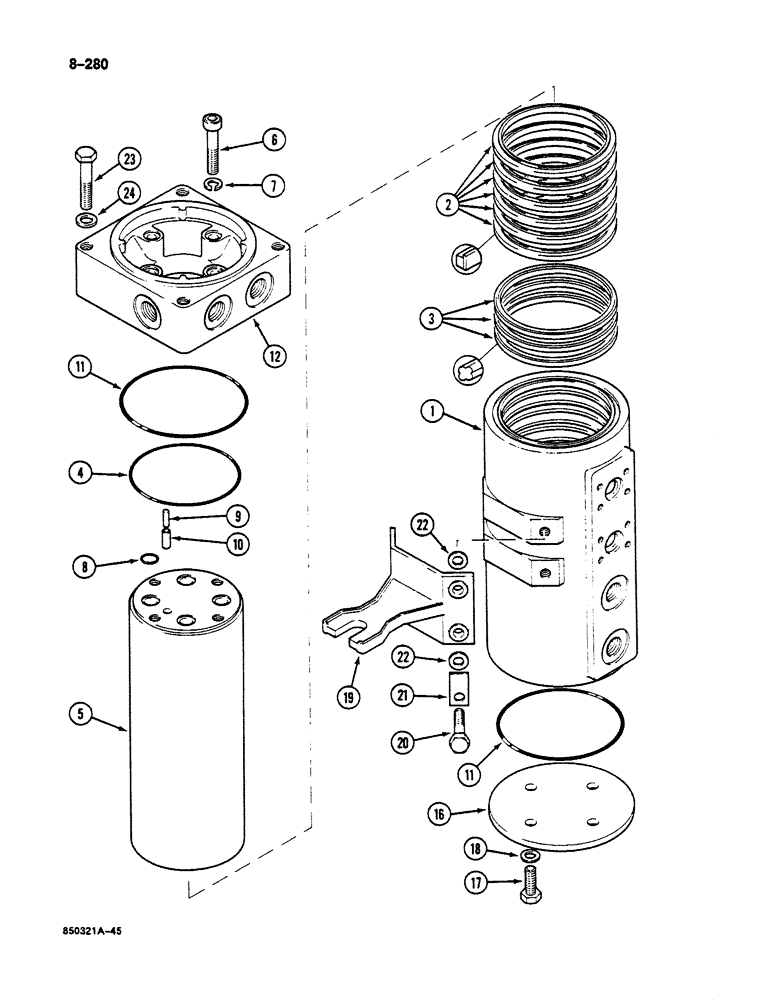

Запчасти Case 125B (8-280) - HYDRAULIC SWIVEL, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - swivel

1шт.

2

P646098

SPECIAL MAT. SEAL

SEAL - ring, six upper grooves

6шт.

Part of Seal Kit, P/N P1249664

1шт.

3

P1046027

SEAL

- ring, three lower grooves

3шт.

Part of Seal Kit, P/N P1249664

1шт.

4

P1230442

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

- small, Serial Range: housing-swivel

1шт.

Part of Seal Kit, P/N P1249664

1шт.

5

NSS

NOT SOLD SEPARAT

SWIVEL - inner

1шт.

6

P32979

SCREW

BOLT - swivel

4шт.

7

P34714

WASHER, LOCK

WASHER - bolt

4шт.

8

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- small

8шт.

Part of Seal Kit, P/N P1249664

1шт.

9

P35744

SPLIT PIN/SAFETY PIN

ROLL PIN - inner

2шт.

10

P35762

SPLIT PIN/SAFETY PIN

ROLL PIN - outer

2шт.

11

P30367

O-RING

- upper and lower housing

2шт.

Part of Seal Kit, P/N P1249664

1шт.

12

P1737756

HEAD

- swivel

1шт.

13

RESERVED

1шт.

14

RESERVED

1шт.

15

RESERVED

1шт.

16

P3330165

WASHER

RETAINER - inner swivel

1шт.

17

P33841

SCREW

BOLT - retainer

4шт.

18

P145276

SEAL

WASHER - bolt

4шт.

Part of Seal Kit, P/N P1249664

1шт.

19

P1346127

SUPPORT

BRACKET - hydraulic swivel

1шт.

20

P28367

SCREW

BOLT - bracket, replaces P32760

4шт.

21

P622841

BRAKE

PLATE - lock

4шт.

22

P35004

WASHER

- bolt

6шт.

23

P133834

SCREW

BOLT - swivel mounting

4шт.

24

P3528796

WASHER

SPACER - mounting bolt

4шт.

P1249664

SEAL PACKAGE

KIT - seal, includes Refs. 2, 3, 4, 8, 11 and 18

1шт.
