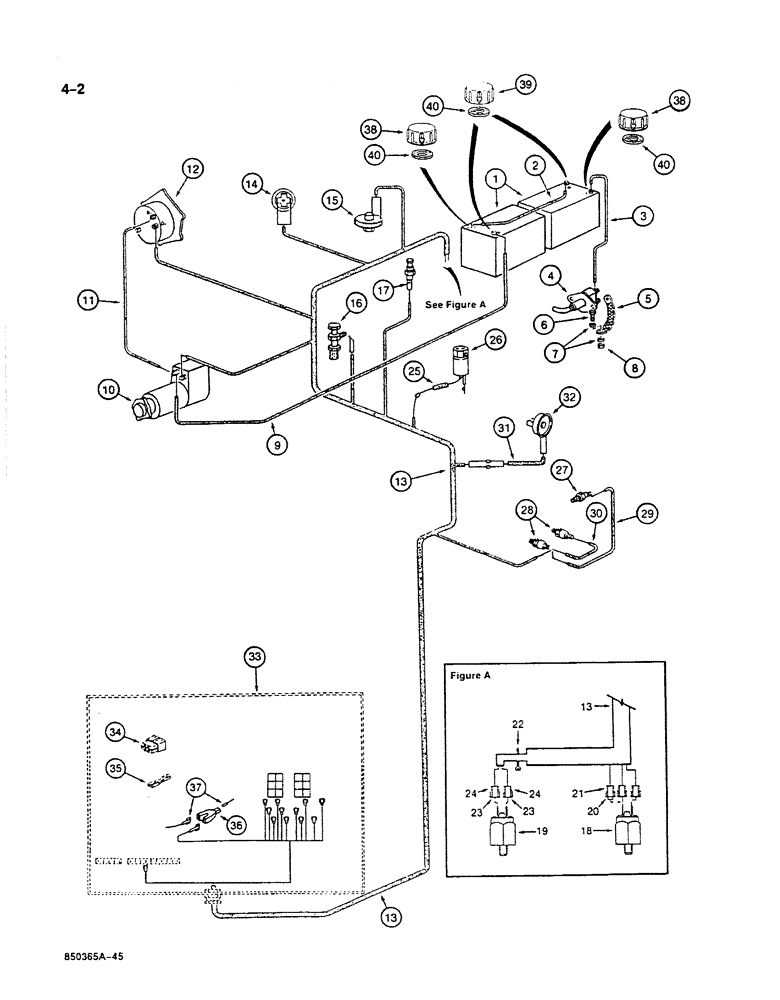

Запчасти Case 125B (4-02) - ENGINE ELECTRICAL SYSTEM, P.I.N. 74251 THROUGH 74879 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BATTERY - electrical, see Figure 4-50

2шт.

2

P8547245

CABLE

-, Serial Range: battery-battery

1шт.

3

P7447208

CABLE

- battery to battery disconnect switch

1шт.

4

REF

INSTRUCTION

SWITCH - battery disconnect, see Figure 4-52

1шт.

5

P1047299

NEG BATTERY CABLE

STRAP - ground, battery disconnect switch

1шт.

6

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- ground strap Hex, M10 x 35, 8.8, Full Thd

1шт.

7

P3528795

WASHER

SPACER - bolt

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

1шт.

9

P1047273

CABLE

-, Serial Range: battery-starter

1шт.

10

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-6 and 4-8, for mounting parts see Figure 2-14

1шт.

11

P7447277

CABLE

WIRE -, Serial Range: starter-alternator

1шт.

12

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-10, for mounting parts see Figure 2-14

1шт.

13

P8547225

HARNESS

- engine

1шт.

14

REF

INSTRUCTION

CONNECTOR - belt warning switch, for warning switch and related parts, see Figure 2-14

1шт.

15

REF

INSTRUCTION

SENDER - air filter restriction indicator, see Figures 2-2 and 2-4 for correct sender and related parts

1шт.

16

P41506

DEUTZ PART

PLUG - preheater

1шт.

17

REF

INSTRUCTION

THERMOSTAT - engine temperature warning see Figure 2-12

1шт.

18

REF

INSTRUCTION

SENDER - engine oil pressure, for adapter and sealing washers, see Figure 2-14

1шт.

19

REF

INSTRUCTION

SENDER - engine oil pressure warning see Figure 2-14

1шт.

20

P40982

CLIP,ELECTRICAL

CLIP - wire, double connection

1шт.

21

P41471

LIGHT FAIRING

COVER - wire clip

1шт.

22

P51946

CLAMP

TIE STRAP - harness

1шт.

23

P2036955

CLIP,ELECTRICAL

CLIP - wire

2шт.

24

P1540485

LIGHT FAIRING

COVER - wire clip

2шт.

25

P8647250

CABLE

HARNESS - to preheater switch

1шт.

26

P2143357

SOLENOID

SWITCH - preheater

1шт.

27

P641661

PROBE

SENDER - hydraulic oil temperature

1шт.

28

P841828

ELECTRO/HYD CONTACT

SENDER - hydraulic oil restriction indicator

2шт.

29

P4847221

CABLE

WIRE - connects Ref. 27 and 28

1шт.

30

P7247229

CABLE

WIRE - connects senders, Ref. 28

1шт.

31

P8647259

CABLE

HARNESS - to low fuel level sender

1шт.

32

P2141665

GAUGE

SENDER - low fuel level

1шт.

33

REF

INSTRUCTION

BOX - electrical, see Figures 4-60 through 4-66

1шт.

34

P840757

CASE

CONNECTOR - male, 6-way

2шт.

35

P40937

CLIP,ELECTRICAL

CLIP - connector

1шт.

36

P640964

FITTING

CONNECTOR - engine harness to electrical box harness

1шт.

37

REF

INSTRUCTION

HARNESS - wiring, electrical box, see Figure 4-26

1шт.

38

P2340451

DOOR COVER

CAP - terminal protector, black, negative post

2шт.

39

P2340452

DOOR COVER

CAP - terminal protector, red, positive post

2шт.

40

P2340487

HOLE PLUG BUTTON

WASHER - treated, corrosion protection

4шт.
