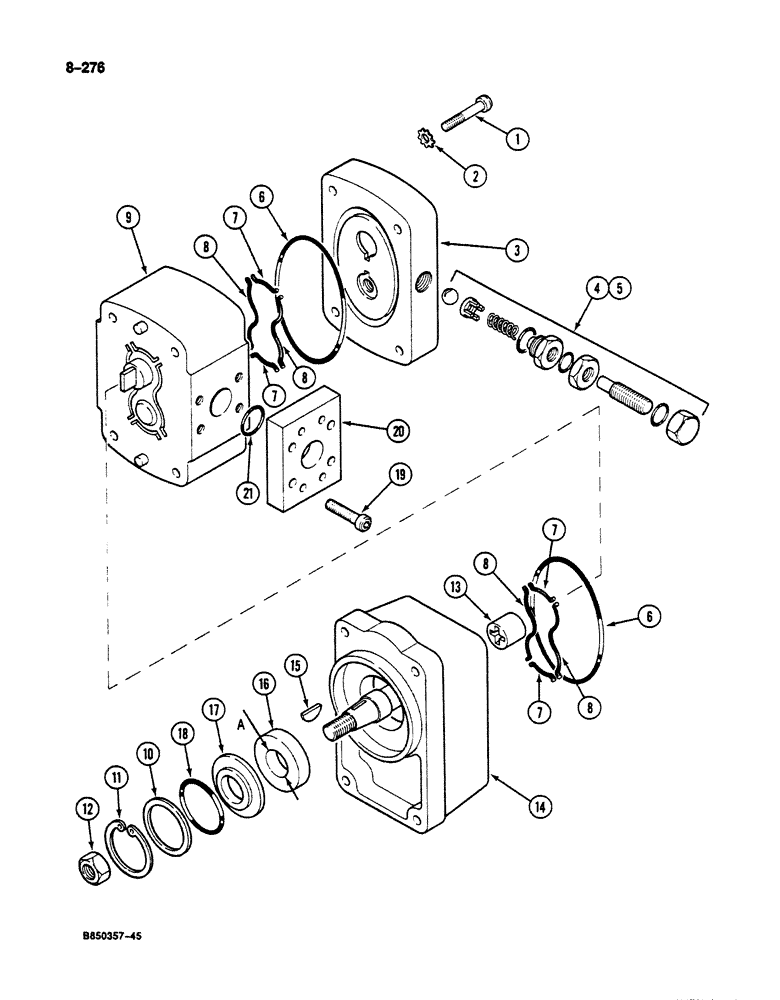

Запчасти Case 125B (8-276) - OIL COOLER FAN MOTOR, MOTOR SERIAL NUMBER 40700000 THROUGH 60199999 (08) - HYDRAULICS

P2343732

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - oil cooler fan, Includes: Ref. 1 - 18

1шт.

P2343732 Motor Assy uses P5949630 Seal Kit

1шт.

1

NDD

BOLT - port end cover

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

4

P3749685

KIT

RELIEF VALVE ASSEMBLY - motor, contains no individual serviceable components, if used

1шт.

5

P5449608

KIT

RELIEF VALVE ASSEMBLY - motor, contains no individual serviceable components, if used

1шт.

P3749672

KIT

- seal repair, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - gear housing

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - small, gear housing

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - large, gear housing

4шт.

9

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - includes gear set

1шт.

10

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

1шт.

11

P936324

RING, SNAP

SNAP RING - shaft

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - locking

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLING - shaft

1шт.

14

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - includes drive shaft

1шт.

15

P236199

BUCKET TOOTH KEY

KEY - shaft

1шт.

16

P8046005

SEAL

- shaft, "A" dimension is 1" (25 mm)

1шт.

16

P7146019

BUSHING

SEAL - shaft, "A" dimension is 25/32" (20 mm)

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

18

P2230448

O-RING

- retainer

1шт.

P3837782

SHIN

BLOCK ASSEMBLY - oil cooler motor, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - block mounting

4шт.

20

NSS

NOT SOLD SEPARAT

BLOCK - oil cooler motor

1шт.

21

P7546065

SEAL

O-RING - block

1шт.
