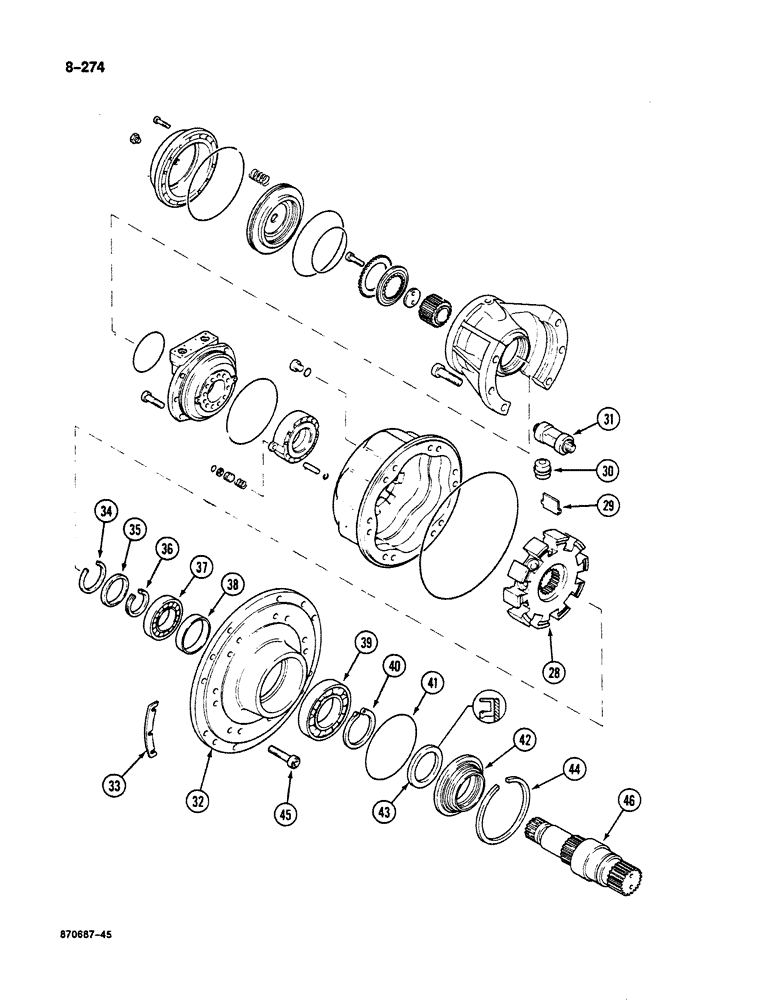

Запчасти Case 125B (8-274) - SWING HYDRAULIC MOTOR, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, hydraulic, continued from Figure 8-272, Includes: Ref. 28 - 46

1шт.

P7746273

BLOCK ASSY.

ROTOR AND ROLLER ASSEMBLY - motor, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - swing motor

1шт.

29

P3637782

KIT

WEAR PLATE - rotor, set of 20

1шт.

30

P7146254

PISTON

- motor, class "0", see number on Ref. 28 rotor to identify proper class, if used

10шт.

30

P7146255

PISTON

- motor, class "5", see number on Ref. 28 rotor to identify proper class, if used

10шт.

31

P8046228

LARGE PIN

ROLLER SHAFT - motor, class "0", see number on Ref. 28 rotor to identify proper class, if used

10шт.

31

P8046229

LARGE PIN

ROLLER SHAFT - motor, class "5", see number on Ref. 28 rotor to identify proper class, if used

10шт.

P5046278

CYLINDER END CAP

BEARING ASSEMBLY - swing motor, Includes: Ref. 32 - 45

1шт.

32

P8030136

CYLINDER END CAP

HOUSING - bearing support

1шт.

33

P5046280

SHIM

SET - housing

1шт.

34

P1936916

SEGMENT

RETAINING RING - bearing

1шт.

35

P1245518

RING

SPACER - bearing

1шт.

36

P2628971

RING

- retainer halves

1шт.

37

P2339808

BEARING

ROLLER BEARING - shaft

1шт.

38

P1729014

SPACER

- bearing

1шт.

39

P1639937

BEARING

ROLLER BEARING - shaft

1шт.

40

P36342

RING, SNAP

SNAP RING - bearing

1шт.

41

P1430474

O-RING,0.139" Thk x 7.984" ID, -266, Cl 5, 75 Duro

- bearing support housing

1шт.

Part of Seal Kit, P/N P2649695

1шт.

P5046279

CAP

SEAL ASSEMBLY - bearing support housing, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

43

P1249673

ASSEMBLY

SEAL - shaft

1шт.

Part of Seal Kit, P/N P2649695

1шт.

44

P1936917

SEGMENT

RETAINING RING - seal assembly

1шт.

45

P732982

SCREW

BOLT - bearing support housing

12шт.

46

P930013

SHAFT

- swing motor

1шт.

P2649695

SEAL PACKAGE

KIT - seal, includes Refs. 41 and 43 on this figure and figure 8-273

1шт.

SNAP RINGS USED WITH P8046228 ROLLER IS P836311

1шт.

CLASS NUMBER IS STAMPED IN BETWEEN TEETH ON #28 -TO IDENTIFY WHICH PISTON AND ROLLER SHAFT TO USE

1шт.

P1751534 Decal, Reservoir Pressure

1шт.
