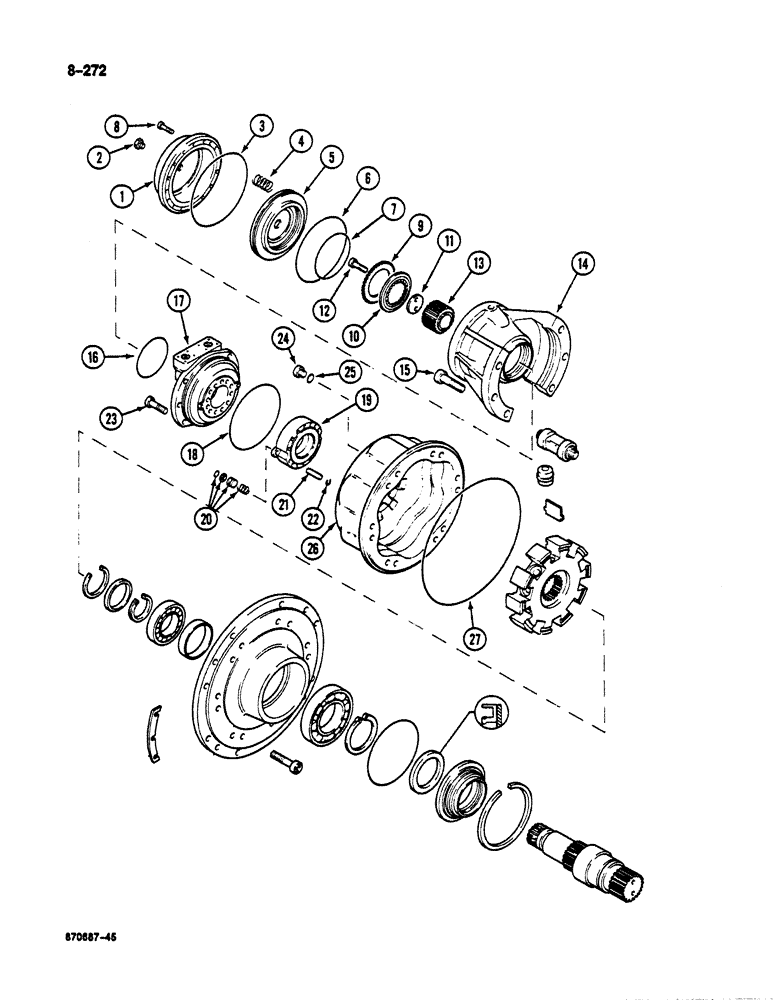

Запчасти Case 125B (8-272) - SWING HYDRAULIC MOTOR, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

P2643730

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, hydraulic, Includes: Ref. 1 - 27

1шт.

P843025

BRAKE

ASSEMBLY - swing motor, Includes: Ref. 1 - 15

1шт.

1

P5143163

FILTER BOWL

COVER - brake

1шт.

P1337445

PLUG

ASSEMBLY - air removal, Includes: Ref. 2 and 2A

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - air removal

1шт.

2a

P945293

WASHER, SEALING

O-RING - plug

1шт.

3

P2130418

O-RING

- cover

1шт.

Part of Seal Kit, P/N P2649692

1шт.

4

P3637790

KIT

SPRING SET - brake piston, set of 19

1шт.

5

P5143125

PISTON

- brake

1шт.

6

P30373

O-RING

- piston, large

1шт.

Part of Seal Kit, P/N P2649692

1шт.

7

P30366

O-RING

- piston, small

1шт.

Part of Seal Kit, P/N P2649692

1шт.

8

P32943

SCREW

BOLT - cover

16шт.

9

P2639301

DISC

- steel, external teeth

16шт.

10

P2639358

DISC

- friction, internal teeth

18шт.

11

P1745334

WASHER

PLATE - retainer

1шт.

12

P833804

SCREW

BOLT - retainer plate

2шт.

13

P2639316

TRANSMISSION SLEEVE

COUPLING - shaft

1шт.

14

P5143165

BODY

HOUSING - brake

1шт.

15

P1332924

SCREW

BOLT - housing

6шт.

P5046276

VALVE, CONTROL

DISTRIBUTOR ASSEMBLY - motor, Includes: Ref. 16 - 25

1шт.

16

P1030432

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

- brake housing to distributor, small

1шт.

Part of Seal Kit, P/N P2649695

1шт.

17

P5046277

BLOCK ASSY.

HOUSING - distributor

1шт.

18

P1830414

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

- distributor housing, large

1шт.

Part of Seal Kit, P/N P2649695

1шт.

19

P7130127

LARGE PLATE

ROLLER BEARING - shaft

1шт.

20

P3637791

KIT

SPRING SET - set of 12

1шт.

21

P836004

SPLIT PIN/SAFETY PIN

DOWEL PIN - bearing

2шт.

22

P1936914

SEGMENT

RING - dowel pin

2шт.

23

P33802

SCREW

BOLT - distributor housing

6шт.

24

P1037474

PLUG

- motor housing

1шт.

25

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- motor housing plug

1шт.

Part of Seal Kit, P/N P2649695

1шт.

P6646260

HOUSING

ASSEMBLY - motor, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

27

P1830410

O-RING

- motor housing

1шт.

Part of Seal Kit, P/N P2649695

1шт.

P2649692

KIT

- seal, includes Refs. 3, 6, and 7

1шт.

P2649695

SEAL PACKAGE

KIT - seal, includes Refs. 16, 18, 25 and 27 on this figure and on figure 8-275

1шт.
