(8-270) - CHECK VALVE, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER

Запчасти Case 125B (8-270) - CHECK VALVE, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

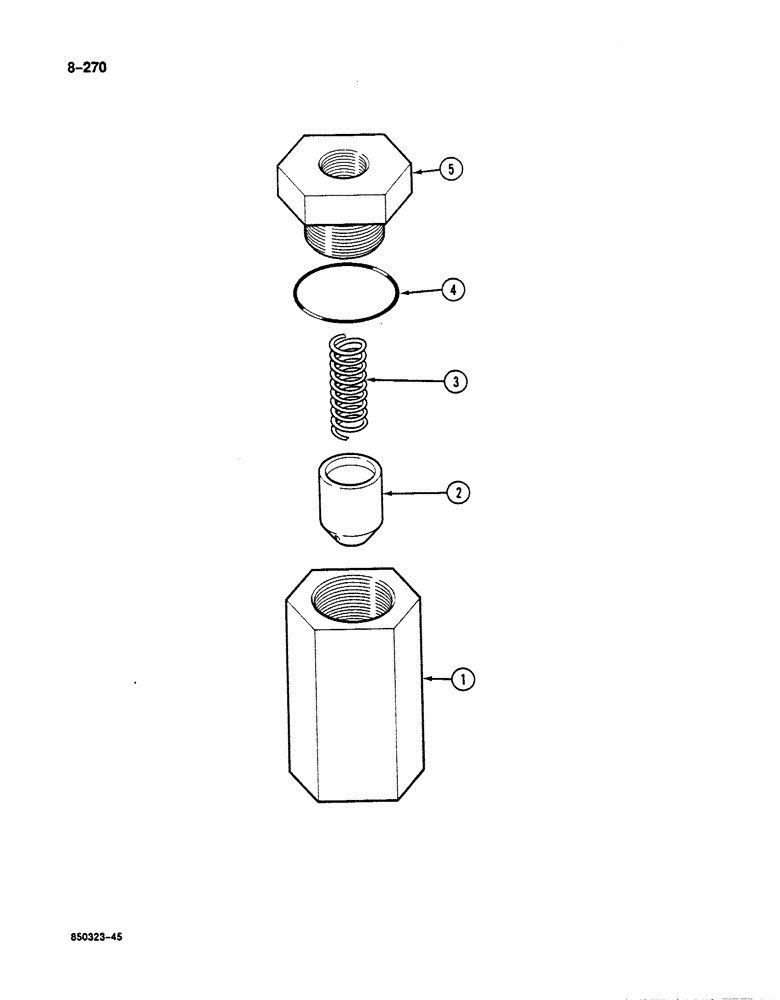

Схема запчастей Case 125B - (8-270) - CHECK VALVE, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P2043310

BLOCK ASSY.

CHECK VALVE ASSEMBLY - filter return line, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

2

NSS

NOT SOLD SEPARAT

POPPET - check valve

1шт.

3

P1638190

COMPRESSION SPRING

SPRING - poppet

1шт.

4

P30481

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- cap

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - check valve

1шт.
