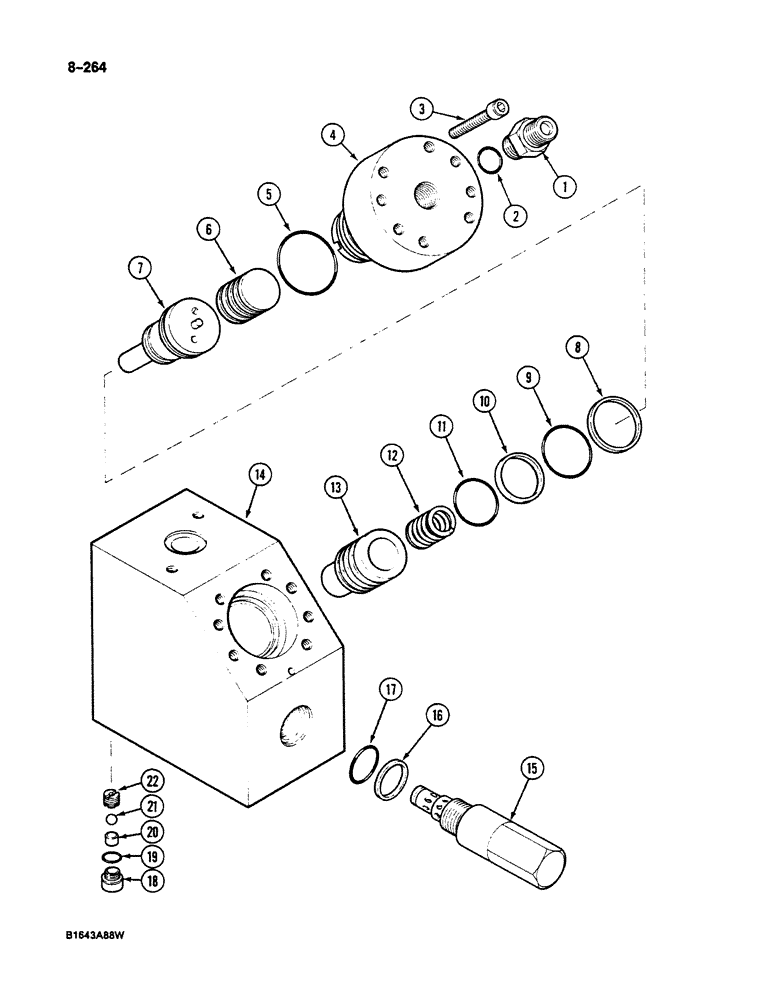

Запчасти Case 125B (8-264) - MANIFOLD BLOCK, P.I.N. 21807 THROUGH 21868, 26801 AND AFTER, (08) - HYDRAULICS

P4343314

BLOCK ASSY.

BLOCK ASSEMBLY - manifold, craning hydraulic circuit, Includes: Ref. 1 - 22

1шт.

1

P4037584

UNION

ADAPTER - straight, Includes: Ref. 2

1шт.

2

P7046042

SEAL

O-RING - adapter

1шт.

3

P1032901

SCREW

BOLT - hex socket head, 5 mm x 25 mm, class 10.9

8шт.

4

P150252

CAP

- manifold block

1шт.

5

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- cap

1шт.

6

P6027898

PISTON

- valve, manifold block

1шт.

P8346271

SPOOL

POPPET ASSEMBLY - valve, manifold block, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET - valve, manifold block

1шт.

8

P945222

BACK-UP RING

RING - backup, poppet, large

1шт.

9

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- poppet, large

1шт.

10

P1746045

BACK-UP RING

RING - backup, poppet, small

1шт.

11

P1230443

O-RING

- poppet, small

1шт.

12

P1538186

SPRING

- poppet

1шт.

13

P1729852

VALVE POPPET

SEAT - valve, manifold block

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - manifold, craning hydraulic circuit

1шт.

P3143647

LIMITER, TRAVEL

VALVE ASSEMBLY - relief, main, manifold block, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE - relief, main, manifold block

1шт.

16

P1245229

BACK-UP RING

RING - backup, relief valve

1шт.

17

P2230461

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- relief valve

1шт.

18

P2537448

PLUG

- manifold block, Includes: Ref. 19

1шт.

19

P2230441

SEAL

O-RING - plug

1шт.

20

P4229101

STOP

- ball

1шт.

21

P31001

BALL

- check, manifold block

1шт.

22

P4229102

SEAT

- ball

1шт.
