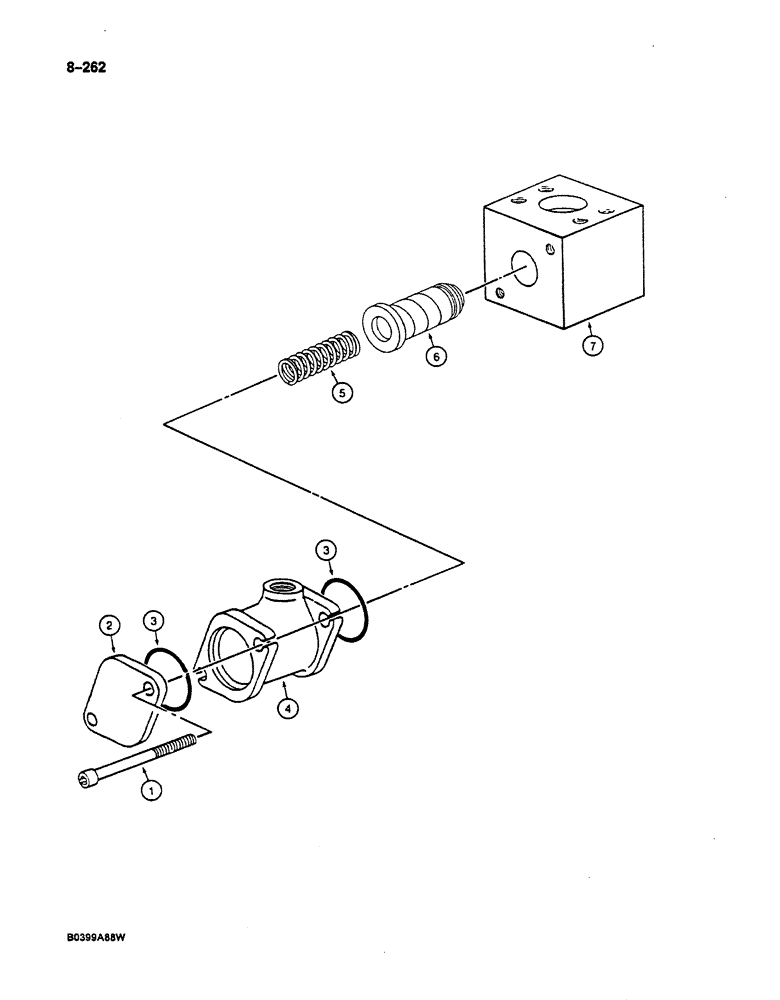

Запчасти Case 125B (8-262) - PRESSURE REGULATING VALVE - 13 BAR, P.I.N. 74575 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

P3743384

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 185 psi, (1275 KPa, 13 bar), Includes: Ref. 1 - 7

2шт.

1

P1232979

SCREW

BOLT - hex socket head, 10 mm x 80 mm, class 10.9

2шт.

2

P4524114

LARGE PLATE

PLATE - end

1шт.

3

P130412

O-RING

- cover

2шт.

4

P1929055

SPACER

COVER - valve

1шт.

5

P1338124

COMPRESSION SPRING

SPRING - regulator valve

1шт.

6

P1229821

VALVE POPPET

PLUNGER - valve

1шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - pressure regulating valve

1шт.
