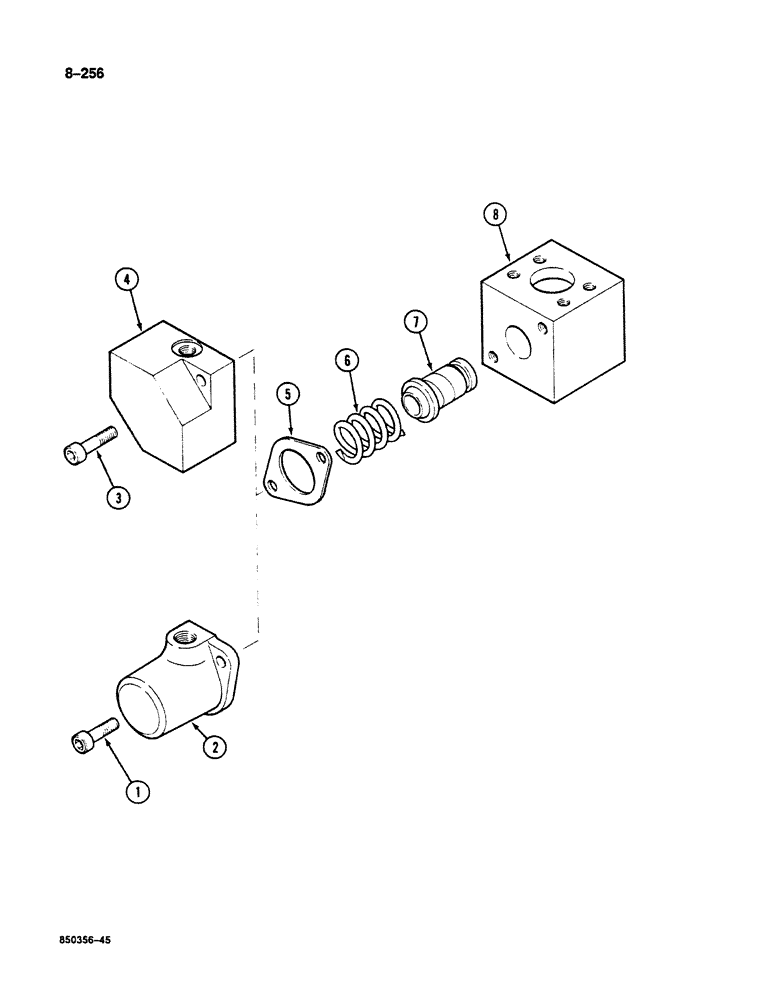

Запчасти Case 125B (8-256) - PRESSURE REGULATING VALVE - 13 BAR, P.I.N. 74251 THORUGH 74574 (08) - HYDRAULICS

P2343394

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 185 psi, (1275 KPa, 13bar), no longer available, order P3743384 when replacing complete valve, see Figure 8-262, Includes: Ref. 1 - 8

1шт.

1

P32931

SCREW

BOLT - mounting, used with Ref. 2 round-type end cap

2шт.

2

REF

INSTRUCTION

CAP - end, round type, no longer available, order Ref. 4, P1229815 block type cap

1шт.

3

P32936

SCREW

BOLT - mounting, used with Ref. 4, P1229815 block-type cap

2шт.

4

P1229815

CAP

- end, block type, replaces round-type cap used on some machines

1шт.

5

P5046005

SEAL

GASKET - end cap

1шт.

6

P1038168

COMPRESSION SPRING

SPRING - regulator valve

1шт.

7

P3327801

VALVE POPPET

PLUNGER - valve

1шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - pressure regulating valve

1шт.
