(8-254) - POWER REGULATING VALVE - 35 BAR, P.I.N. 74575 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER

Запчасти Case 125B (8-254) - POWER REGULATING VALVE - 35 BAR, P.I.N. 74575 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

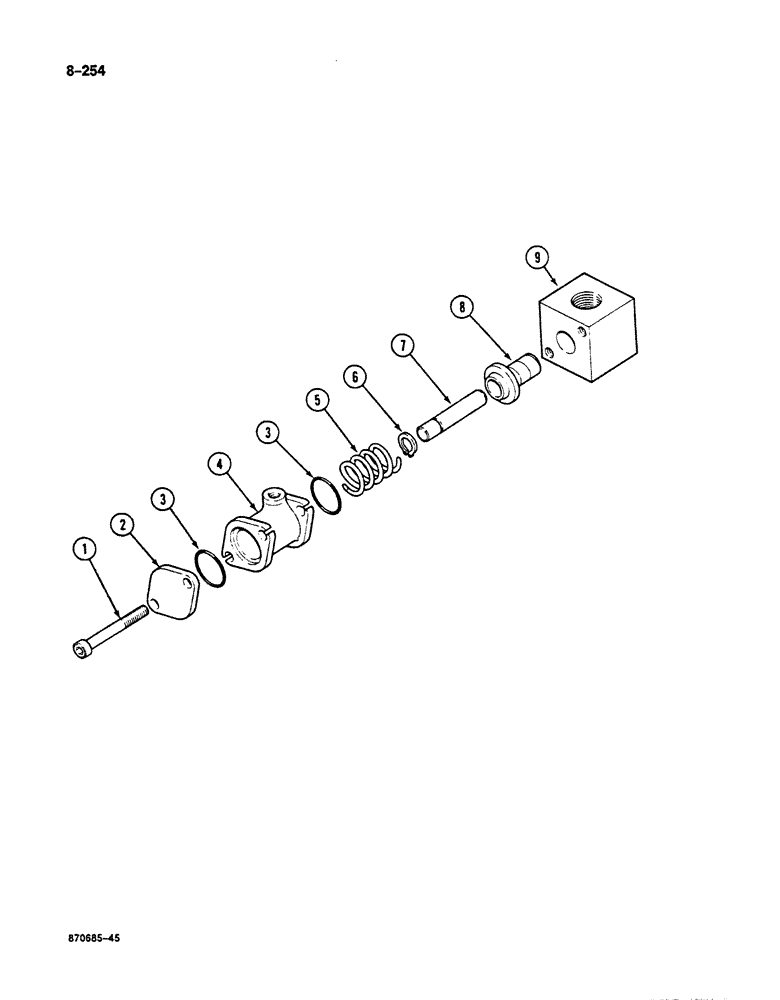

Схема запчастей Case 125B - (8-254) - POWER REGULATING VALVE - 35 BAR, P.I.N. 74575 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P3743380

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 498 psi (3433 KPa, 35 bar), Includes: Ref. 1 - 9

1шт.

1

P1232979

SCREW

BOLT - hex socket head, 10 mm x 80 mm, class 10.9

2шт.

2

P4524114

LARGE PLATE

PLATE - end

1шт.

3

P130412

O-RING

- cover

2шт.

4

P1929055

SPACER

COVER - valve

1шт.

5

P1038168

COMPRESSION SPRING

SPRING - regulator valve

1шт.

6

P36373

RING, SNAP

SNAP RING - spring guide

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

8

P4727815

VALVE POPPET

PLUNGER - valve

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - pressure regulating valve

1шт.
