(8-246) - SOLENOID CONTROL VALVE - 13 BAR, P.I.N. 74282 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER

Запчасти Case 125B (8-246) - SOLENOID CONTROL VALVE - 13 BAR, P.I.N. 74282 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

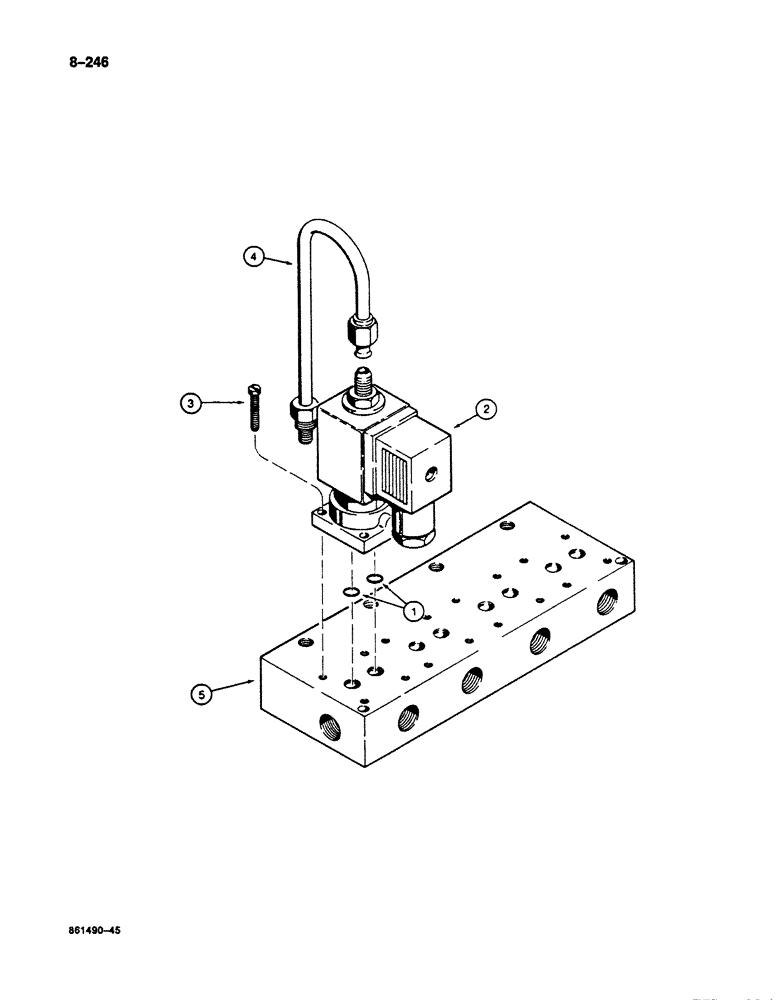

Схема запчастей Case 125B - (8-246) - SOLENOID CONTROL VALVE - 13 BAR, P.I.N. 74282 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P3143609

BLOCK ASSY.

CONTROL VALVE ASSEMBLY - solenoid, Includes: Ref. 1 - 5

1шт.

P3743314

SHIN

COIL ASSEMBLY - solenoid control valve, Includes: Ref. 1 and 2

4шт.

1

P2230485

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- coil

2шт.

2

NSS

NOT SOLD SEPARAT

COIL - solenoid valve

1шт.

3

P3333029

SCREW

- coil to manifold block

16шт.

4

P6947173

PIPE

TUBE - manifold, Serial Range: block-coil

4шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - manifold, coil mounting

1шт.
