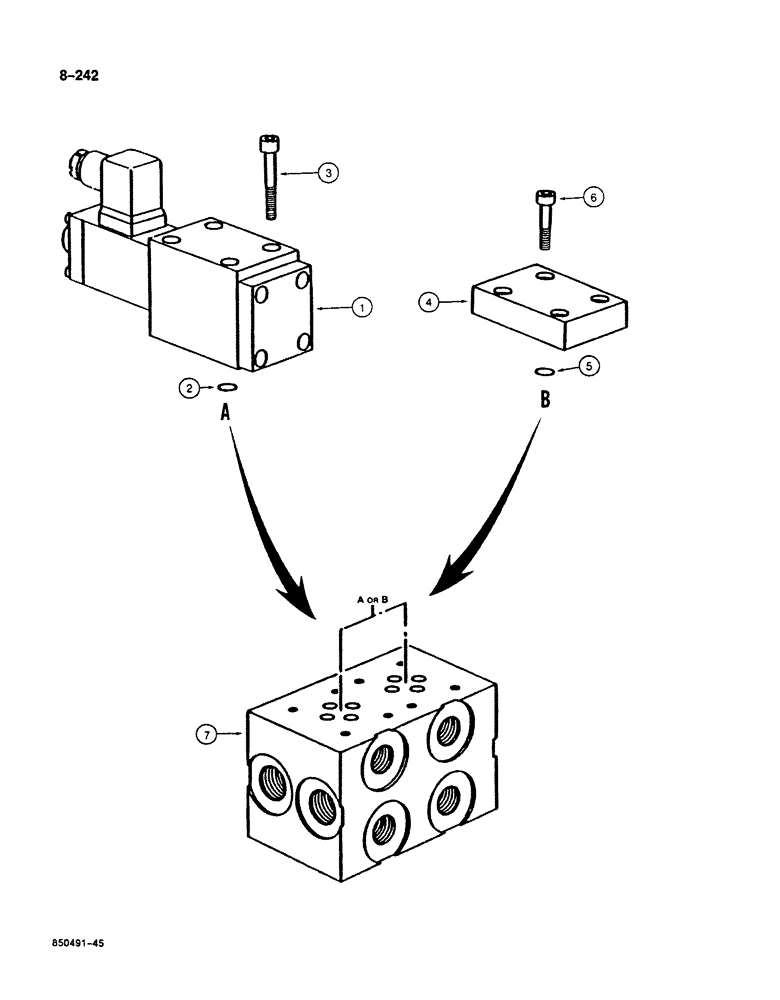

Запчасти Case 125B (8-242) - SOLENOID CONTROL VALVE - 35 BAR, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

P1843371

SHIN

SOLENOID VALVE ASSEMBLY - 35 bar, Includes: Ref. 1 - 3

3шт.

1

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

2

P1230430

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-, Serial Range: valve-block

4шт.

3

P232916

SCREW

-, Serial Range: valve-block

4шт.

P1343328

LARGE PLATE

PLATE ASSEMBLY - solenoid valve block, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - solenoid valve block

1шт.

5

P1230430

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-, Serial Range: plate-block

4шт.

6

P432905

SCREW

-, Serial Range: plate-block

4шт.

7

P3237734

LARGE PLATE

BLOCK - manifold, solenoid valve

2шт.
