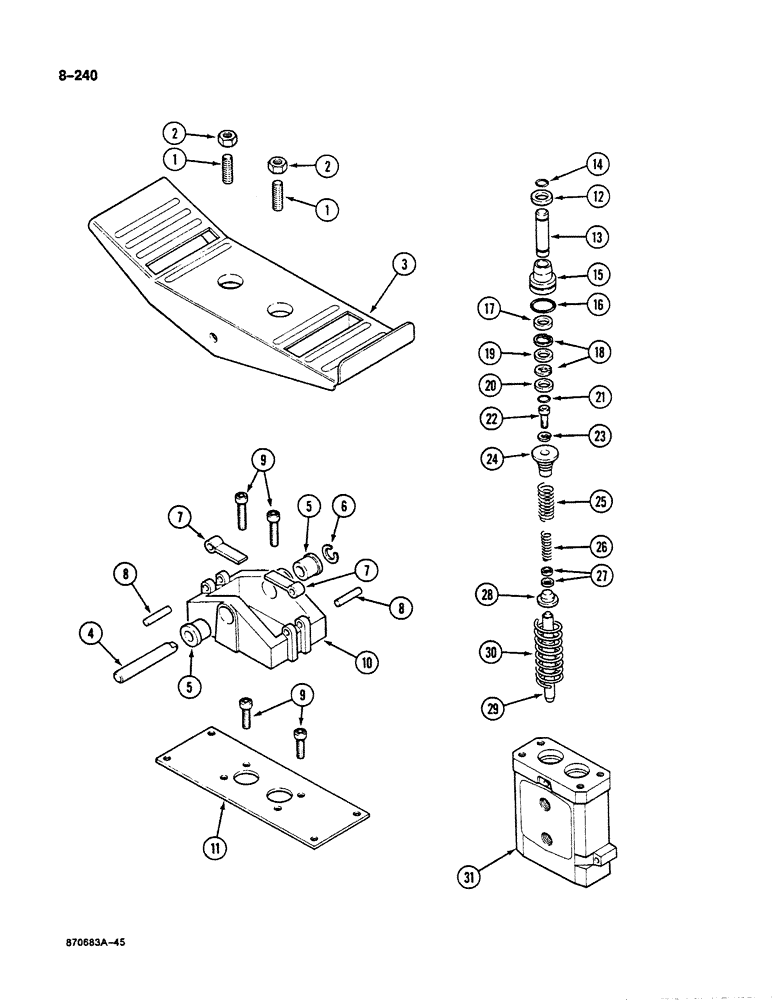

Запчасти Case 125B (8-240) - FOOT CONTROL VALVE - MONSUN-TISON, P.I.N. 74631 THROUGH 74963, 21801 THROUGH 21868, 28601 AND AFTER (08) - HYDRAULICS

P1643394

BLOCK ASSY.

CONTROL VALVE ASSEMBLY - foot, Monsun-Tison manufactured, if used, see Figure 8-238 for units equipped with Rexroth manufactured foot control valve, Includes: Ref. 1 - 31

2-3шт.

P5242748

PEDAL

ASSEMBLY - foot, Includes: Ref. 1 - 3

1шт.

1

P3533052

SCREW

- foot pedal

2шт.

2

P34211

NUT

- hex, jam

2шт.

3

NSS

NOT SOLD SEPARAT

PEDAL - valve control

1шт.

P6528252

SUPPORT

PLATE ASSEMBLY - foot pedal mounting, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - foot pedal pivot

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - mounting block

2шт.

6

NSS

NOT SOLD SEPARAT

SNAP RING - pin

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER - mounting block

2шт.

8

NSS

NOT SOLD SEPARAT

ROLL PIN - mounting block

2шт.

9

NSS

NOT SOLD SEPARAT

BOLT - block to mounting plate

4шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - foot pedal mounting

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - foot pedal mounting

1шт.

P3143665

CARTRIDGE

KIT - cartridge and guide, Includes: Ref. 12 - 21

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - guide

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - guide

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - guide pin

1шт.

15

NSS

NOT SOLD SEPARAT

GUIDE - cartridge

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - guide, outer

1шт.

17

P8046003

OIL SEAL

SPACER - cartidge

1шт.

18

P936337

SPARE PART SET

KIT - retainer, two-piece

1шт.

19

NSS

NOT SOLD SEPARAT

SPACER - cartridge, outer

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - cartridge, inner

1шт.

21

P2230446

O-RING

- guide, inner

1шт.

P3143664

CARTRIDGE

KIT - spring, Includes: Ref. 22 - 30

2шт.

22

NSS

NOT SOLD SEPARAT

SCREW - cartridge

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - screw

1шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - spring, upper

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - spring

2шт.

28

NSS

NOT SOLD SEPARAT

GUIDE - spring, lower

1шт.

29

NSS

NOT SOLD SEPARAT

SPOOL - regulating

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - spool return

1шт.

31

NSS

NOT SOLD SEPARAT

SECTION - valve body

1шт.
