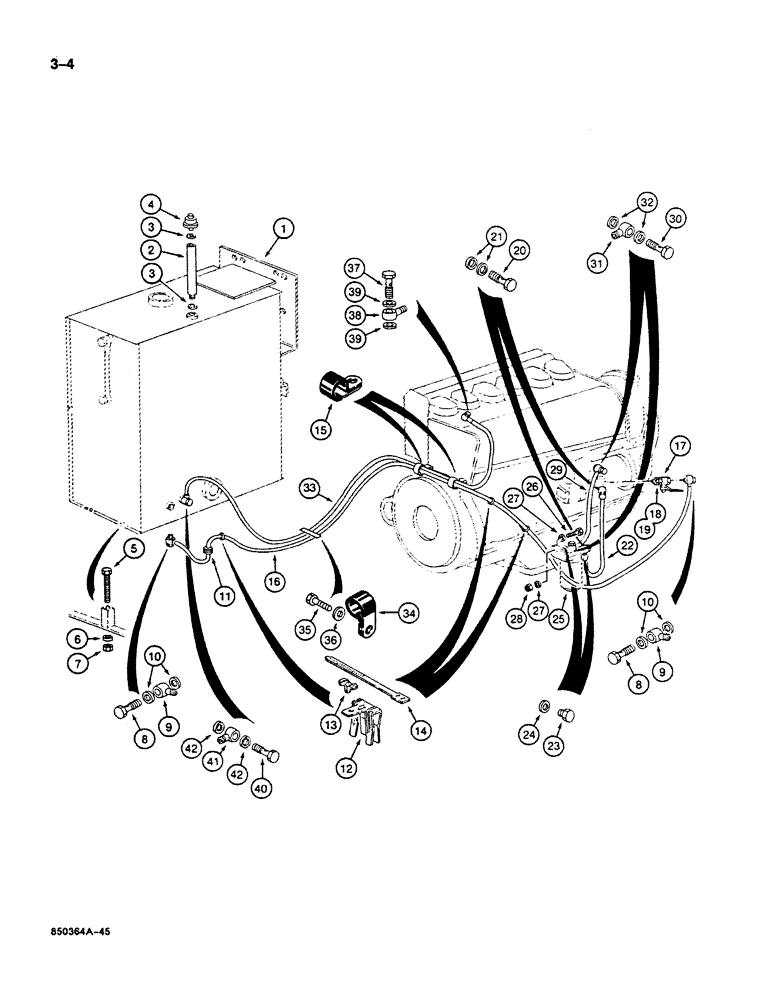

Запчасти Case 125B (3-4) - FUEL LINES AND FITTINGS, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (03) - FUEL SYSTEM

1

P1240287

FUEL TANK

TANK - fuel, see Figure 3-2 for mounting and fuel filler cap

1шт.

2

P1243244

SUPPORT

PIPE - extension, breather

1шт.

3

P45239

WASHER, SEALING

GASKET - pipe to breather and tank

2шт.

4

P50586

BREATHER

- fuel tank

1шт.

5

P32678

SCREW

BOLT - hex head, 12 mm x 100 mm, full threaded, tank mounting

4шт.

6

P3528793

WASHER

SPACER - tank mounting bolt

4шт.

7

P34596

LOCK NUT

NUT - hex, tank mounting bolt

4шт.

8

P730011

BANJO BOLT

BOLT - fuel hose connector

2шт.

9

P1337052

FITTING

CONNECTOR - fuel hose

2шт.

10

P45239

WASHER, SEALING

GASKET - fuel hose connector

4шт.

11

P741419

GROMMET

- fuel supply hose

1шт.

12

P1436963

CLASP

CLIP - strap retainer

3шт.

13

P2036939

CLASP

RETAINER - strap

3шт.

14

P336923

CLAMP

TIE STRAP - hose

3шт.

15

P136904

CLAMP

- fuel, Serial Range: hoses-engine

2шт.

16

REF

INSTRUCTION

HOSE - fuel, tank to engine, 10.5 ft (3.2 m) long, cut from P3682

1шт.

17

P837836

COCK

VALVE - fuel shutoff

1шт.

18

P3237591

FITTING

ADAPTER - shutoff valve at pump

1шт.

19

P45239

WASHER, SEALING

GASKET - adapter

1шт.

20

P33073

BOLT

BOLT - fuel hose connector

2шт.

21

P146093

WASHER, SEALING

GASKET - fuel hose connector

4шт.

22

P4931974

DEUTZ PART

HOSE - fuel, Serial Range: pump-filter

1шт.

23

P1737466

DEUTZ PART

PLUG - fuel filter adapter

2шт.

24

P246051

DEUTZ PART

GASKET - plug

2шт.

25

REF

INSTRUCTION

FILTER - fuel, see Figure 2-14 for head and filter element

1шт.

26

P233830

SCREW

BOLT - fuel filter mounting

2шт.

27

P3528794

WASHER

SPACER - filter mounting bolt

4шт.

28

P134596

SAFETY NUT

NUT - hex, filter mounting bolt

2шт.

29

REF

INSTRUCTION

HOSE - fuel, filter to engine, 1.3 ft (0.4 m) long, cut from P3682

1шт.

30

P33073

BOLT

BOLT - fuel hose connector

2шт.

31

P1337052

FITTING

CONNECTOR - fuel hose

2шт.

32

P146093

WASHER, SEALING

GASKET - fuel hose connector

4шт.

33

REF

INSTRUCTION

HOSE - fuel return to tank, 5.25 ft (1.6 m) long, cut from P3683

1шт.

34

P136904

CLAMP

- fuel return hose

1шт.

35

120100

BOLT,M6 x 20mm, Cl 8.8

Hose clamp Hex, M6 x 20, 8.8

1шт.

36

P3528799

WASHER

SPACER - clamp bolt

1шт.

37

P733063

BOLT

BOLT - fuel hose connector

1шт.

38

P1337053

FITTING

CONNECTOR - fuel return hose, at engine

1шт.

39

P246001

COPPER SEAL

GASKET - fuel hose connector

2шт.

40

P730090

BANJO BOLT

BOLT - fuel hose connector

1шт.

41

P1337053

FITTING

CONNECTOR - fuel return hose, at fuel tank

1шт.

42

P45297

WASHER, SEALING

GASKET - fuel hose connector

2шт.
