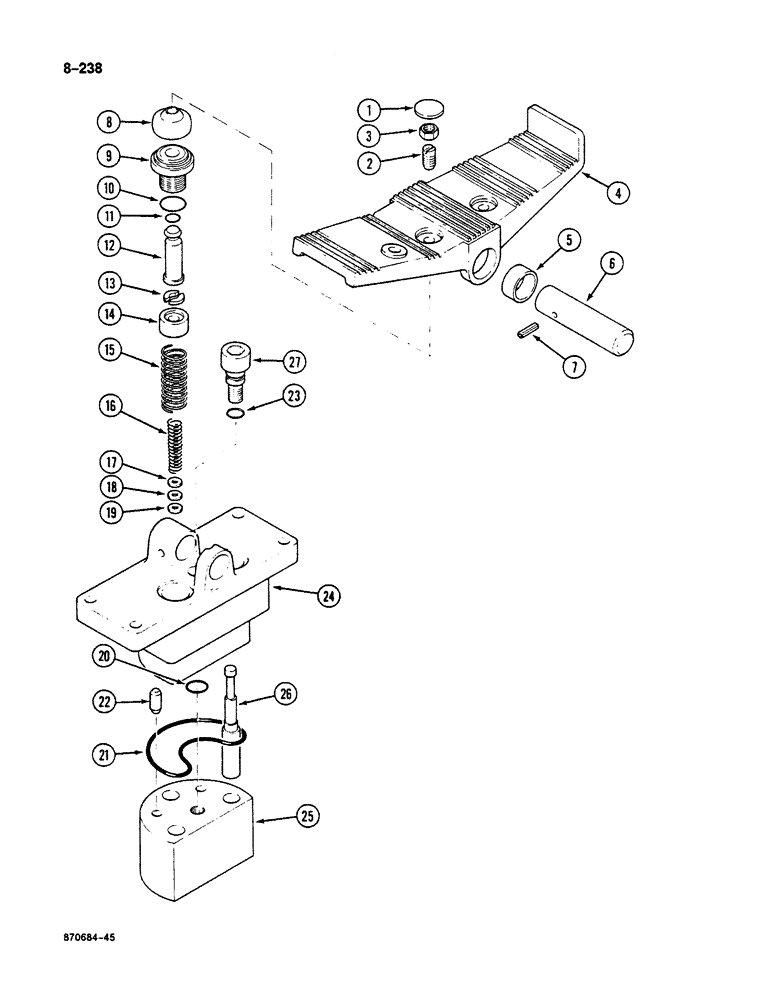

Запчасти Case 125B (8-238) - FOOT CONTROL VALVE - REXROTH, P.I.N. 74631 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

P1643394

BLOCK ASSY.

CONTROL VALVE ASSEMBLY - foot, Rexroth manufactured, if used, see Figure 8-240 for Monsun-Tison manufactured foot control valve, Includes: Ref. 1 - 27

2-3шт.

P5242747

PEDAL

ASSEMBLY - foot, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - pedal set screw

1шт.

2

P3533052

SCREW

SET SCREW - foot pedal

1шт.

3

P34211

NUT

- hex, jam

1шт.

4

NSS

NOT SOLD SEPARAT

PEDAL - valve control

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - pedal

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pedal pivot

1шт.

7

NSS

NOT SOLD SEPARAT

ROLL PIN - pivot shaft

1шт.

P3749679

KIT

PISTON ASSEMBLY - foot control valve, Includes: Ref. 8 - 12

2шт.

8

NSS

NOT SOLD SEPARAT

BOOT - piston

1шт.

Part of Seal Kit, P/N P2649692

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - piston

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston guide, outer

1шт.

Part of Seal Repair Kit, P/N P5449619

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston guide, inner

1шт.

Part of Seal Repair Kit, P/N P5449619

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - foot control valve

1шт.

P5449661

KIT

- spring and shim, Includes: Ref. 13 - 19

2шт.

13

NSS

NOT SOLD SEPARAT

ORIFICE - spring guide

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - outer

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - inner

1шт.

17

P1545342

BLOCK

SHIM - 0.005" (0.1 mm) thick

1шт.

18

P1545342

BLOCK

SHIM - 0.008" (0.2 mm) thick

1шт.

19

P1545343

BLOCK

SHIM - 0.020" (0.5 mm) thick

1шт.

P5449620

KIT

- seal, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - body to block, small

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - body to block, large

1шт.

22

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: block-body

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - retainer stud

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - foot control valve

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - foot pedal mounting

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - foot control valve

2шт.

27

NSS

NOT SOLD SEPARAT

STUD - retainer, foot control valve

1шт.

P5449619

SEAL PACKAGE

KIT - seal repair, includes Refs. 8, 10 and 11

1шт.
