(8-236) - FOOT CONTROL VALVE - P2643318, IF USED, P.I.N. 74251 THROUGH 74630

Запчасти Case 125B (8-236) - FOOT CONTROL VALVE - P2643318, IF USED, P.I.N. 74251 THROUGH 74630 (08) - HYDRAULICS

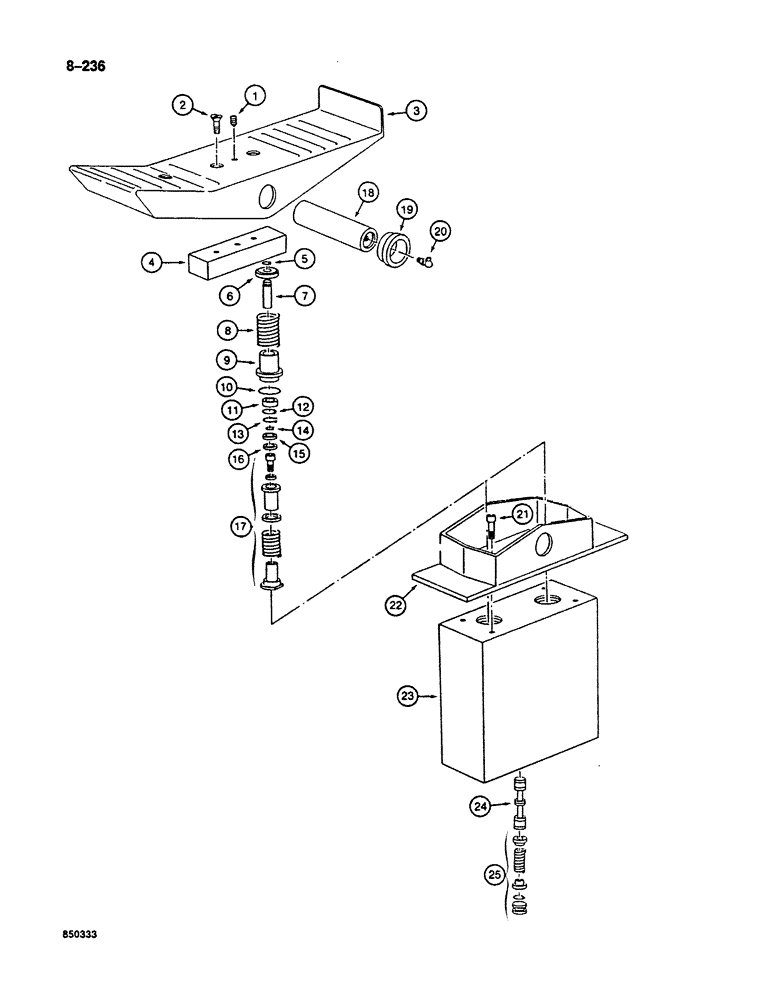

Схема запчастей Case 125B - (8-236) - FOOT CONTROL VALVE - P2643318, IF USED, P.I.N. 74251 THROUGH 74630 (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P2643318

BLOCK ASSY.

CONTROL VALVE ASSEMBLY - foot, see Figure 8-238 or 8-240 for control valves , Includes: Ref. 1 - 25, Serial Range: 74631-74963

2-3шт.

P2643318

BLOCK ASSY.

CONTROL VALVE ASSEMBLY - foot, see Figure 8-238 or 8-240 for control valves , Includes: Ref. 1 - 25, Serial Range: 21801-21868

2-3шт.

P2643318

BLOCK ASSY.

CONTROL VALVE ASSEMBLY - foot, see Figure 8-238 or 8-240 for control valves, Includes: Ref. 1 - 25, Start Serial: 26801

2-3шт.

P4842792

PEDAL

ASSEMBLY - foot, Includes: Ref. 1 - 4

1шт.

1

P32826

SET SCREW - foot pedal

1шт.

2

P32446

SCREW

- foot pedal

2шт.

3

NSS

NOT SOLD SEPARAT

PEDAL - valve control

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK - pedal stop

1шт.

P2737753

CARTRIDGE

PISTON ASSEMBLY - foot control valve, Includes: Ref. 5 - 14

2шт.

5

NSS

NOT SOLD SEPARAT

SNAP RING - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - foot control valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - foot control valve

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

10

P1630415

O-RING

- spring guide

1шт.

11

P3946095

SEAL

- spring guide

1шт.

12

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING - large

1шт.

14

NSS

NOT SOLD SEPARAT

SNAP RING - small

1шт.

15

P1545342

BLOCK

SHIM - 0.008" (0.2 mm) thick

1шт.

16

P1545343

BLOCK

SHIM - 0.020" (0.5 mm) thick

1шт.

17

NSS

NOT SOLD SEPARAT

REGULATOR ASSEMBLY - foot control valve, component parts not serviced separately

2шт.

P4046287

SUPPORT

PLATE ASSEMBLY - foot pedal mounting, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - foot pedal pivot

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - mounting plate

2шт.

20

P45828

NIPPLE, LUBE

GREASE FITTING - lubrication, if used

1шт.

21

P1232912

SCREW

BOLT - plate mounting

4шт.

22

NSS

NOT SOLD SEPARAT

PLATE - foot pedal mounting

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - foot control valve

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - foot control valve

2шт.

25

P4046283

CARTRIDGE

SPRING ASSEMBLY - spool return, component parts not serviced separately

2шт.
