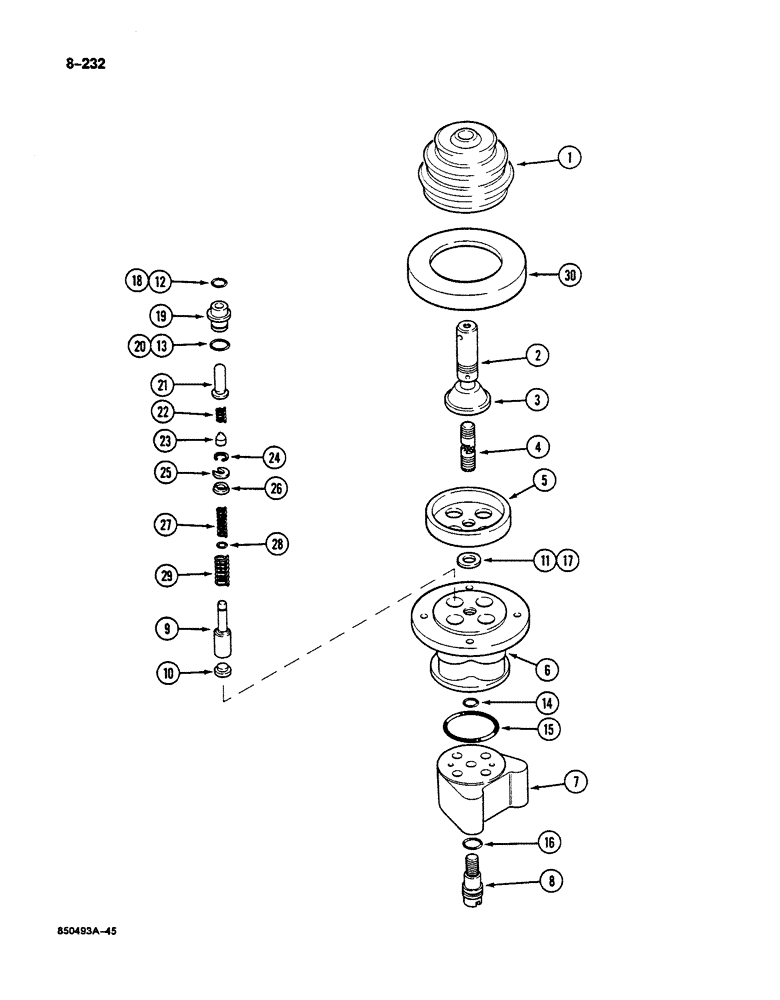

Запчасти Case 125B (8-232) - HAND CONTROL VALVE - REXROTH (08) - HYDRAULICS

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, Rexroth manufactured, if used, see Figure 8-234 for units equipped with Monsun-Tison hand control valve, Includes: Ref. 1 - 30

2шт.

1

P5446210

BELLOWS

BOOT - protective, rubber

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

3

NSS

NOT SOLD SEPARAT

CAM - control lever

1шт.

4

P5242740

COUPLING

UNIVERSAL JOINT - control lever

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - top cover

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve, upper

1шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - port, valve

1шт.

8

NSS

NOT SOLD SEPARAT

STUD - retainer, Serial Range: body-block

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - regulating

4шт.

10

NSS

NOT SOLD SEPARAT

SEAT - spring

4шт.

P3749651

SEAL PACKAGE

KIT - seal, guide, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - Teflon, plate to valve body

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - guide, small

4шт.

13

NSS

NOT SOLD SEPARAT

O-RING - guide, large

4шт.

P3749617

KIT

- seal, valve body, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve body, small

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve body, large

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - retainer stud

1шт.

P3749630

KIT

- cartridge and guide, Includes: Ref. 17 - 24

4шт.

17

NSS

NOT SOLD SEPARAT

SPACER - Teflon, plate to valve body

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - guide, small

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - cartridge

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - guide, large

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - control

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - cartridge

1шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - cartridge spring

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - guide

1шт.

P3749621

KIT

- cartridge spring, Includes: Ref. 25 - 29

4шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - spring stop

1шт.

26

NSS

NOT SOLD SEPARAT

STOP - spring

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring, 0.004" (0.1 mm) thick

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring, 0.008" (0.2 mm) thick

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring 0.020" (0.5 mm) thick

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer

1шт.

30

P7230184

PROTECTOR

RING - rubber, valve body

2шт.
