(8-230) - TRACK DRIVE SELECTOR VALVE, P.I.N. 74880 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER

Запчасти Case 125B (8-230) - TRACK DRIVE SELECTOR VALVE, P.I.N. 74880 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

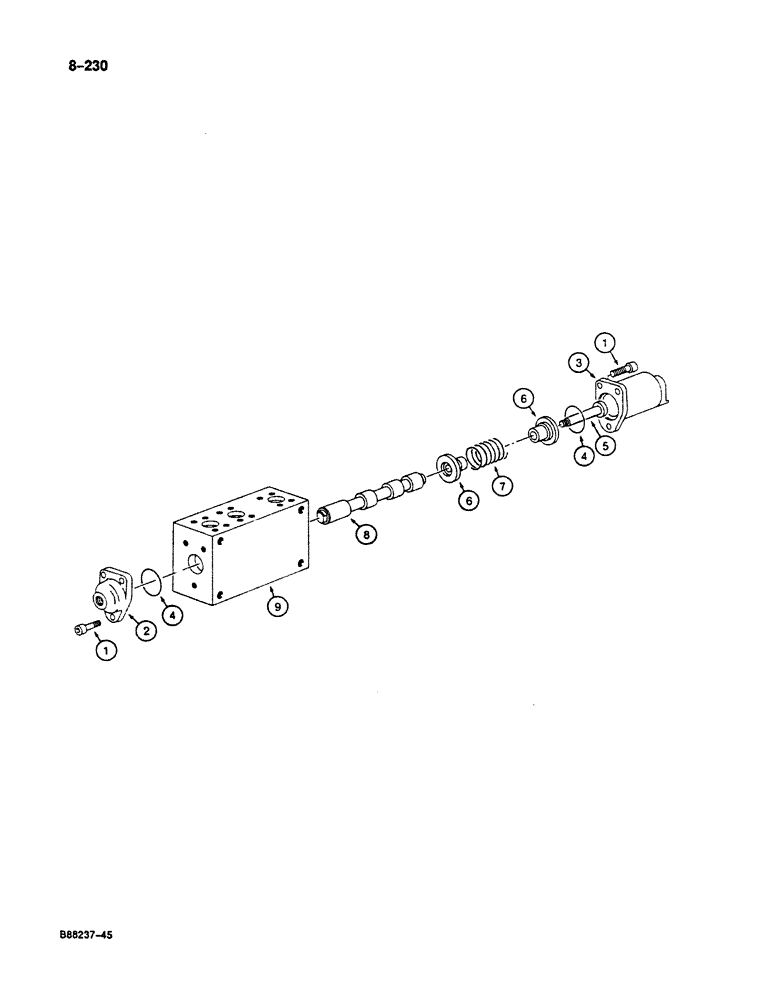

Схема запчастей Case 125B - (8-230) - TRACK DRIVE SELECTOR VALVE, P.I.N. 74880 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P3443332

SELECTOR

VALVE ASSEMBLY - selector, track drive, Includes: Ref. 1 - 9

1шт.

1

P732909

SCREW

BOLT - hex socket head, 8 mm x 25 mm, class 10.9

6шт.

2

P2643679

CAP

- end, pilot hose connection

1шт.

3

P2643678

CAP

- spool end

1шт.

4

P130412

O-RING

- end cap

2шт.

5

P1229860

END FITTING

STUD - spring retaining

1шт.

6

P5130110

CUPEL

RETAINER - spring

2шт.

7

P1338194

COMPRESSION SPRING

SPRING - spool centering

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - spool

1шт.
