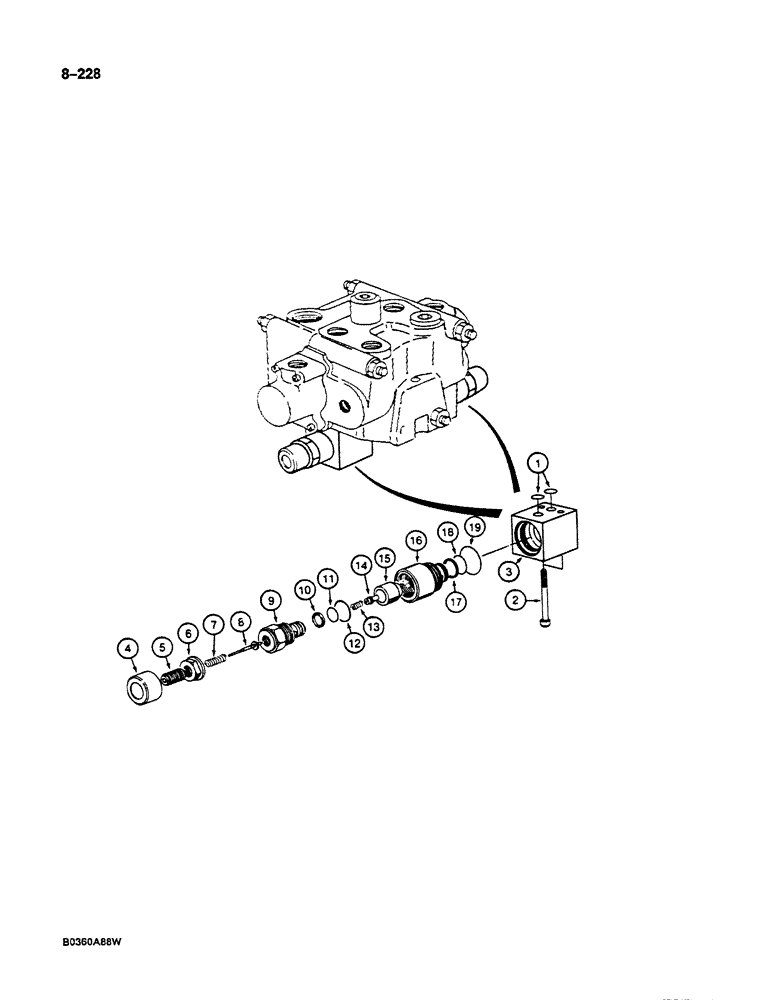

Запчасти Case 125B (8-228) - CIRCUIT RELIEF VALVE ASSEMBLY - P3143630, WITH SINGLE SECTION BLOCK HOUSING, IF USED (08) - HYDRAULICS

P3143630

CARTRIDGE

CIRCUIT RELIEF VALVE ASSEMBLY - 370 bar, Includes: Ref. 1 - 19

2шт.

1

P330406

O-RING

- circuit relief valve

2шт.

2

P1332912

SCREW

BOLT - circuit relief valve mounting

2шт.

3

P3940393

BODY

BLOCK - circuit relief valve

1шт.

P3143630

CARTRIDGE

- relief valve assembly, 370 bar, Includes: Ref. 4 - 19

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - jam, adjusting screw

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P5449633

1шт.

7

P38298

SPRING

- plunger

1шт.

8

NSS

NOT SOLD SEPARAT

PLUNGER - check

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

BACKUP RING - body

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P5449633

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P5449633

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - body, large

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P5449633

1шт.

13

P1038221

SPRING

- poppet

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, housing

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P5449633

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - housing, small

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P5449633

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - housing, large

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P5449633

1шт.

P5449633

SEAL PACKAGE

KIT - circuit relief valve seal, includes Refs. 6, 10, 11, 12, 17, 18 and 19

1шт.
