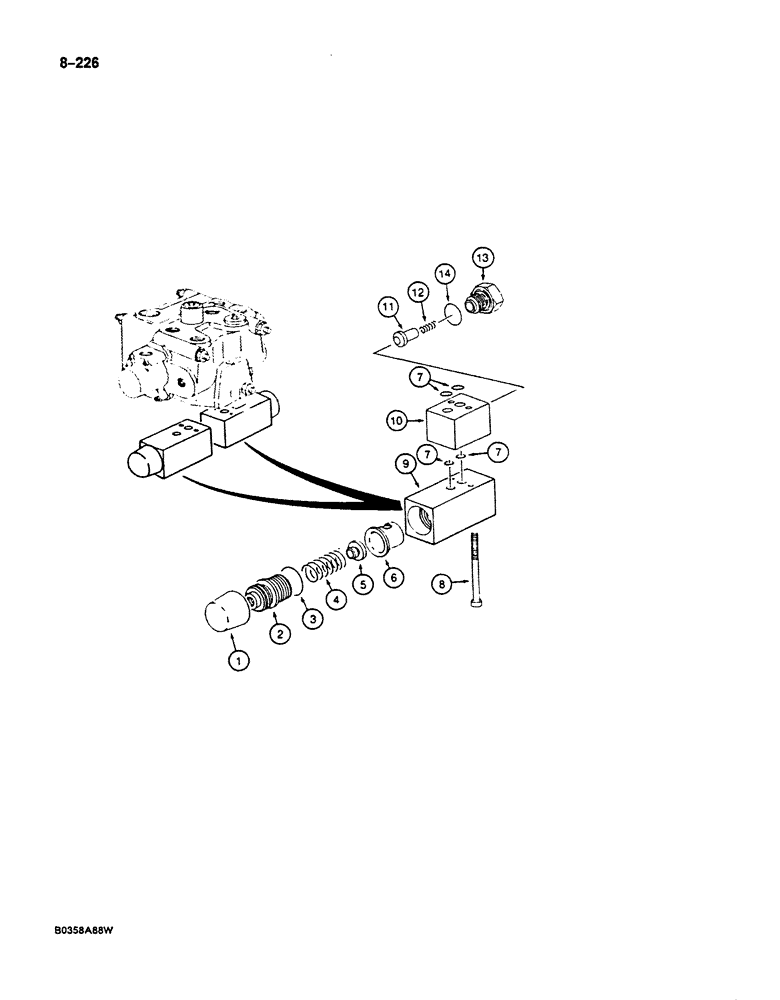

Запчасти Case 125B (8-226) - CIRCUIT RELIEF VALVE ASSEMBLY - P2643606, WITH TWO SECTION BLOCK HOUSING, IF USED (08) - HYDRAULICS

P2643606

BOX

CIRCUIT RELIEF VALVE ASSEMBLY - 370 bar, Includes: Ref. 1 - 14

2шт.

1

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - adjusting screw

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P3749656

1шт.

4

P38278

SPRING

- circuit relief valve

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - circuit relief valve

4шт.

Part of Circuit Relief Valve Seal Kit, P/N P3749656

1шт.

8

P1532910

SCREW

BOLT - circuit relief valve mounting

2шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - circuit relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - circuit relief valve, upper

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - check

1шт.

12

P38277

SPRING

- poppet

1шт.

13

P2537443

PLUG

- check valve

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Circuit Relief Valve Seal Kit, P/N P3749656

1шт.

P3749656

SEAL PACKAGE

KIT - circuit relief valve seal repair, includes Refs. 3, 7 and 14

1шт.
