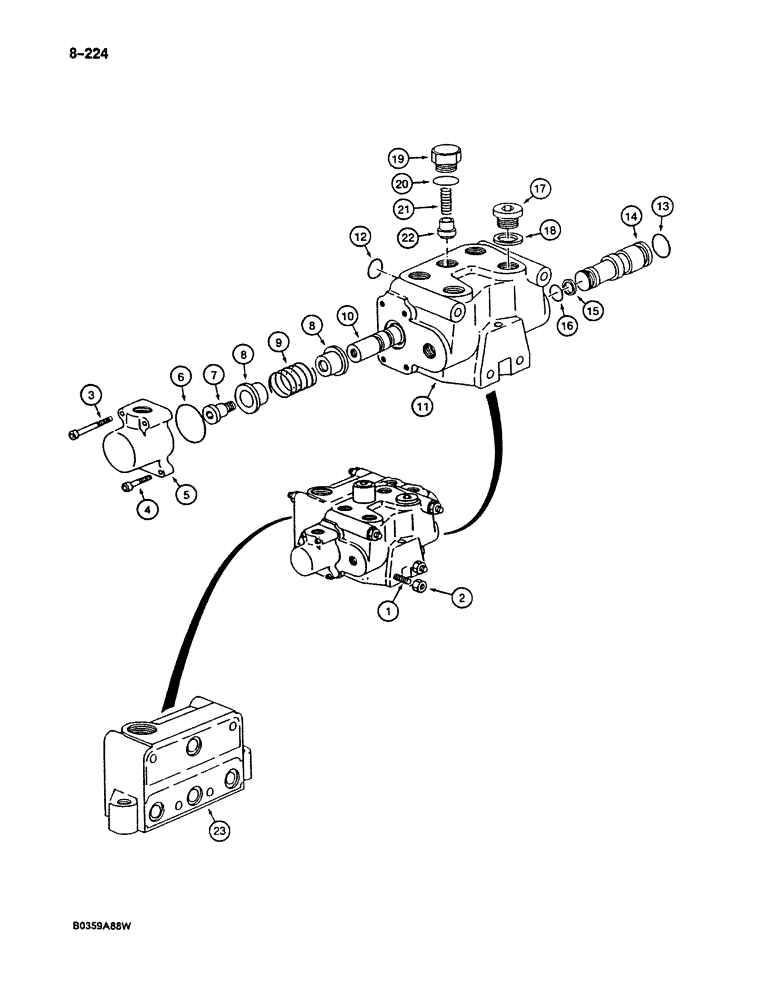

Запчасти Case 125B (8-224) - CONTROL VALVE FOR OPTIONS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

1

P2527712

TRUSS ROD

STUD - section retaining

4шт.

2

P1634589

NUT

- hex

8шт.

P2243690

DISTRIBUTOR

SECTION ASSEMBLY - inlet, Includes: Ref. 3 - 22

1шт.

3

P432913

SCREW

BOLT - mounting, upper

4шт.

4

P32911

SCREW

BOLT - mounting, lower

4шт.

5

P2241022

CASE

CAP - spool

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING - cap

2шт.

Part of Section Seal Repair Kit, P/N P3749648

1шт.

7

P2033090

SCREW

BOLT - spool

2шт.

8

P8230112

CUPEL

SEAT - spring

4шт.

9

P38259

SPRING

- spool

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

11

NSS

NOT SOLD SEPARAT

SECTION - inlet

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - section

4шт.

Part of Section Seal Repair Kit, P/N P3749648

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - plug, large

1шт.

Part of Section Seal Repair Kit, P/N P3749648

1шт.

14

P2537402

BLANK-OFF PLUG

PLUG - section

1шт.

15

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

Part of Section Seal Repair Kit, P/N P3749648

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Section Seal Repair Kit, P/N P3749648

1шт.

P2537410

PLUG

ASSEMBLY - section, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - plug

1шт.

19

P2537433

PLUG

- load check valve

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Section Seal Repair Kit, P/N P3749648

1шт.

21

P38283

SPRING

- poppet

1шт.

22

P2643624

VALVE POPPET

POPPET - load check valve

1шт.

23

P2243693

ELEMENT

SECTION - outlet

1шт.

P3749648

KIT

- section seal repair, includes Refs. 6, 12, 13, 15, 16 and 20

1шт.
