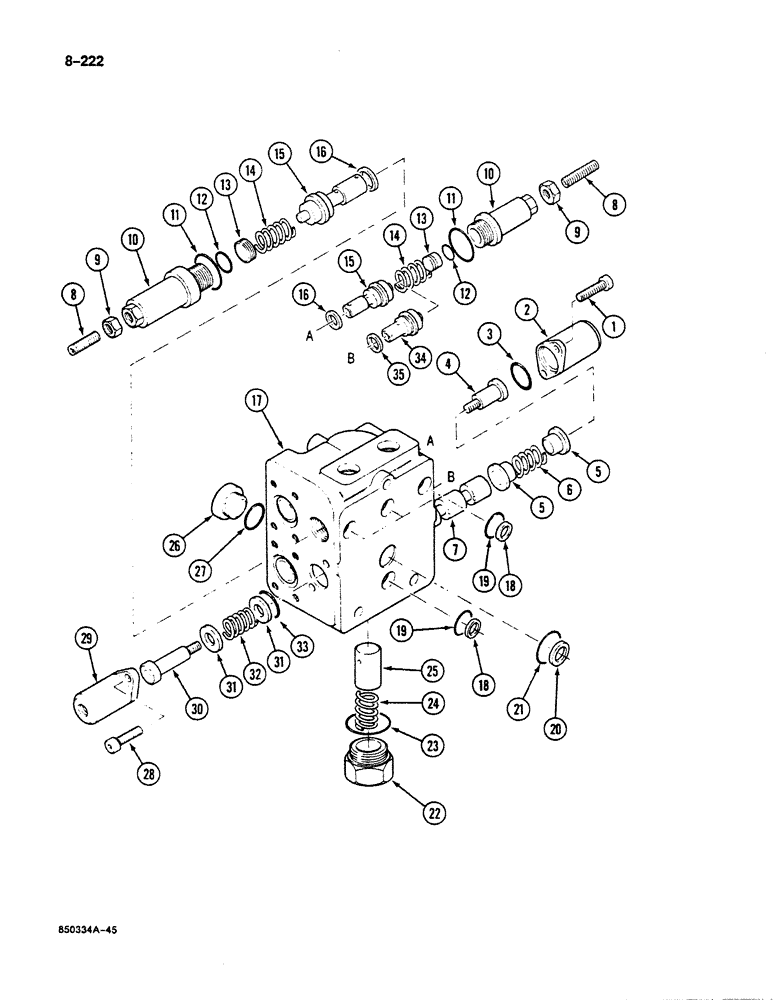

Запчасти Case 125B (8-222) - SWING & DRIVE CONTROL VALVE, SWING CONTROL VALVE SECTION P.I.N. 74251-74963,21801-21868, 26801 & AFT (08) - HYDRAULICS

P3143607

DISTRIBUTOR

SECTION ASSEMBLY - swing control valve, Includes: Ref. 1 - 35

1шт.

1

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

2шт.

2

P1640401

CAP

- end, swing control valve spool

1шт.

3

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- end cap

1шт.

4

P930008

END FITTING

STUD - spring retaining

1шт.

5

P2328851

CUPEL

RETAINER - spring

2шт.

6

P1838162

COMPRESSION SPRING

SPRING - swing control valve

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - swing control valve

1шт.

8

P32850

SCREW

SET SCREW - adjusting

3шт.

9

P34564

NUT

- hex, locking

3шт.

10

P3143608

CAP

BODY - relief valve

3шт.

11

P130486

O-RING

- relief valve body

3шт.

12

P1630451

O-RING

- seat

3шт.

13

P1229891

TAPPET

SEAT - plunger

3шт.

14

P1538128

SPRING

- plunger

3шт.

P2643399

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 15 and 16

2шт.

15

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

16

P545234

SEAL

- plunger

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - swing control valve

1шт.

18

P1745337

BACK-UP RING

RETAINING RING - small O-ring

4шт.

19

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- small

4шт.

20

P1745338

BACK-UP RING

RETAINING RING - large O-ring

1шт.

21

P1230443

O-RING

- large

1шт.

22

P930006

GUIDE

PLUG - load check valve

1шт.

23

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- plug

1шт.

24

P138102

COMPRESSION SPRING

SPRING - poppet

1шт.

25

P2643397

VALVE POPPET

POPPET - load check valve

1шт.

26

P237405

PLUG

- block

1шт.

27

P30491

O-RING

- plug

1шт.

28

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

2шт.

29

P1640401

CAP

- end, swing control valve spool

1шт.

30

P930007

END FITTING

STUD - spring retaining

1шт.

31

P3128701

WASHER

- spring retaining

2шт.

32

P1638101

COMPRESSION SPRING

SPRING - spool

1шт.

33

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- block

1шт.

P2643398

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

35

P545234

SEAL

- plunger

1шт.
