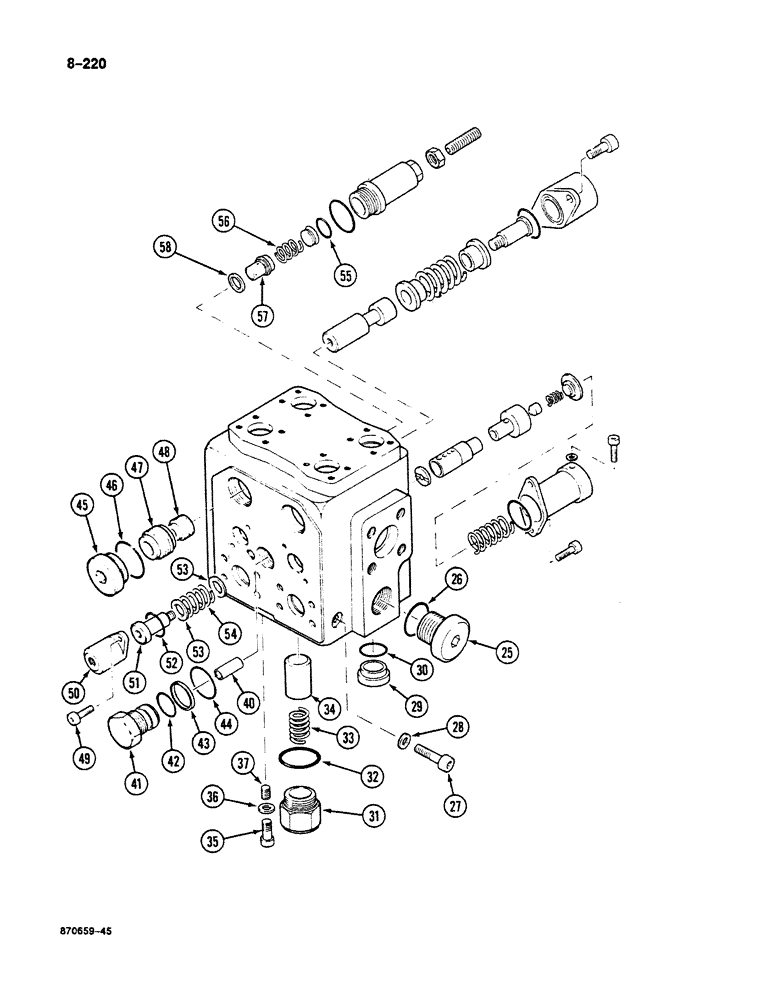

Запчасти Case 125B (8-220) - SWING & DRIVE CONTROL VALVE, DRIVE CONTROL VALVE SECTION P.I.N. 74251-74963,21801-21868, 26801 & AFT (08) - HYDRAULICS

REF

INSTRUCTION

SECTION ASSEMBLY - drive control valve, continued from Figure 8-218, Includes: Ref. 25 - 58

1шт.

25

P1037449

PLUG

- block

1шт.

26

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- plug

1шт.

27

P932912

SCREW

- Allen head, block, side

2шт.

28

P1446072

WASHER

SEAL - screw

2шт.

29

P1337445

PLUG

ASSEMBLY - block, Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

31

P390006

BODY - load check valve

2шт.

32

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- valve body

2шт.

33

P138102

COMPRESSION SPRING

SPRING - poppet

2шт.

34

P2643397

VALVE POPPET

POPPET - load check valve

2шт.

35

P32919

SCREW

- Allen head, block, bottom

2шт.

36

P2646060

BACK-UP RING

SEAL - screw

2шт.

37

P233094

SCREW

PLUG - block

2шт.

P5137709

SHIN

VALVE - speed regulating, Includes: Ref. 38 - 44

1шт.

38

RESERVED

1шт.

39

RESERVED

1шт.

40

NSS

NOT SOLD SEPARAT

PISTON - speed regulating valve

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - speed regulating valve

1шт.

42

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- small

1шт.

43

P1145245

BACK-UP RING

BACKUP RING - small O-ring

1шт.

44

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- large

1шт.

45

P1737447

PLUG

- block

4шт.

46

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- plug

4шт.

47

P943367

VALVE POPPET

VALVE - anticavitaiton

4шт.

48

P1343375

VALVE POPPET

VALVE - flow check

4шт.

49

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

4шт.

50

P1640401

CAP

- end, drive valve spool

2шт.

51

P930007

END FITTING

STUD - spring retaining

2шт.

52

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- cap

2шт.

53

P3128701

WASHER

- spring retaining

4шт.

54

P1638101

COMPRESSION SPRING

SORUBG - drive valve spool

2шт.

55

P1630451

O-RING

- seat

1шт.

56

P1538128

SPRING

- plunger

1шт.

P2643398

VALVE POPPET

PLUNGER ASSEMBLY - valve

1шт.

57

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

58

P545234

SEAL

- plunger

1шт.
