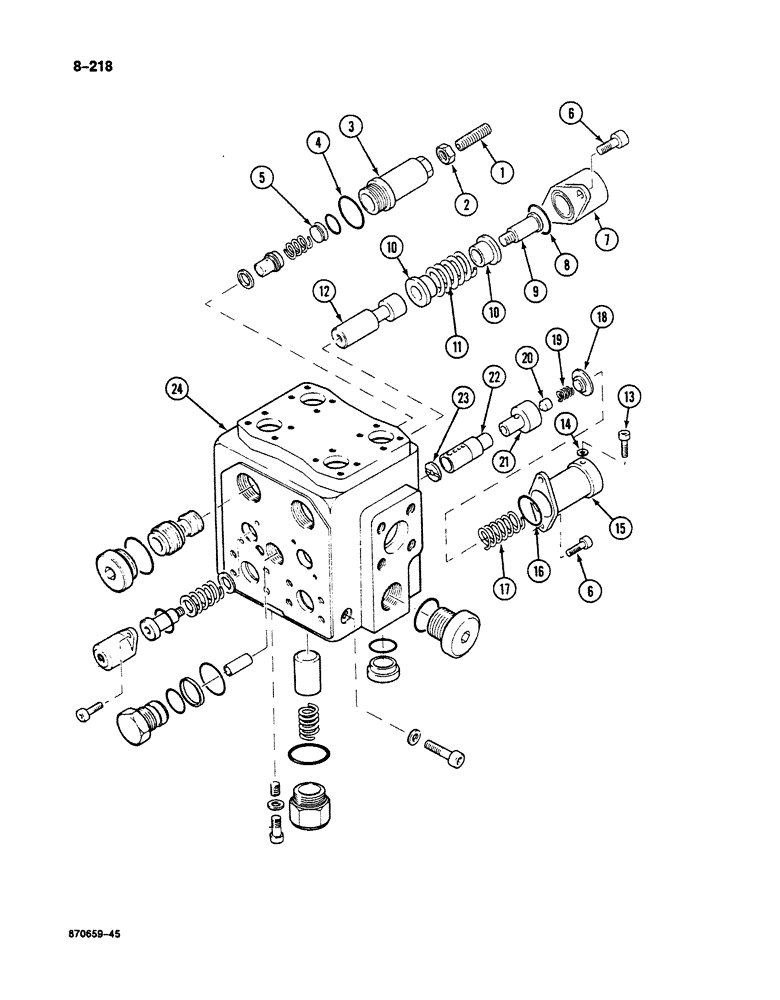

Запчасти Case 125B (8-218) - SWING & DRIVE CONTROL VALVE, DRIVE CONTROL VALVE SECTION P.I.N. 74251-74963,21801-21868, 26801 & AFT (08) - HYDRAULICS

P3143606

DISTRIBUTOR

SECTION ASSEMBLY - drive control valve, Includes: Ref. 1 - 23

1шт.

1

P32850

SCREW

SET SCREW - adjusting

1шт.

2

P34564

NUT

- hex, locking

1шт.

3

P3143608

CAP

BODY - relief valve

1шт.

4

P130486

O-RING

- relief valve body

1шт.

5

P1229891

TAPPET

SEAT - plunger

1шт.

6

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

- end cap mounting

6шт.

7

P1640401

CAP

- end, drive valve spool

2шт.

8

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- cap

2шт.

9

P930008

END FITTING

STUD - spring retaining

2шт.

10

P232851

SEAT - spring

4шт.

11

P1838162

COMPRESSION SPRING

SPRING - drive control valve

2шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - drive control valve

2шт.

13

P933005

SCREW

- air removal

1шт.

14

P1446072

WASHER

SEAL - screw

1шт.

15

P1640440

CAP

- end, speed regulating valve spool

1шт.

16

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- cap

1шт.

17

P1838159

COMPRESSION SPRING

SPRING - speed regulating valve

1шт.

18

P1429886

STOP

GUIDE - spring

1шт.

19

P738161

COMPRESSION SPRING

SPRING - poppet

1шт.

20

P1429885

VALVE POPPET

POPPET - speed regulating valve

1шт.

21

P1329621

PISTON

SHUTTLE - speed regulating valve

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - speed regulating valve

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG - spool end

1шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - drive control valve section

1шт.
