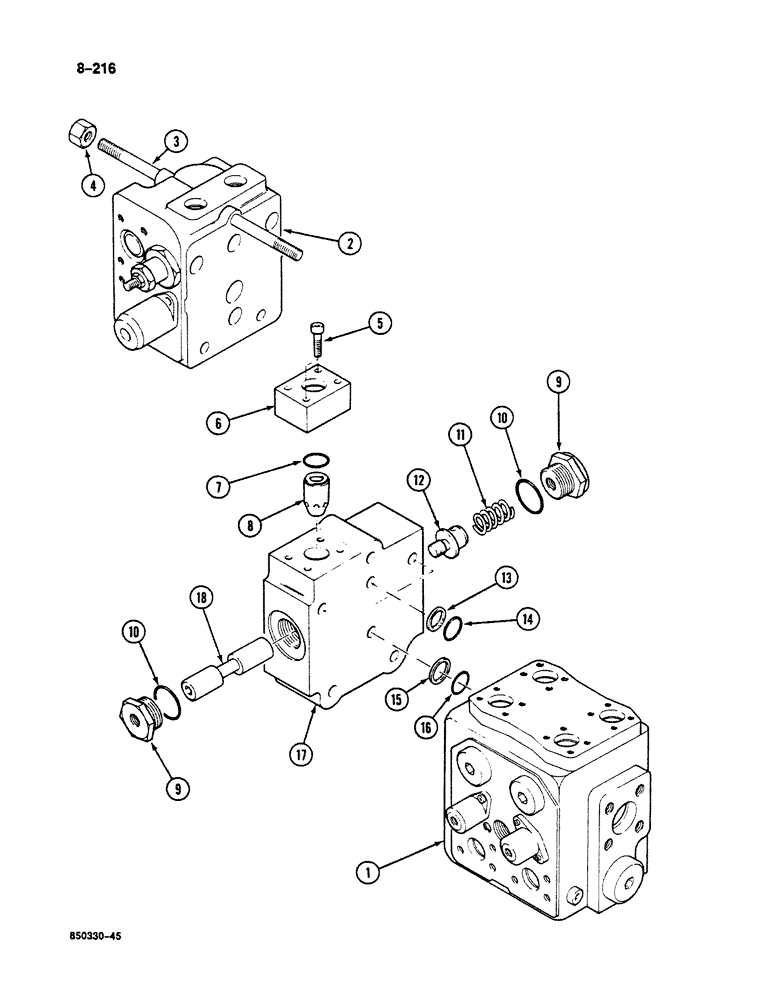

Запчасти Case 125B (8-216) - SWING & DRIVE CONTROL VALVE, CENTER BLOCK, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 & AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - drive control, parts list Figures 8-218 and 8-220

1шт.

2

REF

INSTRUCTION

VALVE - swing control, parts list Figure 8-222

1шт.

3

P1827708

THREADED ROD

STUD - valve mounting

3шт.

4

P34169

NUT

- hex

3шт.

P1743672

SELECTOR

BLOCK ASSEMBLY - center, Includes: Ref. 5 - 18

1шт.

5

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

SCREW, , Mounting Hex Soc Hd, M10 x 30, 8.8

2шт.

6

P2123325

SHIN

BLOCK - check valve

1шт.

7

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- block

1шт.

8

P1829809

VALVE POPPET

CHECK VALVE - center block

1шт.

9

P2337420

PLUG

- block

2шт.

10

P130486

O-RING

- plug

2шт.

11

P1838108

COMPRESSION SPRING

SPRING - spool

1шт.

12

P1627927

STOP

GUIDE - spring

1шт.

13

P1745337

BACK-UP RING

BACKUP RING - upper O-ring

3шт.

14

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- upper

3шт.

15

P1745338

BACK-UP RING

BACKUP RING - lower O-ring

1шт.

16

P1230443

O-RING

- lower

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - center

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - center block

1шт.
