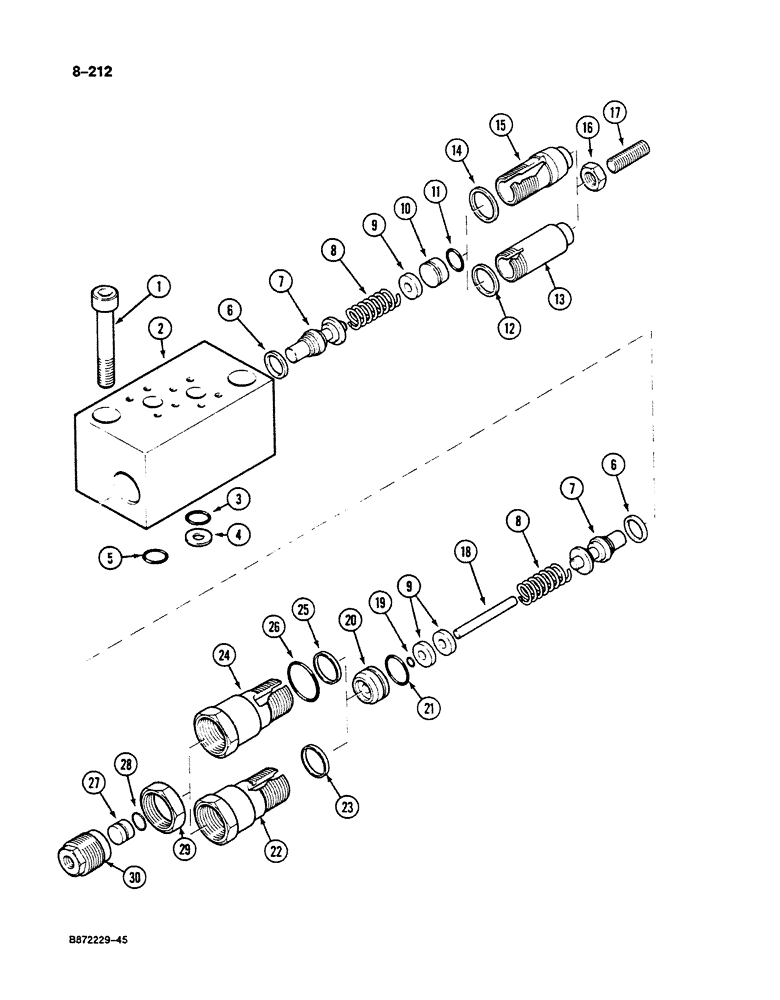

Запчасти Case 125B (8-212) - ATTACHMENT CONTROL VALVE, CIRCUIT RELIEF VALVE, P.I.N. 74845-74963, 21801-21868, 26801 & AFT (08) - HYDRAULICS

P1943629

SHOCK ABSORBER

VALVE ASSEMBLY - circuit relief, Includes: Ref. 1 - 30

1шт.

1

P532993

SCREW

BOLT - mounting

2шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

3

P630426

O-RING

- block

2шт.

4

P945258

BACK-UP RING

SPACER - block

2шт.

5

P130490

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- block

1шт.

P3237711

VALVE POPPET

PLUNGER ASSEMBLY - valve, Includes: Ref. 6 and 7

2шт.

6

P945270

WASHER, SEALING

SEAL - plunger

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

8

P1538128

SPRING

- plunger

2шт.

9

P5630199

STOP

SPACER - spring

3шт.

10

P1229891

TAPPET

PLUG - housing

1шт.

11

P1630451

O-RING

- housing

1шт.

12

P1245209

COPPER SEAL

SPACER - housing, used with P729769 housing (Ref. 13)

1шт.

13

P729769

CAP

HOUSING - valve, with short threaded area into block, if used

1шт.

14

P6146048

GASKET

SPACER - housing, used with P1540471 housing (Ref. 15)

1шт.

15

P1540471

CAP

HOUSING - valve, with long threaded area into block, if used

1шт.

16

P34564

NUT

- locking

1шт.

17

P33085

SCREW

SET SCREW - adjusting

1шт.

18

P1229892

TAPPET

ROD - plunger

1шт.

19

P1230429

O-RING

- rod, small

1шт.

20

P7230101

GUIDE

RETAINER - spring

1шт.

21

P1230465

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- spring retainer, large

1шт.

22

P1540472

CAP

HOUSING - valve, without O-ring (Ref. 26), if used

1шт.

23

P6146048

GASKET

SPACER - housing, used with P1540472 housing (Ref. 22)

1шт.

24

P729770

CAP

HOUSING - valve, with O-ring (Ref. 26), if used

1шт.

25

P1245209

COPPER SEAL

SPACER - housing, used with P729770 housing (Ref. 24)

1шт.

26

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- used with P729770 housing only

1шт.

27

P1029414

PISTON

- plunger

1шт.

28

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- piston

1шт.

29

P1634547

LOCK NUT

NUT - locking, adjusting screw

1шт.

30

P1737433

PLUG

SCREW - adjusting

1шт.
