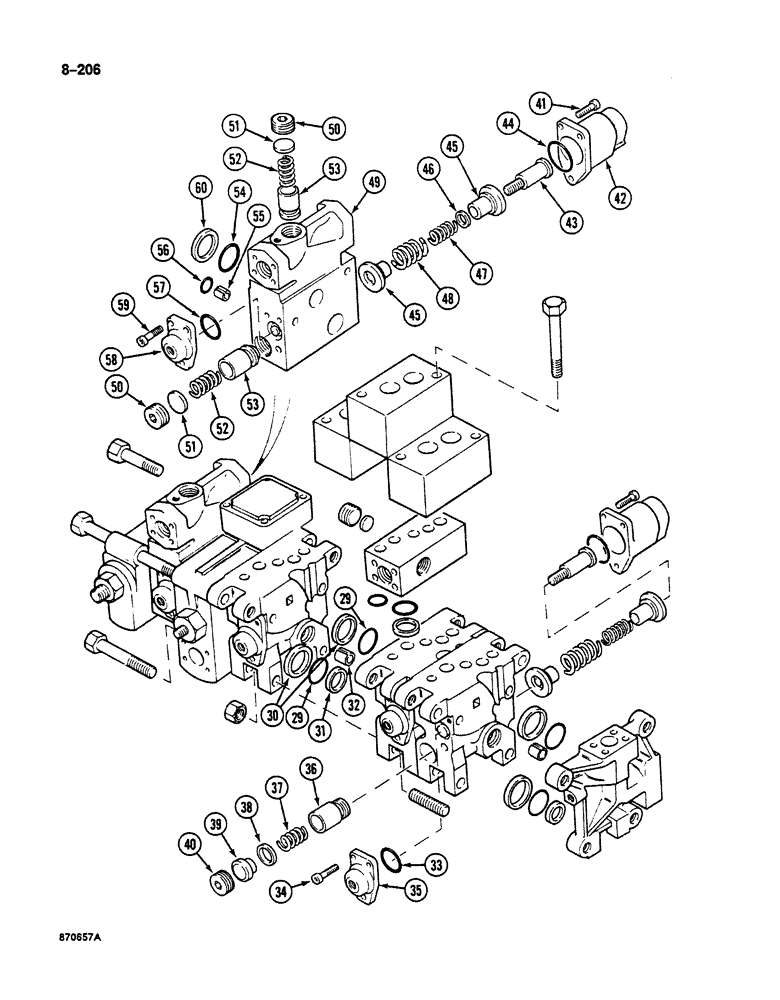

Запчасти Case 125B (8-206) - ATTACHMENT CONTROL VALVE, BOOM, ARM & TOOL SECTIONS & PARALLEL ARM SECTION (08) - HYDRAULICS

REF

INSTRUCTION

SECTION ASSEMBLY - boom, arm, and tool, continued from Figure 8-204, Includes: Ref. 29 - 40

3шт.

29

P630426

O-RING

- body

2шт.

30

P945258

BACK-UP RING

BACKUP RING - copper

2шт.

31

P2045403

WASHER

BACKUP RING - steel

1шт.

32

P35754

SPLIT PIN/SAFETY PIN

ROLL PIN - body

2шт.

33

P130412

O-RING

- cover

1шт.

34

P732909

SCREW

BOLT - mounting

3шт.

35

P2643679

CAP

- end, section

1шт.

36

P929914

VALVE POPPET

POPPET - valve section

1шт.

37

P1038179

COMPRESSION SPRING

SPRING - poppet

1шт.

38

P545228

SEAL

SPACER - spring

1шт.

39

P827895

BLANK-OFF PLUG

RETAINER - spring

1шт.

40

P737441

PLUG

- body

1шт.

P2643628

DISTRIBUTOR

SECTION ASSEMBLY - parallel arm, Includes: Ref. 41 - 60

1шт.

41

P732909

SCREW

BOLT - mounting

3шт.

42

P2643678

CAP

- end, section

1шт.

43

P1229860

END FITTING

STUD - spring retaining

1шт.

44

P130412

O-RING

- cover

1шт.

45

P5130110

CUPEL

RETAINER - spring

2шт.

46

P2728850

SPACER

- spring

1шт.

47

P1538118

COMPRESSION SPRING

SPRING - small, inner

1шт.

48

P1538119

COMPRESSION SPRING

SPRING - large, outer

1шт.

49

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

50

P737453

PLUG

- section

2шт.

51

P645050

HOLE PLUG BUTTON

SPACER - plug

2шт.

52

P738197

COMPRESSION SPRING

SPRING - poppet

2шт.

53

P529922

VALVE

POPPET - section

2шт.

54

P130490

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- block, large

2шт.

55

P35754

SPLIT PIN/SAFETY PIN

ROLL PIN - block

2шт.

56

L30522

O-RING,0.492" ID x 0.106" Width

- block, small

1шт.

57

P130412

O-RING

- end cap

1шт.

58

P2643679

CAP

- end, section

1шт.

59

P732909

SCREW

BOLT - mounting

3шт.

60

P8846066

BACK-UP RING

BACKUP RING - large O-ring

2шт.
