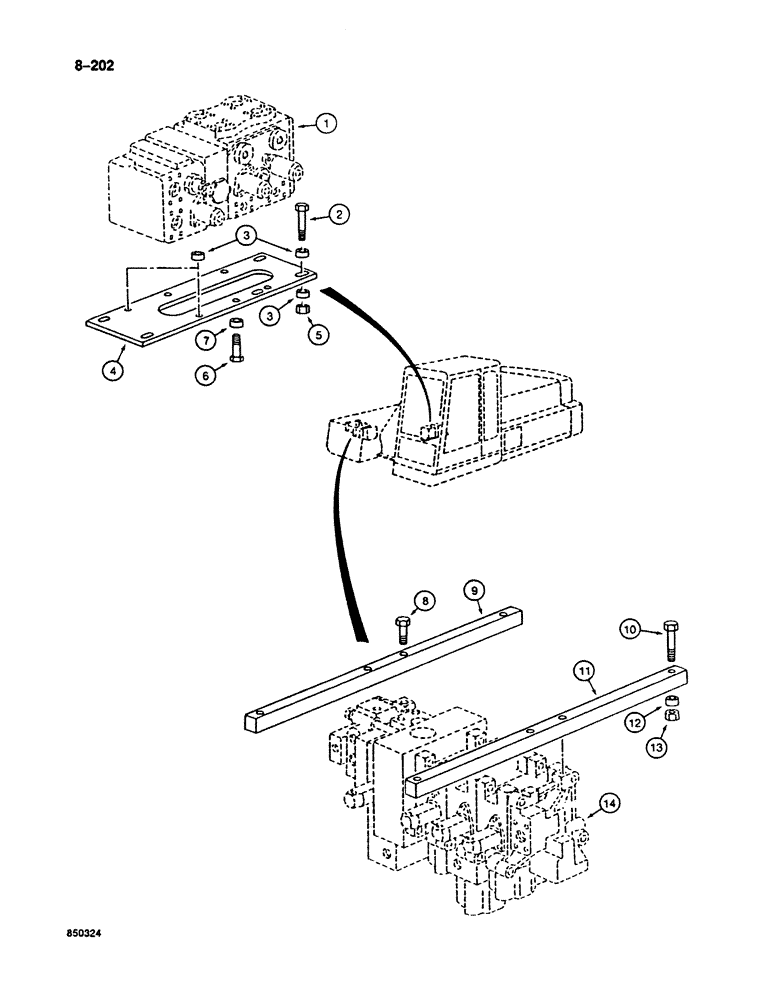

Запчасти Case 125B (8-202) - MAIN CONTROL VALVE MOUNTING PARTS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - swing and drive, parts list Figures 8-216 through 8-222

1шт.

2

P133805

SCREW

BOLT - mounting

4шт.

3

P3528790

WASHER

SPACER - bolt

10шт.

4

P3423339

HOOD

PLATE - valve mounting

1шт.

5

P134547

SAFETY NUT

NUT - hex

4шт.

6

P33803

SCREW

BOLT - mounting

4шт.

7

P4328733

WASHER

SPACER - bolt

4шт.

8

P133893

SCREW

BOLT - mounting, right-hand bracket

4шт.

9

P4020343

PLATE,SMALL SQUARE

BRACKET - valve mounting, right-hand

1шт.

10

P133803

SCREW

BOLT - mounting, left hand bracket

4шт.

11

P4020344

PLATE,SMALL SQUARE

BRACKET - valve mounting, left-hand

1шт.

12

P3528791

WASHER

SPACER - bolt

4шт.

13

P134584

SAFETY NUT

NUT - hex

4шт.

14

REF

INSTRUCTION

CONTROL VALVE - attachment, parts list Figures 8-204 through 8-214

1шт.
