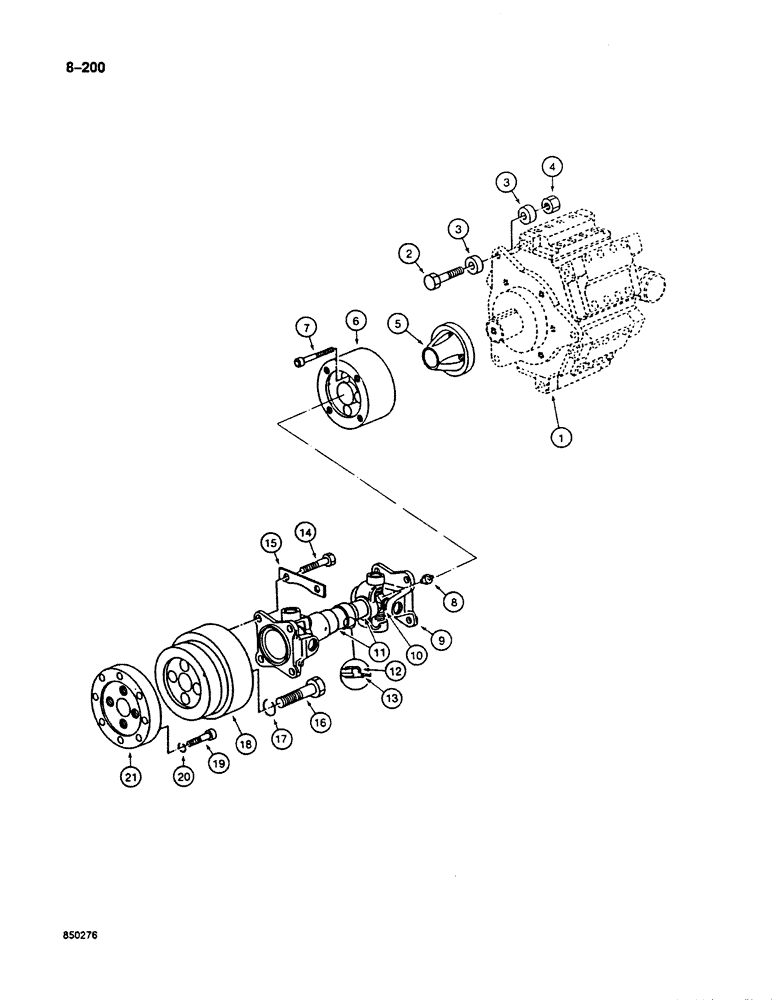

Запчасти Case 125B (8-200) - HYDRAULIC PUMP TO ENGINE COUPLINGS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, parts list Figure 8-198

1шт.

2

P33855

SCREW

BOLT - adapter plate

3шт.

3

P3528790

WASHER

SPACER - bolt

6шт.

4

P134547

SAFETY NUT

NUT - hex

3шт.

5

P146251

HUB

- pump

1шт.

6

P7230185

SPACER

COUPLING -, Serial Range: hub-yoke

1шт.

7

P532914

SCREW

BOLT - coupling

2шт.

P1840129

JOINT

DRIVE SHAFT ASSEMBLY - hydraulic pump, component parts not serviced separately (Replaces P40195)

1шт.

P40195

JOINT

DRIVE SHAFT ASSEMBLY - hydraulic pump (Order P1840129), Includes: Ref. 8 - 13

1шт.

8

P45838

NIPPLE, LUBE

GREASE FITTING - lubrication (replaces P45801)

3шт.

9

P40196

JAW

YOKE - flange

2шт.

10

P40038

TOGGLE

BEARING AND CROSS - yoke

2шт.

11

NSS

NOT SOLD SEPARAT

YOKE - slip, 2 piece

1шт.

12

P740485

PROTECTOR

RETAINER - seal

1шт.

13

P1446007

SEAL

- yoke

1шт.

14

P33869

BOLT,Hex, M14 x 30

Shaft mounting Hex, M14 x 30

8шт.

15

P23673

BRAKE

BRACKET - shaft mounting

4шт.

16

P732921

SCREW

BOLT - hex socket head, 16 mm x 60 mm, class 10.9, full threaded pulley mounting

4шт.

17

P34715

WASHER, LOCK

WASHER - lock

4шт.

18

P1238571

PULLEY

- fan drive

1шт.

19

P32909

SCREW

BOLT - adapter mounting

8шт.

20

P34709

WASHER

- lock

8шт.

21

P3330112

FLANGE

ADAPTER - pulley

1шт.
