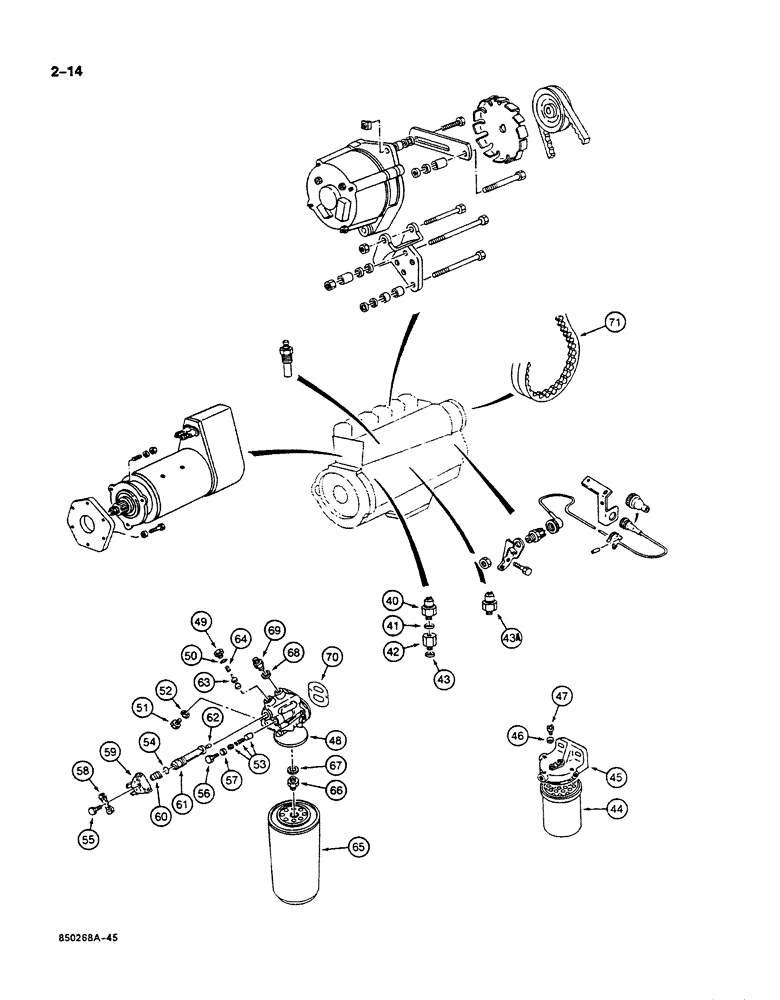

Запчасти Case 125B (2-14) - ENGINE FILTERS, ALTERNATOR & STARTER, ADAPTING PARTS TO ENG. P.I.N. 74251 - 74963, 21801 & AFT. (02) - ENGINE

40

P1241856

SWITCH

SENDER - engine oil pressure, see reference number 18, Figures 4-2 and 4-4

1шт.

41

P344419

WASHER, SEALING

WASHER - special sealing

1шт.

42

P637315

RESTRICTOR

ADAPTER -, Serial Range: sender-engine

1шт.

43

P28424

COMPOSITE SEAL

WASHER - special sealing

1шт.

43a

P1241857

IGNITION SWITCH

SENDER - engine oil pressure, see reference number 19, Figure 4-2 used on units with P.I.N. / only, Serial Range: 74251-74879

1шт.

44

P150564

CARTRIDGE

FILTER - fuel, spin on type, 1.6 qt (1.5 liter)

1шт.

45

P6546290

DEUTZ PART

HEAD - fuel filter

1шт.

46

P545207

DEUTZ PART

WASHER - copper

1шт.

47

P32548

BOLT

SCREW - filter head

1шт.

P4340356

DEUTZ PART

FILTER HEAD ASSEMBLY - engine oil, mounting hardware on Figures 4-74 through 4-86, Include: Ref. 48 - 64

1шт.

48

NSS

NOT SOLD SEPARAT

HEAD - engine oil filter

1шт.

49

P2537435

DEUTZ PART

PLUG - filter head

1шт.

50

P7546007

SEAL

- plug

1шт.

51

P4842754

DEUTZ PART

PLUG - filter head

1шт.

52

P7146072

SEAL

- plug

1шт.

53

P3749646

DEUTZ PART

PACKING SET - filter head

1шт.

54

P1630498

DEUTZ PART

O-RING - filter spool

1шт.

55

P33808

SCREW

BOLT - filter head

1шт.

56

P133857

SCREW

BOLT - filter head

2шт.

57

P545274

WASHER

- bolt

2шт.

58

P4842755

LEVER

- filter head

1шт.

59

P3828243

DEUTZ PART

PLATE - filter head

1шт.

60

P3828244

DEUTZ PART

END - spool

1шт.

61

P1737482

PLUG

SPOOL - filter head

1шт.

62

P4628702

DEUTZ PART

SLEEVE - spool

1шт.

63

P2843234

DEUTZ PART

PISTON - filter head

1шт.

64

P38255

DEUTZ PART

SPRING - piston

1шт.

65

P850589

FILTER CARTRIDGE

ELEMENT - engine oil filter, spin on type

1шт.

66

P1530586

DEUTZ PART

ADAPTER - element to filter head, Serial Range: 74251-74963

1шт.

66

P1530586

DEUTZ PART

ADAPTER - element to filter head, Serial Range: 21801-21868

1шт.

66

P1530586

DEUTZ PART

ADAPTER - element to filter head, Serial Range: 26801-26805

1шт.

67

P146097

DEUTZ PART

SEAL - element adapter, Serial Range: 74251-74963

1шт.

67

P146097

DEUTZ PART

SEAL - element adapter, Serial Range: 21801-21868

1шт.

67

P146097

DEUTZ PART

SEAL - element adapter, Serial Range: 26801-26805

1шт.

68

P146097

DEUTZ PART

SEAL - head adapter

1шт.

69

P3237518

DEUTZ PART

ADAPTER - filter head

1шт.

70

P8846091

GASKET

- filter, Serial Range: head-engine

1шт.

Ref #70 - (.75 mm thick)

1шт.

71

P938746

SET OF 2 BELTS

BELT - drive, blower, 3/8" (10 mm) wide x 43-3/8" (1100 mm) long, set of 2

1шт.
