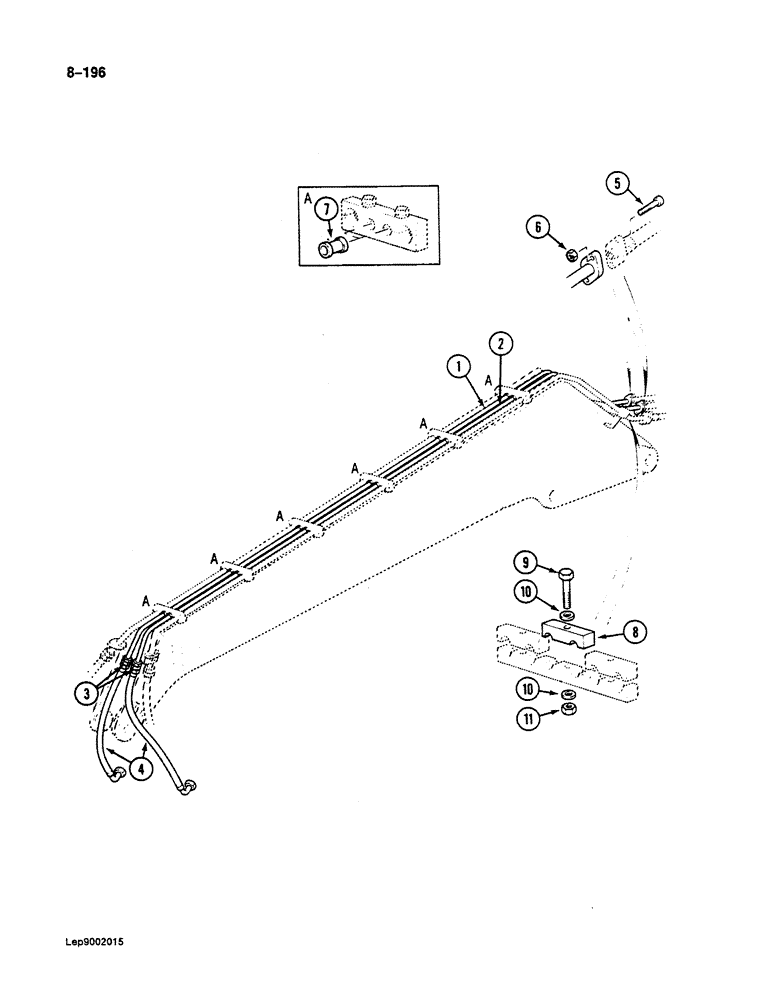

Запчасти Case 125B (8-196) - REHANDLING ARM HYDRAULIC CIRCUIT, IF USED, TUBES AT ARM, CLAMSHELL SWING FEED (08) - HYDRAULICS

1

P6349156

TUBE - clamshell swing feed, right-hand

1шт.

2

P6349157

TUBE - clamshell swing feed, left-hand

1шт.

3

P537588

UNION

ADAPTER - tube, Serial Range: flange-hose

2шт.

4

P4431914

HOSE

- 49-3/16" (1250 mm), Serial Range: long,-clamshell

2шт.

5

P1232958

SCREW

BOLT - hex head socket, 8 mm x 45 mm, grade 10.9

8шт.

6

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

8шт.

7

P741450

BUSHING

INSULATOR - tube clamp, see page 9-53 for clamps and mounting plate at arm

12шт.

8

P723472

CLAMP - tube

1шт.

9

43148

SUPPORT

BOLT - tex, 12 mm x 80 mm

1шт.

10

P4328797

WASHER

SPACER - clamp bolt, 8 mm thick

2шт.

11

337475

NUT,M12, Cl 10

- , Clamp bolt M12, Cl 10

1шт.
