(8-194) - REHANDLING ARM HYD. CIRCUIT, IF USED, TUBES AT ARM, CLAMSHELL FEED

Запчасти Case 125B (8-194) - REHANDLING ARM HYD. CIRCUIT, IF USED, TUBES AT ARM, CLAMSHELL FEED (08) - HYDRAULICS

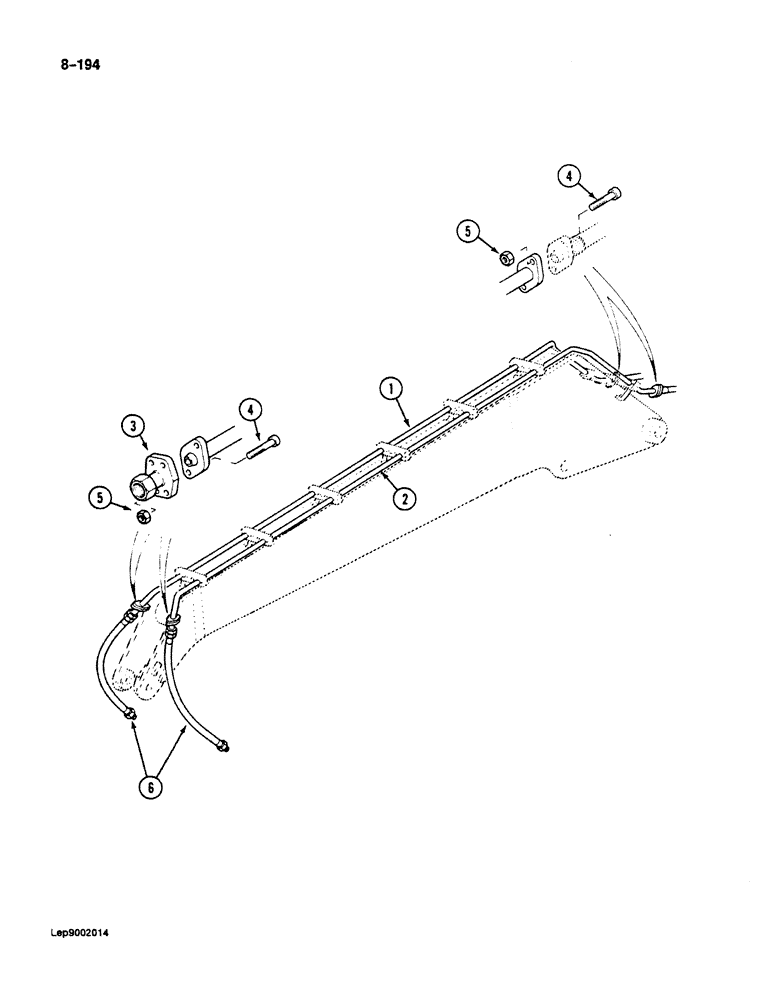

Схема запчастей Case 125B - (8-194) - REHANDLING ARM HYD. CIRCUIT, IF USED, TUBES AT ARM, CLAMSHELL FEED (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P6149161

PIPE

TUBE - clamshell feed, right-hand

1шт.

2

P6149162

PIPE

TUBE - clamshell feed, left-hand

1шт.

3

P1237529

SHIN

ADAPTER - tube, Serial Range: flange-hose

2шт.

4

L632924

SCREW

BOLT - hex, 10 mm x 55 mm, grade 10.9

8шт.

5

86500689

NUT,M10 x 1.5, Cl 10

Flange bolt M10, Cl 10

8шт.

6

P31981

HOSE

- 49-3/16" (1250 mm), Serial Range: long,-clamshell

2шт.
