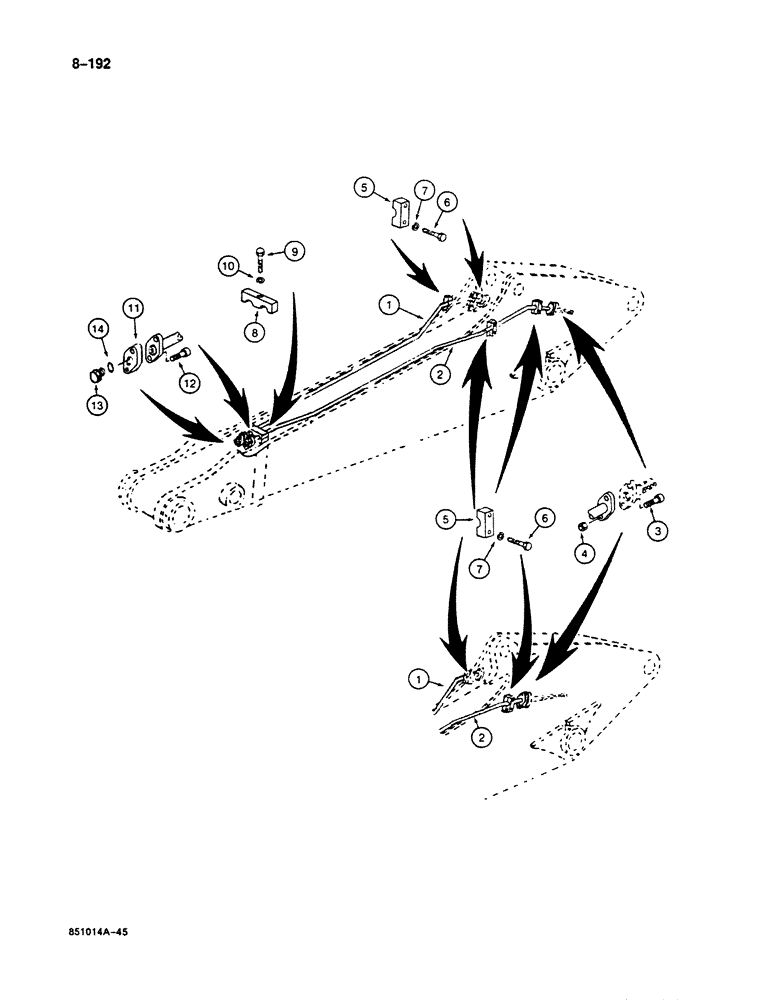

Запчасти Case 125B (8-192) - HYD. CIRCUIT FOR OPTIONS, TUBES AT ARM, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 & AFTER (08) - HYDRAULICS

1

P6249120

PIPE

TUBE - options, right-hand, used with 8 foot 3 inch (2.5 m) arm

1шт.

1

P6249122

PIPE

TUBE - options, right-hand, used with 10 foot 6 inch (3.2 m) arm

1шт.

2

P6249121

PIPE

TUBE - options, left-hand, used with 8 foot 3 inch (2.5 m) arm

1шт.

2

P6249123

PIPE

TUBE - options, left-hand, used with 10 foot 6 inch (3.2 m) arm

1шт.

3

P1232958

SCREW

BOLT - options tube, Serial Range: flange-hose

4шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

4шт.

5

P1023402

SHIN

CLAMP - tube to arm, 2 used with 8 foot 3 inch (2.5 m) arm, 4 used with 10 foot 6 inch (3.2 m) arm

2-4шт.

6

P533837

SCREW

BOLT - tube clamp

4-8шт.

7

P4328797

WASHER

SPACER - clamp bolt

4-8шт.

8

P1023404

SHIN

CLAMP - front, Serial Range: tubes-arm

1шт.

9

P533837

SCREW

BOLT - tube clamp

1шт.

10

P4328797

WASHER

SPACER - clamp bolt

1шт.

11

P637395

RESTRICTOR

PLATE - block, tube flange

2шт.

12

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Block, Serial Range: plate-flange

4шт.

13

P737470

PLUG

- hex head, block plate

2шт.

14

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- plug

2шт.
