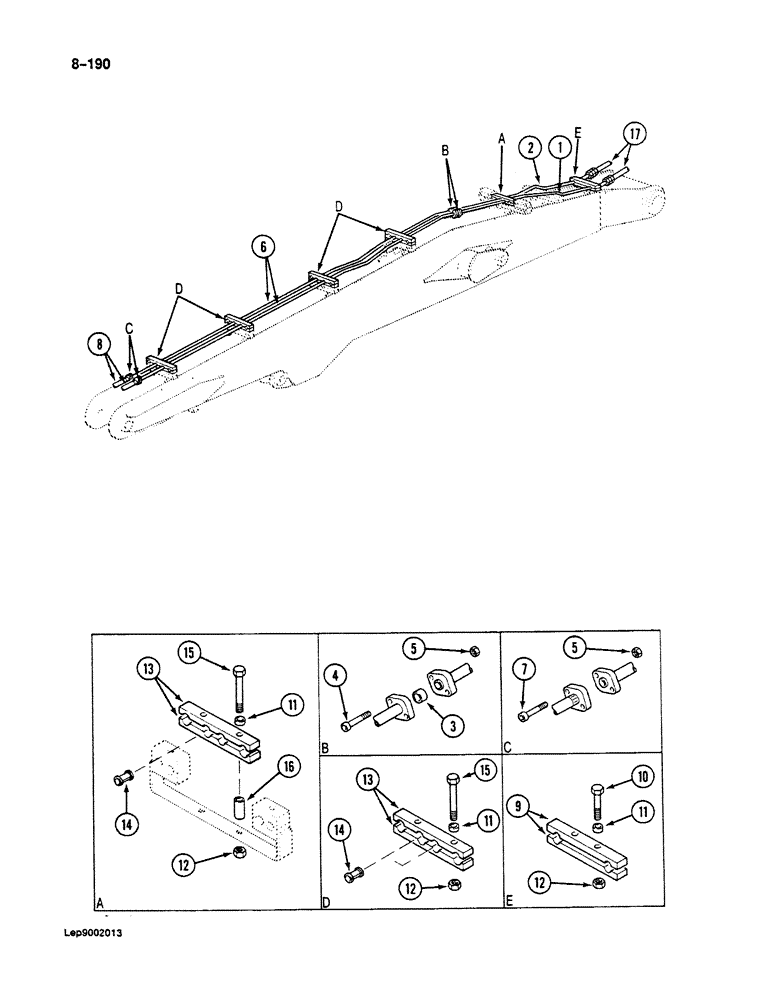

Запчасти Case 125B (8-190) - REHANDLING BOOM HYDRAULIC CIRCUIT, IF USED, TUBES AT BOOM, CLAMSHELL SWING FEED (08) - HYDRAULICS

1

P5549141

PIPE

TUBE - at boom, right-hand side

1шт.

2

P5549142

PIPE

TUBE - at boom, left-hand side

1шт.

3

P1737761

JUNCTION

ADAPTER - tube flange

2шт.

4

P1232960

SCREW

BOLT - flange, hose to tube, 8 mm x 75 mm. grade 10.9

4шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Clamp bolt

12шт.

6

P3837672

PIPE

TUBE - at boom

2шт.

7

P1232958

SCREW

BOLT - flange, hose to tube, 8 mm x 45 mm, grade 10.9

8шт.

8

P731998

HOSE

- 39-3/8" (1000 mm) long, to optional attachment

2шт.

9

P23067

SHIN

CLAMP - tube, lower section tubes

2шт.

10

P33843

SCREW

BOLT - tube clamp, 12 mm x 70 mm

2шт.

11

P4328797

WASHER

SPACER - clamp bolt, 8 mm thick

12шт.

12

337475

NUT,M12, Cl 10

- , Clamp bolt M12, Cl 10

12шт.

13

P2020333

SHIN

CLAMP - tube, center section

10шт.

14

P741448

BUSHING

INSULATOR - tube clamp, see Figure 9-52 for clamps and mounting plate at boom

10шт.

15

P433854

SCREW

BOLT - tube clamp to bracket, 12 mm x 160 mm

10шт.

16

P1229274

SPACER

- clamp bolt

2шт.

17

P31992

HOSE

- 39-3/8" (1000 mm) long, see Figure 8-160 for continuation

2шт.
