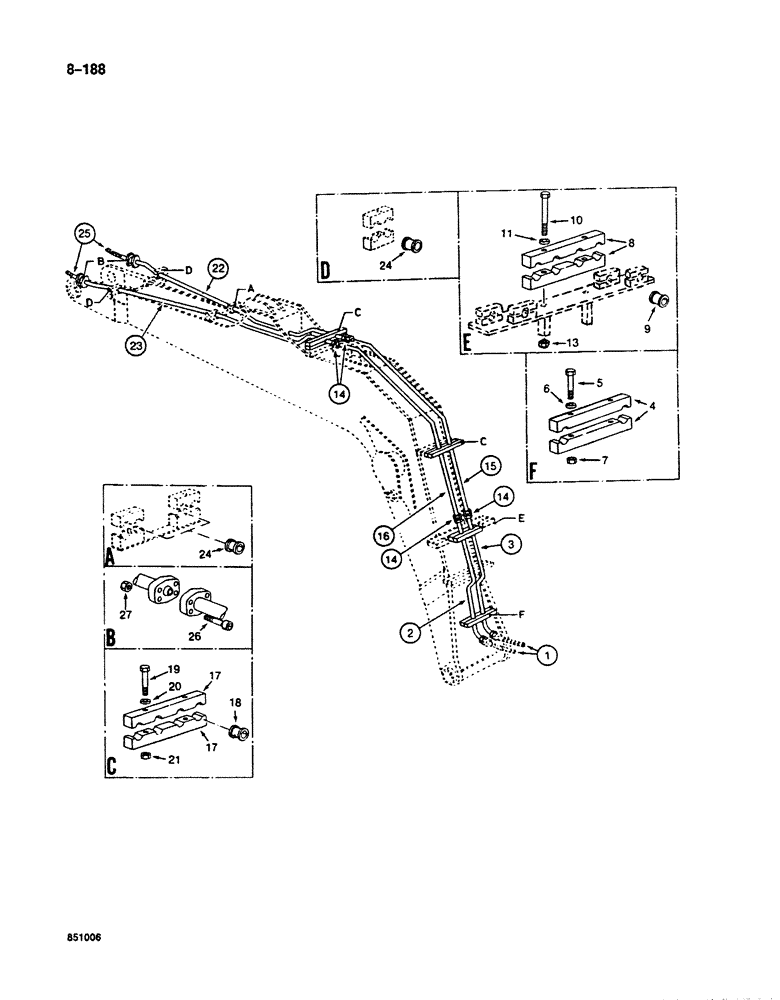

Запчасти Case 125B (8-188) - HYD. CIRCUIT FOR OPTIONS, TUBES AT BOOM, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 & AFT. (08) - HYDRAULICS

1

P31992

HOSE

- from control valve to boom tubes

2шт.

2

P6549163

PIPE

TUBE - at boom, left-hand side, lower section

1шт.

2

P6549162

PIPE

TUBE - at boom, right-hand side, lower section

1шт.

4

P23067

SHIN

CLAMP - tube, lower section tubes

2шт.

5

P33843

SCREW

BOLT - tube clamp

2шт.

6

P4328797

WASHER

SPACER - clamp bolt

2шт.

7

829-1412

NUT,M12, Cl 10.9

Clamp bolt M12, Cl 10

2шт.

8

P2020333

SHIN

CLAMP - tube, lower section tubes, see Figure 9-44 for clamp mounting bracket at boom

2шт.

9

P741448

BUSHING

INSULATOR - tube clamp

2шт.

10

P433854

SCREW

BOLT - tube, Serial Range: clamp-bracket

2шт.

11

P4328797

WASHER

SPACER - bolt

2шт.

12

.

RESERVED

1шт.

13

829-1412

NUT,M12, Cl 10.9

Clamp bolt M12, Cl 10

2шт.

14

P37554

UNION

ADAPTER - male, straight

4шт.

15

P6947608

PIPE

TUBE - at boom, right-hand side, center section

1шт.

16

P6947608

PIPE

TUBE - at boom, left-hand side, center section

1шт.

17

P2020333

SHIN

CLAMP - tube, center section

4шт.

18

P741448

BUSHING

INSULATOR - tube clamp

4шт.

19

P433854

SCREW

BOLT - tube, Serial Range: clamp-boom

4шт.

20

P4328797

WASHER

SPACER - clamp bolt

4шт.

21

829-1412

NUT,M12, Cl 10.9

Clamp bolt M12, Cl 10

4шт.

22

P6549160

PIPE

TUBE - at boom, right-hand side, top section

1шт.

23

P6549161

PIPE

TUBE - at boom, left-hand side, top section

1шт.

24

P741448

BUSHING

INSULATOR - tube clamp, see Figure 9-44 for clamps and mounting plate at boom

4шт.

25

P731998

HOSE

- 39.4" (1000 mm) long, to optional attachment

2шт.

26

P1232958

SCREW

BOLT - flange, Serial Range: hose-tube

4шт.

27

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange, hose to tube

4шт.
