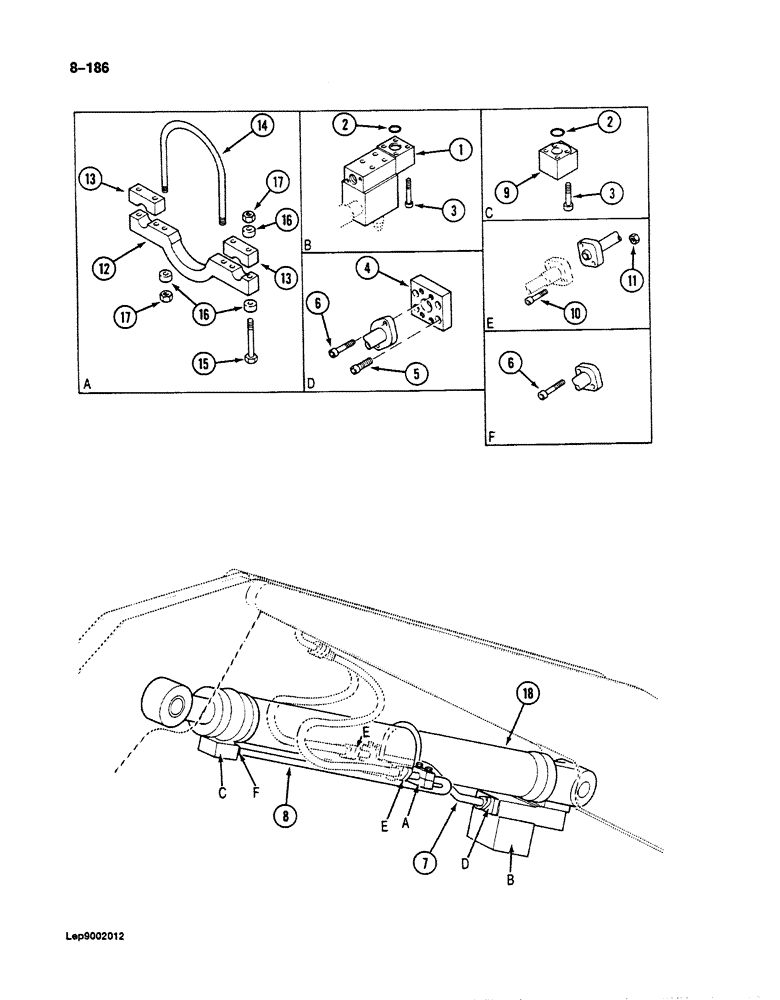

Запчасти Case 125B (8-186) - REHANDLING ARM CYLINDER CIRCUIT, IF USED, TUBES AT CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - cranning, arm cylinder, parts list see Figure 8-268

1шт.

2

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- valve

2шт.

3

P1232977

SCREW

BOLT - valve mounting, 16 mm x 90 mm

8шт.

4

P637325

RESTRICTOR

ADAPTER - tube flange at valve

1шт.

5

P1232971

SCREW

BOLT - adapter to valve, 12 mm x 30 mm, grade 10.9

4шт.

6

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube flange Hex Soc Hd, M10 x 35, 10.9

4шт.

7

P7347651

TUBE - cranning valve

1шт.

8

P5549128

TUBE - arm cylinder

1шт.

9

P3237792

SHIN

BLOCK - head end

1шт.

10

L632924

SCREW

BOLT - hose flange, 10 mm x 55 mm, grade 10.9

4шт.

11

86500689

NUT,M10 x 1.5, Cl 10

4шт.

12

P2346107

SHIN

CLAMP - plate support

1шт.

13

P520303

SHIN

CLAMP -, Serial Range: tube-plate

2шт.

14

P530638

STIRRUP

U-BOLT - clamp

1шт.

15

P133084

SCREW

BOLT - hex, 12 mm x 110 mm, full threaded

4шт.

16

P4328797

WASHER

SPACER - bolt, 8 mm thick

8шт.

17

337475

NUT,M12, Cl 10

- M12, Cl 10

6шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, for correct assembly and components see Figures 8-304

1шт.
