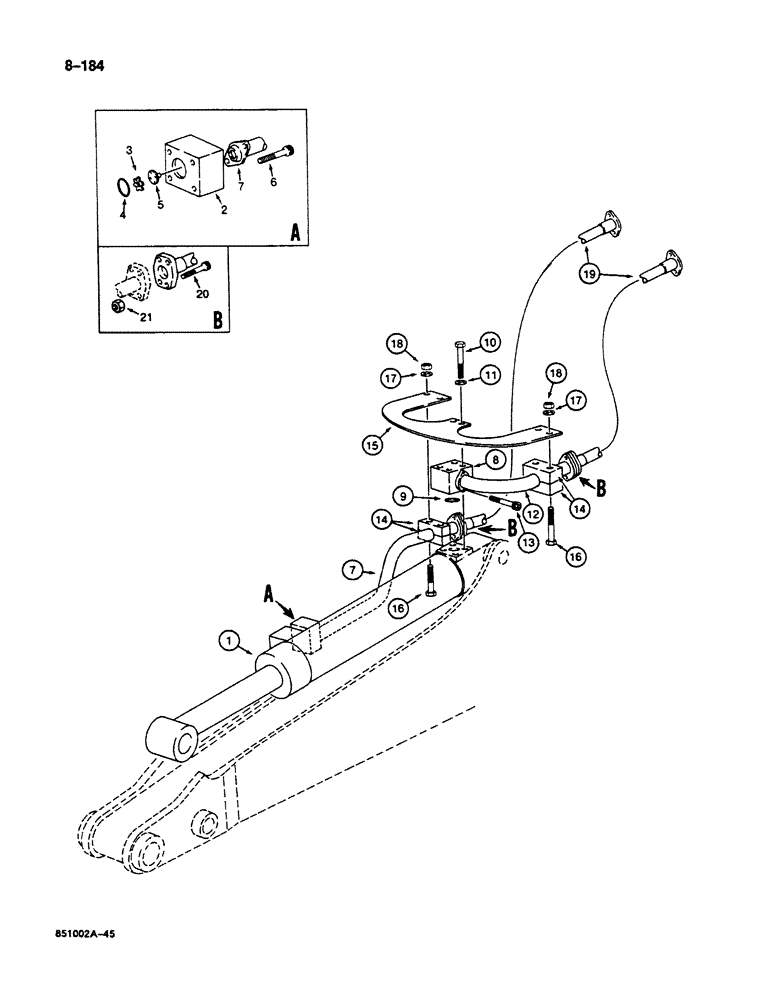

Запчасти Case 125B (8-184) - TOOL CYL. CIRCUIT, TUBES AT CYL., W/ 8 3 " ( 2.5M) OR 10 6" (3.2M) ARM, (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, for correct assembly and components see Figures 8-306 through 8-312

1шт.

2

P5137703

JUNCTION

BLOCK - rod end

1шт.

3

P1137764

VALVE POPPET

VALVE - restrictor

1шт.

4

P1130448

O-RING

- block

1шт.

5

P930134

STOP

- valve

1шт.

6

P1232984

SCREW

BOLT - block and tube mounting

4шт.

7

P8047673

PIPE

TUBE - tool cylinder, rod end

1шт.

8

P3237793

SHIN

BLOCK - tube, head end

1шт.

9

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- tube block

1шт.

10

P532902

SCREW

BOLT - tube block

4шт.

11

P4328798

WASHER

SPACER - bolt

4шт.

12

P6947139

PIPE

TUBE - tool cylinder, head end

1шт.

13

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube to block Hex Skt Hd, M12 x 40, 10.9

2шт.

14

P1820322

SHIN

CLAMP - tube

4шт.

15

P2326794

SUPPORT

BRACKET - clamp mounting

1шт.

16

P33897

SCREW

BOLT -, Serial Range: clamp-bracket

4шт.

17

P4328798

WASHER

SPACER - clamp bolt

4шт.

18

P34168

NUT

- hex, clamp bolt

4шт.

19

P1031988

HOSE

- 63" (1600 mm) long, tool cylinder, used with 8 ft 3 inch (2.5 m) arm

2шт.

19

P1031989

HOSE

- 71" (1800 mm) long, tool cylinder, used with 10 ft 6 inch (3.2 m) arm

2шт.

20

P632934

SCREW

BOLT - hose to cylinder tube

4шт.

21

829-1412

NUT,M12, Cl 10.9

Cylinder tube bolt M12, Cl 10

4шт.
