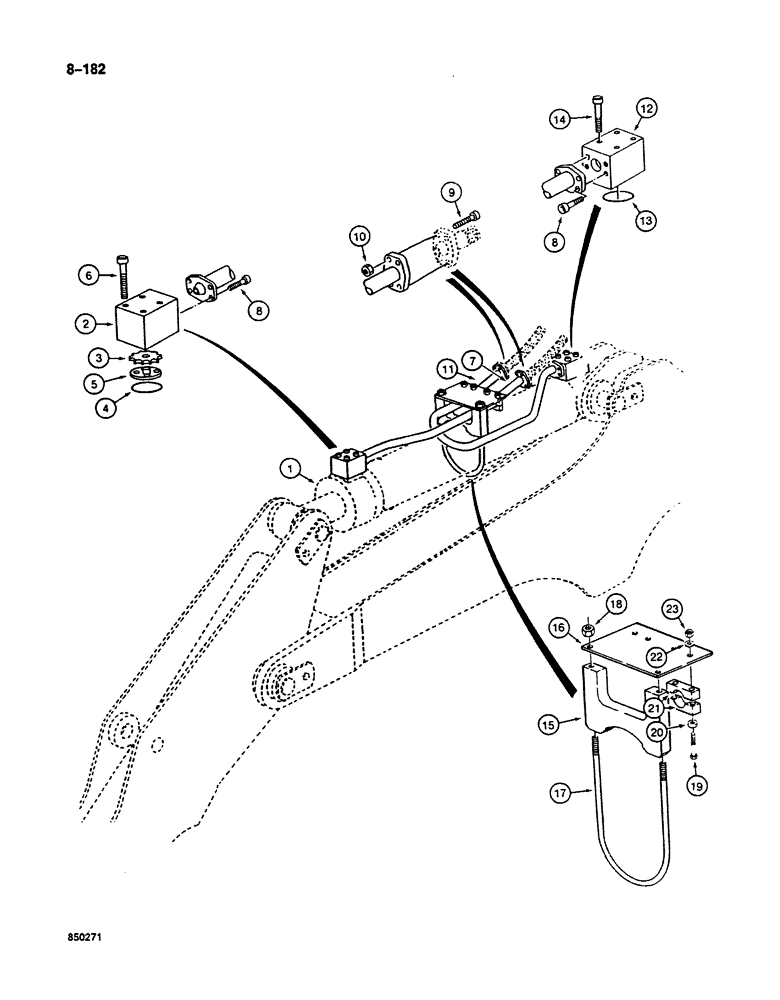

Запчасти Case 125B (8-182) - ARM CYLINDER CIRCUIT, TUBES AT CYLINDER, P.I.N. 74251 THRU 74963, 21801 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, for correct assembly and components see Figures 8-294 through 8-302, for cylinder mounting see Figures 9-44 and 9-46

1шт.

2

P3837704

SHIN

BLOCK - rod end

1шт.

3

P3837751

VALVE POPPET

VALVE - restrictor

1шт.

4

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- block

1шт.

5

P3030161

STOP

- valve

1шт.

6

P32959

SCREW

BOLT - block mounting

4шт.

7

P3049037

PIPE

TUBE - arm cylinder, rod end

1шт.

8

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube to block Hex Skt Hd, M12 x 40, 10.9

4шт.

9

P632934

SCREW

BOLT - flange, Serial Range: hose-tube

4шт.

10

829-1412

NUT,M12, Cl 10.9

4шт.

11

P2549171

PIPE

TUBE - arm cylinder, closed end

1шт.

12

P3237794

SHIN

BLOCK - closed end

1шт.

13

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- block

1шт.

14

P32959

SCREW

BOLT - block mounting

4шт.

15

P1624084

SUPPORT

CLAMP - plate support

1шт.

16

P4223315

LARGE PLATE

PLATE - clamp mounting

1шт.

17

P530650

STIRRUP

U-BOLT - clamp

1шт.

18

P34168

NUT

- hex

2шт.

19

P33845

SCREW

BOLT -, Serial Range: clamp-plate

4шт.

20

P4328797

WASHER

SPACER - bolt, lower

4шт.

21

P520317

SHIN

CLAMP -, Serial Range: tube-plate

4шт.

22

P3528793

WASHER

SPACER - bolt, upper

4шт.

23

337475

NUT,M12, Cl 10

- , Clamp bolt to plate M12, Cl 10

4шт.
