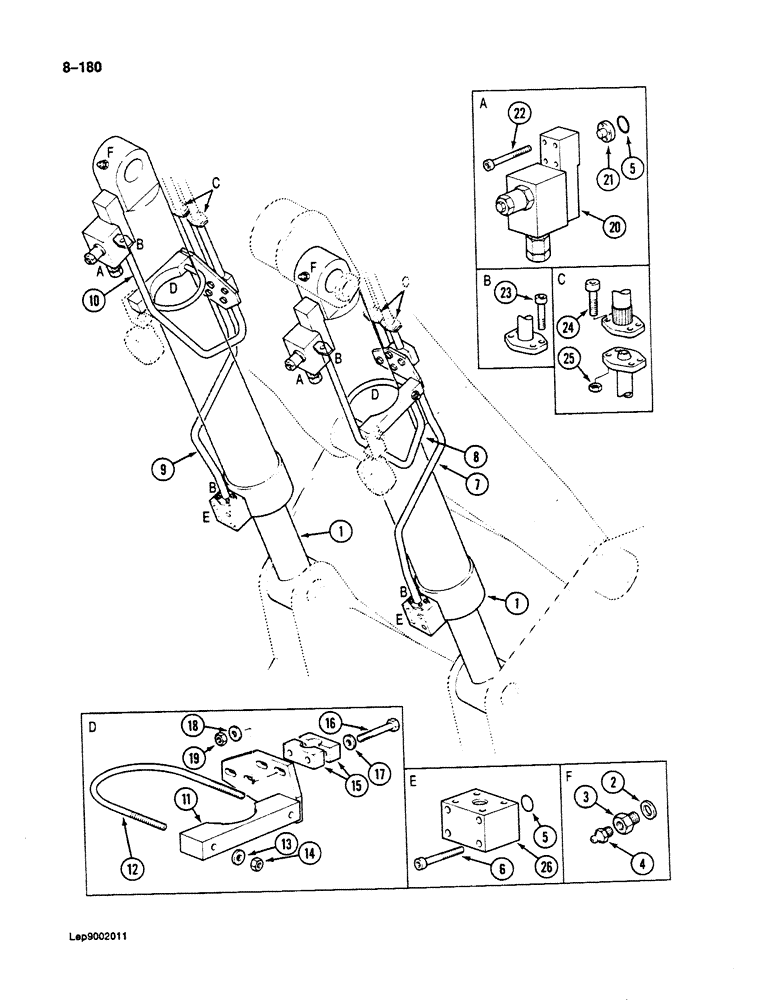

Запчасти Case 125B (8-180) - BOOM CYLINDER CIRCUIT, TUBES AT CYLINDER, UNITS WITH CRANING VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, parts list Figure 8-292

2шт.

2

P45202

WASHER, SEALING

O-RING - adapter

2шт.

3

P837590

END FITTING

ADAPTER - at cylinder

2шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

5

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- craning valve

4шт.

6

P32979

SCREW

BOLT - hex socket head, 14 mm x 80 mm

8шт.

7

P5649146

PIPE

TUBE - to rod end of boom cylinder, left-hand

1шт.

8

P5649148

PIPE

TUBE - cylinder head end, left-hand

1шт.

9

P5649145

PIPE

TUBE - to rod end of boom cylinder, right-hand

1шт.

10

P5649147

PIPE

TUBE - cylinder head end, right-hand

1шт.

11

P4127181

SUPPORT

BRACKET - tube clamp

2шт.

12

P530636

STIRRUP

U-BOLT - tube clamp

2шт.

13

P4328797

WASHER

SPACER - U-bolt

3шт.

14

P34168

NUT

- U-bolt, 12 mm

4шт.

15

P520318

SHIN

CLAMP - tube

8шт.

16

P233832

SCREW

BOLT - hex head, 10 mm x 80 mm, full threaded

8шт.

17

P4328796

WASHER

SPACER - 7 mm thick, bolt

8шт.

18

P3528795

WASHER

SPACER - clamp bolt, 7 mm thick

8шт.

19

100016

NUT,M10 x 1.5, Cl 8

Clamp Bolt M10, Cl 8

8шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - craning, boom cylinder, parts list Figure 8-266

2шт.

21

P930134

STOP

GUIDE - restrictor

2шт.

22

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

BOLT - hex socket head, 14 mm x 70 mm

8шт.

23

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

24

L632924

SCREW

BOLT - hex socket head, 10 mm x 35 mm, class 10.9

8шт.

25

86500689

NUT,M10 x 1.5, Cl 10

8шт.
