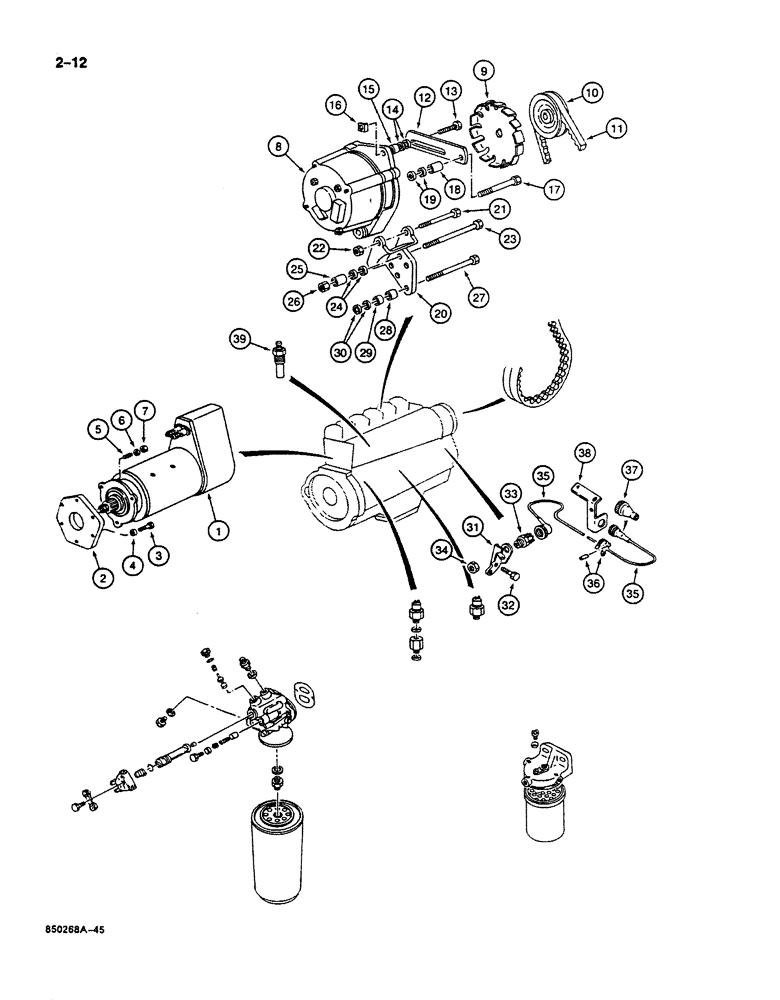

Запчасти Case 125B (2-12) - ENG. FILTERS, ALTERNATOR & STARTER, ADAPTING PARTS TO ENG. PIN 74251-74963, 21801-21868, 26801 & AFT (02) - ENGINE

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-6 and 4-8

1шт.

ref 1, refer to 170b catalog for service. ref 8, oil starvatrion problems

1шт.

2

P39537

DEUTZ PART

PLATE -, Serial Range: starter-engine

1шт.

3

P1633851

BOLT

BOLT - plate mounting

3шт.

4

P745315

DEUTZ PART

WASHER - mounting bolts

3шт.

5

P727790

DEUTZ PART

STUD - starter mounting

3шт.

6

P745315

DEUTZ PART

WASHER - studs

3шт.

7

100016

NUT,M10 x 1.5, Cl 8

Studs M10, Cl 8

3шт.

8

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-10

1шт.

9

P943272

DEUTZ PART

FAN - alternator

1шт.

10

P238557

DEUTZ PART

PULLEY - alternator

1шт.

11

P938740

BELT

- alternator drive, 3/8" (10 mm) wide x 45-1/4" (1150 mm) long

1шт.

12

P6022744

DEUTZ PART

STRAP - alternator adjusting

1шт.

13

P33821

SCREW

BOLT -, Serial Range: strap-alternator

1шт.

14

P1045304

DEUTZ PART

WASHER - alternator bolt

1шт.

15

P28568

DEUTZ PART

SPACER -, Serial Range: strap-alternator

1шт.

16

P1634581

DEUTZ PART

NUT - alternator bolt

1шт.

17

P133849

SCREW

BOLT -, Serial Range: strap-engine

1шт.

18

P1945347

DEUTZ PART

SPACER -, Serial Range: strap-engine

1шт.

19

P1045304

DEUTZ PART

WASHER - at engine

1шт.

20

P2928232

DEUTZ PART

BRACKET - alternator mounting

1шт.

21

P133849

SCREW

BOLT -, Serial Range: bracket-alternator

1шт.

22

P34113

NUT

- alternator bolt

1шт.

23

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

Bracket to engine, upper Hex, M10 x 140, 8.8

1шт.

24

P745313

DEUTZ PART

WASHER - bracket, upper

1шт.

25

P1128548

DEUTZ PART

SPACER - upper bolt

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

Upper Bolt M10, Cl 8

1шт.

27

P133867

BOLT

- bracket to engine, lower

1шт.

28

P545544

DEUTZ PART

SPACER - lower bolt

1шт.

29

P4528730

DEUTZ PART

SPACER - lower bolt

1шт.

30

P1045304

DEUTZ PART

WASHER - lower bolt

1шт.

31

P2626106

DEUTZ PART

LEVER - warning switch

1шт.

32

P1733822

SCREW

BOLT - lever mounting

2шт.

33

P1041840

DEUTZ PART

SWITCH - warning, belt failure

1шт.

34

P2034580

DEUTZ PART

NUT - switch mounting

1шт.

35

P7847202

DEUTZ PART

WIRE - from switch

1шт.

36

P3036908

DEUTZ PART

CLAMP - wire, includes fastener

1шт.

37

P640957

DEUTZ PART

CONNECTOR - electrical, wire from switch

1шт.

38

P4228259

DEUTZ PART

BRACKET - wire

1шт.

39

P641516

IGNITION SWITCH

THERMOSTAT - ENGINE TEMPERATURE WARNING

1шт.
