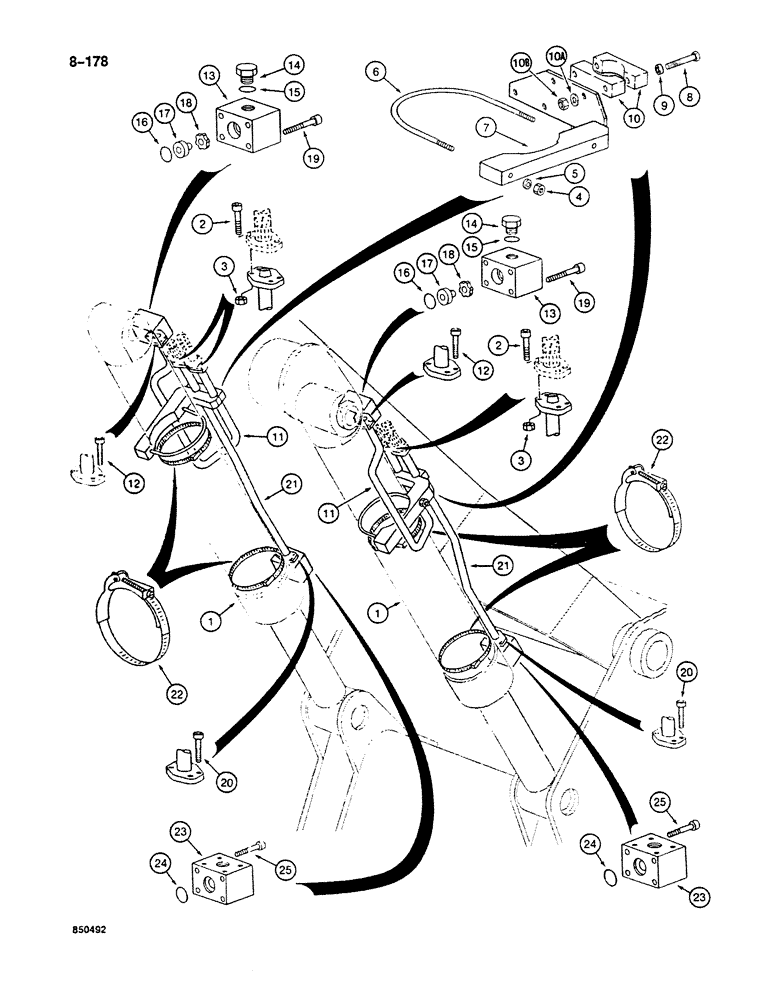

Запчасти Case 125B (8-178) - BOOM CYLINDER CIRCUIT, TUBES AT CYLINDER, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, for correct assembly and components see Figures 8-28 through 8-292

2шт.

2

L632924

SCREW

BOLT - flange

8шт.

3

825-1408

NUT,M8, Cl 8

Flange bolt M8, Cl 8

8шт.

4

337475

NUT,M12, Cl 10

- , U-bolt M12, Cl 10

4шт.

5

P4328797

WASHER

SPACER - U-bolt

4шт.

6

P530636

STIRRUP

U-BOLT - tube clamp

2шт.

7

P4127181

SUPPORT

BRACKET - tube clamp

2шт.

8

P833835

SCREW

BOLT - clamp

8шт.

9

P4328796

WASHER

SPACER - clamp bolt

8шт.

10

P520318

SHIN

CLAMP - tube

8шт.

10a

P3528795

WASHER

SPACER - clamp bolt

8шт.

10b

100016

NUT,M10 x 1.5, Cl 8

Clamp Bolt M10, Cl 8

8шт.

11

P5649149

PIPE

TUBE - cylinder, head end

2шт.

12

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange Hex Soc Hd, M10 x 35, 10.9

4шт.

13

P3837795

SHIN

BLOCK - tube, head end

2шт.

14

P1737452

PLUG

- tube block

4шт.

15

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

4шт.

16

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- tube block

2шт.

17

P930134

STOP

GUIDE - restrictor

2шт.

18

P2337749

VALVE POPPET

RESTRICTOR - tube block

2шт.

19

P32979

SCREW

BOLT - tube block

8шт.

20

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange Hex Soc Hd, M10 x 35, 10.9

4шт.

21

P7447611

PIPE

TUBE - cylinder, rod end

2шт.

22

P836934

COLLAR CLAMP

CLAMP - tube

4шт.

23

P3237783

SHIN

BLOCK - tube, rod end

2шт.

24

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- tube block

2шт.

25

P32979

SCREW

BOLT - tube block

8шт.
