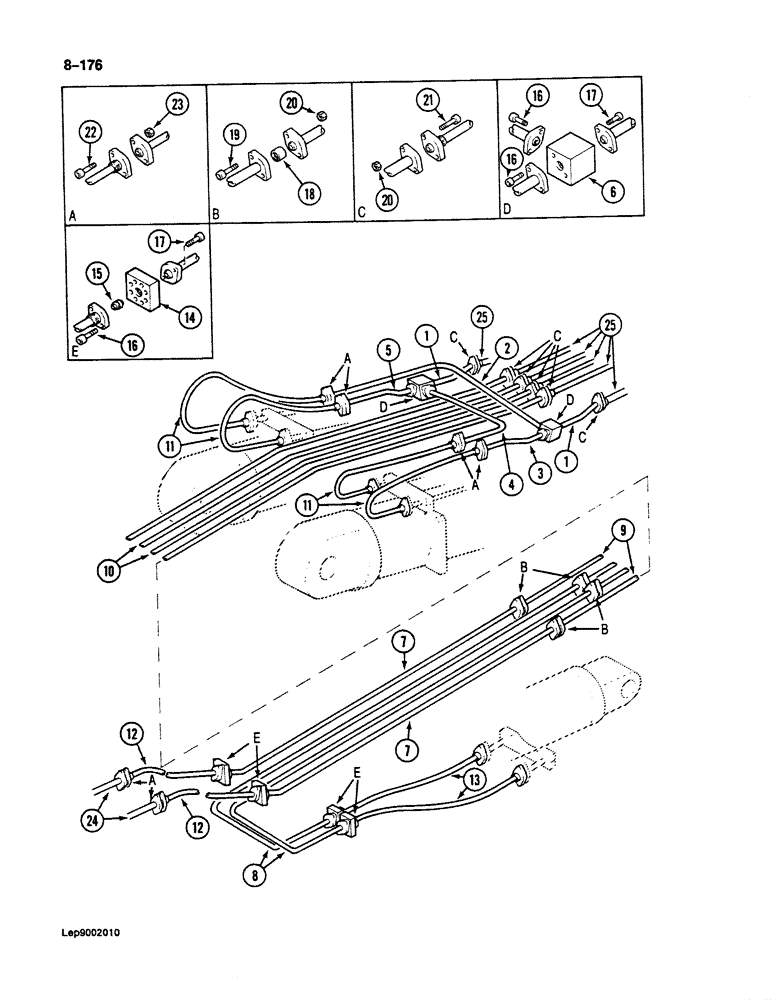

Запчасти Case 125B (8-176) - BOOM, ARM, AND TOOL CYLINDER CIRCUITS, IF USED, TUBES AT REHANDLING BOOM (08) - HYDRAULICS

1

P5847182

PIPE

TUBE - manifold, boom

2шт.

2

P4649182

PIPE

TUBE - right-hand, Serial Range: cylinder-manifold

1шт.

3

4949026

TUBE - left-hand, Serial Range: cylinder-manifold

1шт.

4

P4949025

PIPE

TUBE - left-hand cylinder

1шт.

5

P4949024

PIPE

TUBE - right hand cylinder

1шт.

6

P537240

TEE

MANIFOLD - boom circuit tubes

2шт.

7

P6047167

TUBE - tool cylinder circuit

2шт.

8

P7347652

TUBE - arm cylinder circuit

2шт.

9

P734765

TUBE - tool cylinder circuit

2шт.

10

P7347654

TUBE - arm cylinder circuit

2шт.

11

P1031917

HOSE

- boom cylinder, 25-5/8" (650 mm) long

4шт.

12

P1031990

HOSE

- tool cylinder, 39-3/8" (1000 mm) long

2шт.

13

P1031943

HOSE

- arm cylinder, 31-1/2" (800 mm) long

2шт.

14

P1937728

RESTRICTOR

ADAPTER - hose flange

4шт.

15

P1528828

JUNCTION

ADAPTER - hose, Serial Range: flange-adapter

4шт.

16

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange Hex Soc Hd, M10 x 35, 10.9

16шт.

17

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Flange Hex Skt Hd, M12 x 40, 10.9

12шт.

18

P1737759

JUNCTION

ADAPTER - tube flange

4шт.

19

P532930

SCREW

BOLT - flange, 12 mm x 100 mm

8шт.

20

337475

NUT,M12, Cl 10

- , Flange bolt M12, Cl 10

20шт.

21

P632934

SCREW

BOLT - flange, 12 mm x 65 mm

12шт.

22

L632924

SCREW

BOLT - flange, 10 mm x 55 mm

16шт.

23

86500689

NUT,M10 x 1.5, Cl 10

Flange bolt M10, Cl 10

16шт.

24

REF

INSTRUCTION

HOSE - tool cylinder circuit, see Figure 8-194

1шт.

25

REF

INSTRUCTION

HOSE - attachment circuit, see Figure 8-148

1шт.
