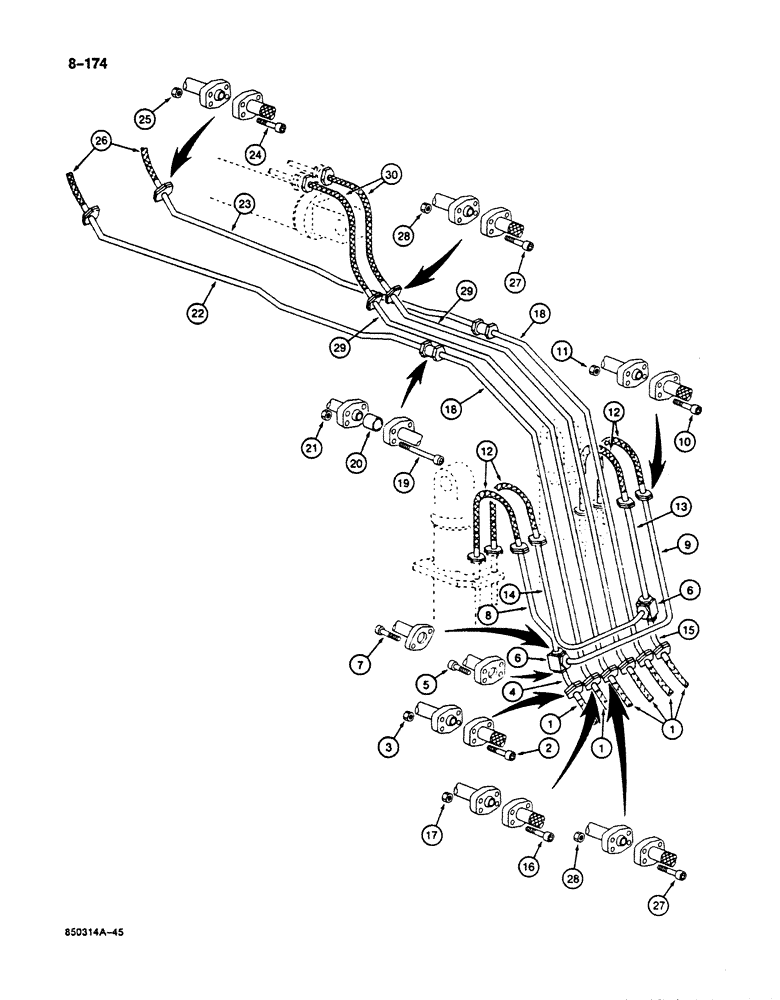

Запчасти Case 125B (8-174) - BOOM, ARM, & TOOL CYLINDER CIRCUITS, TUBES AT BOOM, P.I.N. 74251 - 74963, 21801 - 21868, 26801 & AFT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOSE - attachment circuit, see Figure 8-148 for tubes to attachment control valve, or Figure 8-168 for craning valve circuit
6шт.
2
P632934
SCREW
BOLT - flange, for tubes to boom circuit manifolds
4шт.
3
829-1412
NUT,M12, Cl 10.9
Flange bolt, For tubes to boom circuit manifolds M12, Cl 10
4шт.
4
P5847182
PIPE
TUBE - manifold, boom, left-hand
1шт.
5
J532918
SCREW,Hex Skt, M12 x 40mm, Cl 10.9
Flange, at lower part of boom circuit manifolds Hex Skt Hd, M12 x 40, 10.9
4шт.
6
P537240
TEE
MANIFOLD - boom circuit tubes
2шт.
7
14420331
HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd
Flange, at upper and crossover ports of boom circuit manifolds Hex Soc Hd, M10 x 35, 10.9
8шт.
8
P4949026
PIPE
TUBE - left-hand cylinder, rod end
1шт.
9
P4649182
PIPE
TUBE - right-hand cylinder, rod end
1шт.
10
L632924
SCREW
BOLT - flange, boom, Serial Range: tubes-hoses
8шт.
11
825-1408
NUT,M8, Cl 8
Flange bolt M8, Cl 8
8шт.
12
P1031917
HOSE
- boom cylinder, 25-5/8" (650 mm) long
4шт.
13
P4949024
PIPE
TUBE - right hand cylinder, base end
1шт.
14
P4949025
PIPE
TUBE - left-hand cylinder, base end
1шт.
15
P5847182
PIPE
TUBE - manifold, boom right-hand
1шт.
16
P632934
SCREW
BOLT - flange, hose to tube for tool cylinder lines
4шт.
17
829-1412
NUT,M12, Cl 10.9
Flange bolt, Hose to tube for tool cylinder lines M12, Cl 10
4шт.
18
P4949027
PIPE
TUBE - tool cylinder, lower section
2шт.
19
P532930
SCREW
BOLT - flange, tool cylinder tubes
4шт.
20
P1737759
JUNCTION
ADAPTER - tube flange
2шт.
21
829-1412
NUT,M12, Cl 10.9
Flange bolt, Tool cylinder tubes M12, Cl 10
4шт.
22
P2549169
PIPE
TUBE - tool cylinder, left-hand upper
1шт.
23
P2549168
PIPE
TUBE - tool cylinder, right-hand upper
1шт.
24
P632934
SCREW
BOLT - flange, tool cylinder lines
4шт.
25
829-1412
NUT,M12, Cl 10.9
Flange bolt, Tool cylinder lines M12, Cl 10
4шт.
26
REF
INSTRUCTION
HOSE - tool cylinder, see Figure 8-184 for hose options and completion of tool cylinder circuit
2шт.
27
P632934
SCREW
BOLT - flange, tubes to arm cylinder
8шт.
28
829-1412
NUT,M12, Cl 10.9
Flange bolt, Tubes to arm cylinder M12, Cl 10
8шт.
29
P4649183
PIPE
TUBE - arm cylinder
2шт.
30
P5431911
HOSE
- arm cylinder, 39-3/8" (1000 mm) long
2шт.
Выбрано товаров: 30
