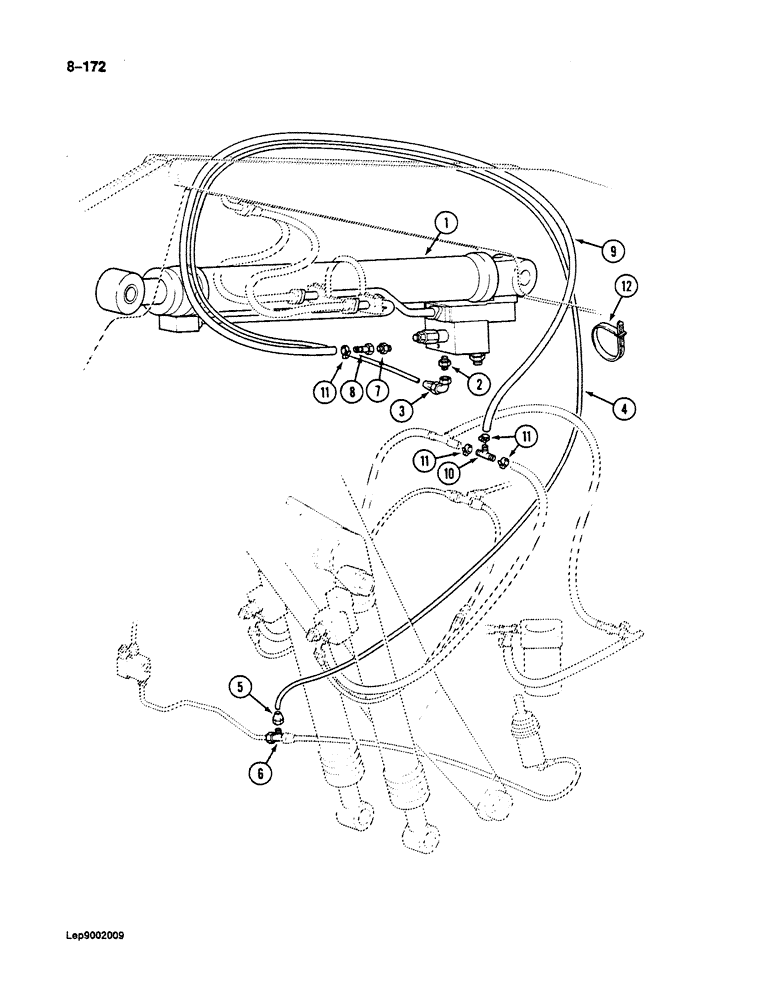

Запчасти Case 125B (8-172) - CRANING VALVE HYDRAULIC CIRCUIT, IF USED, REHANDLING ARM CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER AND VALVE ASSEMBLY - arm, see Figure 8-186 for craning valve circuit used with arm cylinder

1шт.

2

P4037571

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

O-RING - adapter

1шт.

3

P4037590

END FITTING

ELBOW - 90 degree

1шт.

4

REF

INSTRUCTION

HOSE - 493" (12500 mm) long, tee to craning valve at arm cylinder, cut from P1103640, Includes: Ref. 5.

1шт.

5

P4037588

END FITTING

ADAPTER - straight, hose

1шт.

6

P937275

TEE

- male

1шт.

7

P3037504

UNION

ADAPTER - straight

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

8

P3837686

PIPE

TUBE - at manifold tee

1шт.

9

REF

INSTRUCTION

HOSE - 237" (6000 mm) long, return hoses, cut from P31901

1шт.

10

P3050114

PIPE

TEE- return hoses

1шт.

11

P36998

COLLAR CLAMP

CLAMP - hose

4шт.

12

P51946

CLAMP

STRAP - tie, hoses

1шт.
