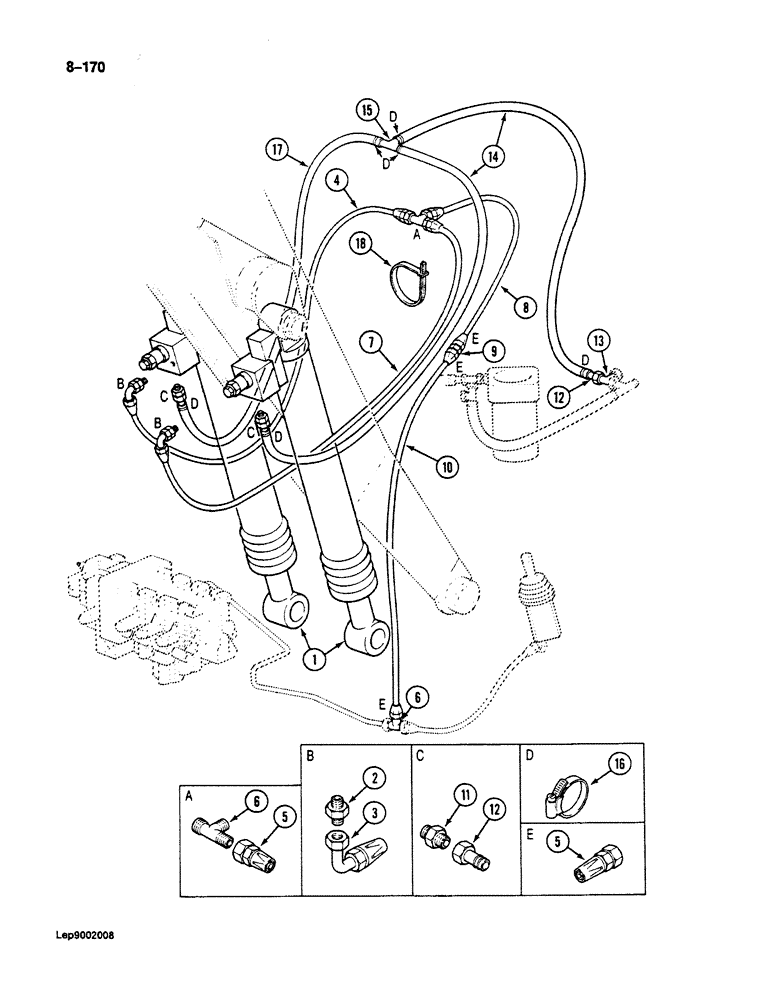

Запчасти Case 125B (8-170) - CRANING VALVE HYDRAULIC CIRCUIT, IF USED, BOOM CYLINDERS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER AND VALVE ASSEMBLY - boom, see Figure 8-180 for craning valve circuit used with arm cylinder

1шт.

2

P4037571

UNION

ADAPTER - straight, Includes: Ref. 3

2шт.

P7046042

SEAL

O-RING - adapter

1шт.

3

P4037590

END FITTING

ELBOW - 90 degree

2шт.

4

REF

INSTRUCTION

HOSE - 124-3/16" (3150 mm) long, tee to craning valve at boom cylinder, cut from P1103640

1шт.

5

P4037588

END FITTING

ADAPTER - straight, hose

6шт.

6

P937275

TEE

- male

2шт.

7

REF

INSTRUCTION

HOSE - 124-3/16" (3150 mm) long, tee to craning valve at boom cylinder, cut from P1103640

1шт.

8

REF

INSTRUCTION

HOSE - 124-3/16" (3150 mm) long, tee to control circuit hose, cut from P1103640

1шт.

9

P3237535

UNION

ADAPTER - straight, hose

1шт.

10

REF

INSTRUCTION

HOSE - 163-3/8" (4000 mm) long, tee to control circuit hose, cut from P1103640

1шт.

11

P3037504

UNION

ADAPTER - straight

2шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

12

P3837686

PIPE

TUBE - at manifold tee

3шт.

13

P37233

TEE

- return hoses

1шт.

14

REF

INSTRUCTION

HOSE - 124-3/16" (3150 mm) long, return hoses, cut from P31901

2шт.

15

P3050114

PIPE

TEE - return hoses

1шт.

16

P36998

COLLAR CLAMP

CLAMP - hose

6шт.

17

REF

INSTRUCTION

HOSE - 78-3/4" (2000 mm) long, craning valve at right-hand boom cylinder to tee, cut from 31901

1шт.

18

P51946

CLAMP

STRAP - tie, hoses

1шт.
